SELECT A DIAGRAM
1 - Control Panel & Cooktop
2 - Body Parts

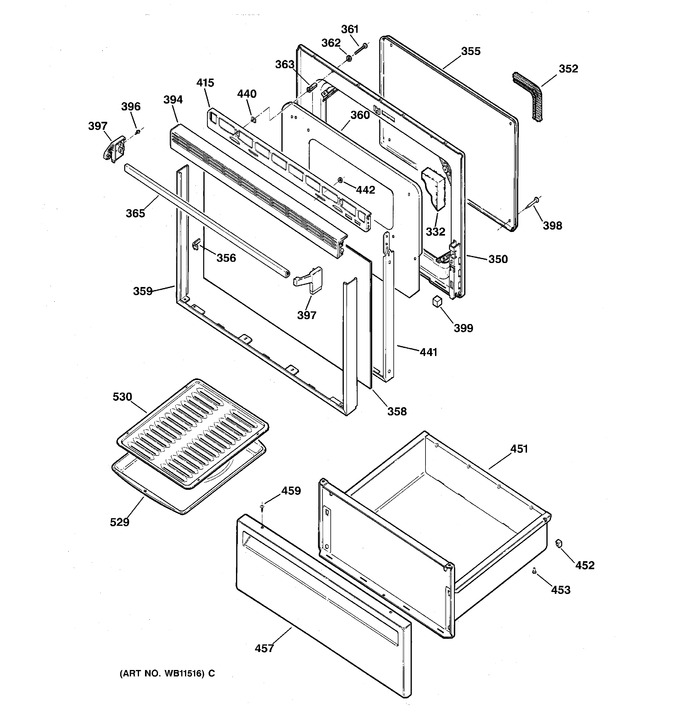

3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 332 | WB2X8109 | Door Insulation |
|
- | |||||
| 350 | WB55X5361 | Inner Panel |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 355 | WB55X5367 | Liner Asm Weld Door |
|
- | |||||
| 356 | WB2X6574 | Clip Trim |
|
- | |||||
| 358 | WB36X5689 | Door Glass White |
|
- | |||||
| 358 | WB2X7924 | Reflect Foil |
|
- | |||||
| 359 | WB7X7129 | Trim Door |
|
- | |||||
| 360 | WB55X378 | Guard Insulation |
|
- | |||||
| 361 | WB1X5731 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Contoured |
|
- | |||||
| 363 | WB2X3030 | Spacer Door |
|
- | |||||
| 365 | WB15X5177 | Handle Door |
|
- | |||||
| 394 | WB7X7105 | Trim Top Door Gray |
|
- | |||||
| 396 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 397 | WB7X7121 | End Cap Lf-handle |
|
- | |||||
| 397 | WB7X7122 | End Cap Rh-handle |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 415 | WB2X7608 | Brace Top |
|
- | |||||
| 440 | WB1X5736 | Speednut |
|
- | |||||
| 441 | WB2X8111 | Brace Side R |
|
- | |||||
| 441 | WB2X8110 | Brace Side L |
|
- | |||||
| 442 | WB1X5743 | Speednut |
|
- | |||||
| 451 | WB58X5015 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 457 | WB56X7069 | Panel Drawer Wh |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | 4396923 | Broiler Pan Rack (Replaces: WB48X5093) |
|
Immediately | $ 60.71 |
