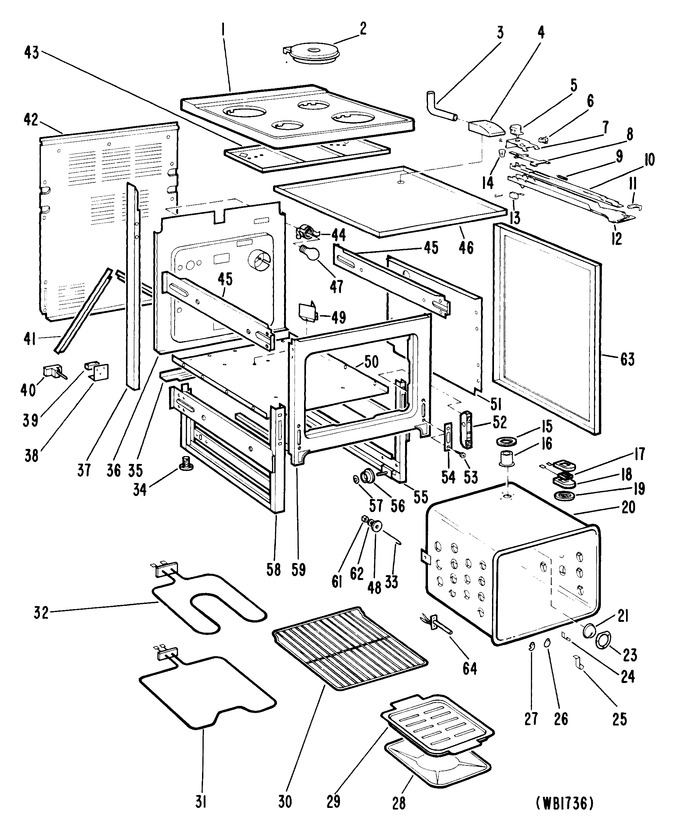

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5368 | Cooktop-ad |
|
- | |||||
| 1 | WB62X5367 | Cooktop-wh |
|
- | |||||
| 2 | WB30X246 | Element 7" Auto |
|
- | |||||
| 2 | WB30X249 | Element 7" |
|
- | |||||
| 2 | WB30X250 | Element 5.7" |
|
- | |||||
| 3 | WB38X87 | Duct Vent |
|
- | |||||
| 4 | WB38X88 | Vent-transfer |
|
- | |||||
| 5 | WB24X197 | Solenoid |
|
- | |||||
| 6 | WB24X183 | Switch-latch |
|
- | |||||
| 7 | WB2X9995 | Bracket |
|
- | |||||
| 8 | WB2X7882 | Lever-latch |
|
- | |||||
| 9 | WB2X7883 | Spring-lock |
|
- | |||||
| 10 | WB2X7884 | Channel-lock |
|
- | |||||
| 11 | WB2X7885 | Pawl-lock |
|
- | |||||
| 12 | WB2X7886 | Channel-latch |
|
- | |||||
| 13 | WB24X5235 | Switch-solenoid |
|
- | |||||
| 14 | WB9X148 | Spring-olunger |
|
- | |||||
| 15 | WB38X90 | Plate-vent |
|
- | |||||
| 16 | WB38X89 | Tube-vent |
|
- | |||||
| 17 | WB29X79 | Heater-smoke Elimin |
|
- | |||||
| 18 | WB29X80 | Housing |
|
- | |||||
| 19 | WB29X81 | Screen-smoke Elimin |
|
- | |||||
| 20 | WB53X271 | Oven Liner |
|
- | |||||
| 21 | WB36X728 | Lens-oven Light |
|
- | |||||
| 23 | WB2X4902 | Ring-retaining |
|
- | |||||
| 24 | WB1X5784 | Clip-control Tube |
|
- | |||||
| 25 | WB2X3165 | Hanger-tls |
|
- | |||||
| 26 | WB2X3165 | Plate-tls |
|
- | |||||
| 27 | WB2X4906 | Plate-rotisserie Cover |
|
- | |||||
| 28 | WB49X588 | Broiler Pan |
|
- | |||||
| 29 | WB49X589 | Broiler Pan Rack |
|
- | |||||
| 30 | WB48X196 | Rack-flat |
|
- | |||||
| 30 | WB48X197 | Rack-offset |
|
- | |||||
| 31 | WB44X228 | Bake Element |
|
- | |||||
| 32 | WB44X229 | Broil Element |
|
- | |||||
| 33 | WB1X990 | Hookbolt |
|
- | |||||
| 34 | WB1X991 | Leveling Leg |
|
- | |||||
| 35 | WB2X4913 | Wire Guard-bottom |
|
- | |||||
| 36 | WB63X5206 | Main Back |
|
- | |||||
| 37 | WB2X4910 | Post-corner |
|
- | |||||
| 38 | WB2X4907 | Bracket-power Cord |
|
- | |||||
| 39 | WB17X199 | Block Main-terminal |
|
- | |||||
| 40 | WB2X3163 | Gasket-tls |
|
$ 22.50 | |||||
| 40 | WB24X388 | Switch Temp-limit |
|
- | |||||
| 41 | WB2X4909 | Brace |
|
- | |||||
| 42 | WB2X4914 | Cover-access |
|
- | |||||
| 42 | WB63X5207 | Cover-rear |
|
- | |||||
| 43 | WB2X4915 | Support Cooktop |
|
- | |||||
| 43 | WB2X7887 | Support Cooktop |
|
- | |||||
| 44 | WB8X265 | Socket-oven Lamp |
|
- | |||||
| 44 | WB2X4916 | Oven Lamp Sleeve |
|
- | |||||
| 45 | WB2X4917 | Channel-brace |
|
- | |||||
| 46 | WB63X267 | Bottom Burner Box |
|
- | |||||
| 47 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 48 | WB1X993 | Lockwasher |
|
- | |||||
| 49 | WB2X4918 | Support Oven |
|
- | |||||
| 50 | WB63X268 | Bottom Insulating |
|
- | |||||
| 51 | WB63X269 | Sheild-insulation |
|
- | |||||
| 52 | WB14X80 | Receiver-insulation |
|
- | |||||
| 53 | WB1X994 | Screw |
|
- | |||||
| 54 | WB7X1511 | Plate-trim |
|
- | |||||
| 55 | WB63X270 | Channel Base-rh |
|
- | |||||
| 56 | WB39X63 | Wheel Drawer Track |
|
- | |||||
| 57 | WB1X999 | Speednut |
|
- | |||||
| 58 | WB63X271 | Channel Base-lh |
|
- | |||||
| 59 | WB63X5208 | Front Frame |
|
- | |||||
| 61 | WB1X996 | Nut Hook Bolt |
|
- | |||||
| 62 | WB1X995 | Lockwasher |
|
- | |||||
| 63 | WB63X263 | Side Panel White |
|
- | |||||
| 63 | WB63X264 | Side Panel Almond |
|
- | |||||
| 64 | WB21X158 | Oven Sensor |
|
- | |||||
| 121 | WB1X1007 | Washer |
|
- | |||||
| 122 | WB2X4928 | Base-handle |
|
- | |||||
| 125 | WB55X624 | Glass-black |
|
- | |||||
| 32767 | 49-4796 | Manual Users |
|
- | |||||
| 32767 | 31-0626 | Install Instr |
|
- |
