SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


4 - Component Group

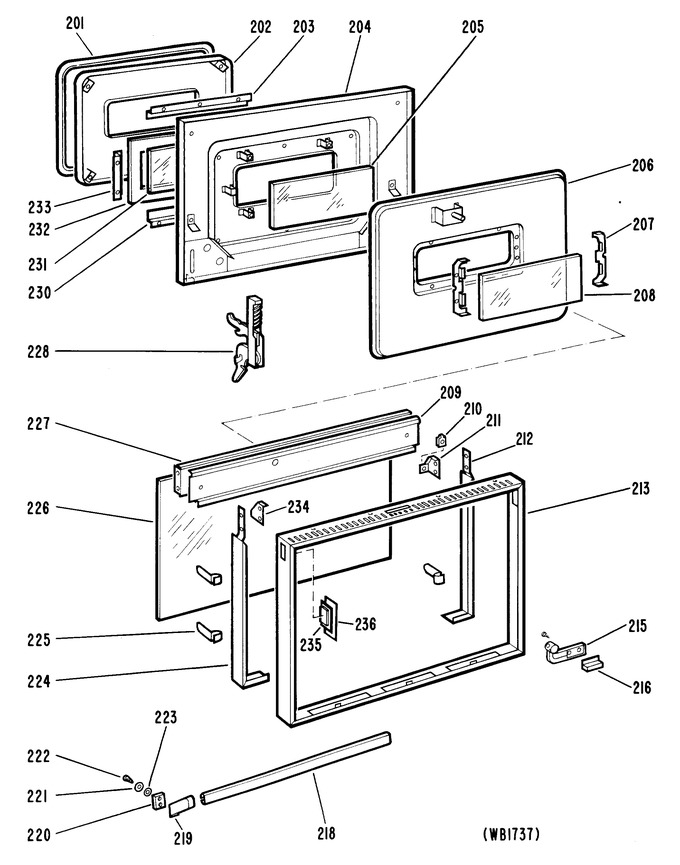

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
201	WB2X120		Gasket Seal		Appelez-nous	-
201	WB2X119		Gasket		Appelez-nous	-
202	WB55X5344		Muffle		Appelez-nous	-
203	WB2X4919		Bracket Top		Appelez-nous	-
204	WB55X621		Shield		Appelez-nous	-
205	WB55X622		Glass		Appelez-nous	-
205	WB2X4934		Pad-glass		Appelez-nous	-
206	WB1X1002		Screw Retainer Liner		Appelez-nous	-
206	WB55X623		Retainer-panel		Appelez-nous	-
207	WB2X7888		Window Bracket		Appelez-nous	-
207	WB55X626		Glass-inner		Appelez-nous	-
208	WB55X622		Door Glass		Appelez-nous	-
209	WB2X4921		Plate-aeration		Appelez-nous	-
210	WB2X4922		Clip		Appelez-nous	-
211	WB2X4923		Plate-mtg Rh		Appelez-nous	-
212	WB2X4924		Support Side Rh		Appelez-nous	-
213	WB55X625		Frame		Appelez-nous	-
215	WB2X4925		Base-handle		Appelez-nous	-
216	WB15X244		Handle Latch		Appelez-nous	-
218	WB15X243		Handle		Appelez-nous	-
219	WB2X7890		End Cap Rh		Appelez-nous	-
219	WB2X7889		End Cap Lh		Appelez-nous	-
221	WB1X5785		Lockwasher		Appelez-nous	-
222	WB1X5786		Screw		Appelez-nous	-
223	WB1X1007		Washer		Appelez-nous	-
224	WB2X4929		Support Side Lh		Appelez-nous	-
225	WB2X6574		Clip		Appelez-nous	-
226	WB55X624		Glass-black		Appelez-nous	-
227	WB2X4931		Support-top		Appelez-nous	-
228	WB14X81		Hinge		Appelez-nous	-
230	WB2X4919		Bracket-bottom		Appelez-nous	-
231	WB55X626		Glass-inner		Appelez-nous	-
232	WB2X4934		Pad Glass		Appelez-nous	-
233	WB2X4935		Bracket-side		Appelez-nous	-
234	WB2X4936		Plate Mtg Lh		Appelez-nous	-
235	WB2X6573		Pad Trim		Appelez-nous	-
236	WB2X4938		Plate Back-up		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
