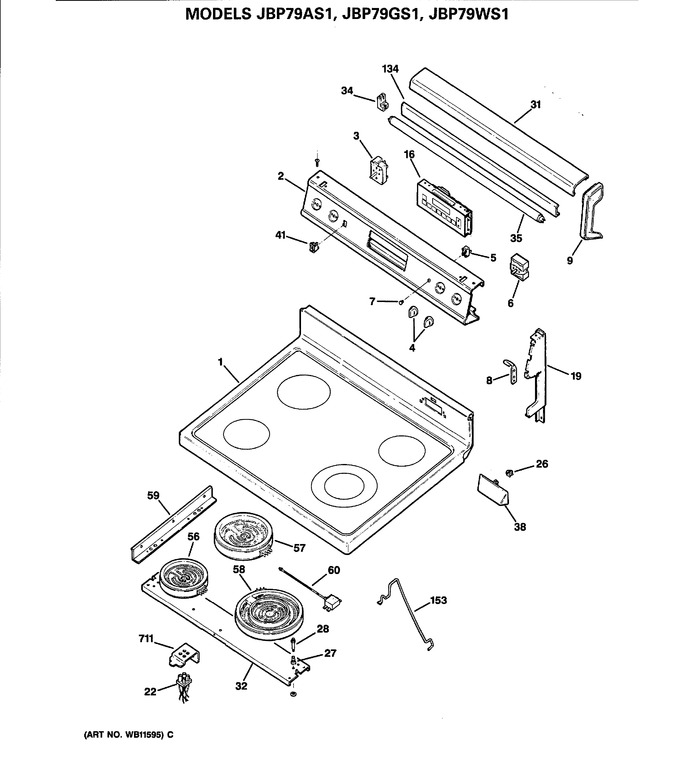

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5424 | Rangetop & Glass Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5816 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 6 | WB24X5315 | Switch Infinite Control |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7233 | Cap End Lamp Rh |
|
- | |||||
| 9 | WB7X7234 | Cap End Lamp Lh |
|
- | |||||
| 10 | WB1X5899 | Screw Ad Trim & Brkt |
|
- | |||||
| 16 | WB27X5541 | Timer-erc2 |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 22 | WB8X5110 | Indicator Hot Surface |
|
- | |||||
| 24 | WB2X8316 | Insulation Vent Tube |
|
- | |||||
| 26 | WB2X8312 | Clip Vent Trim |
|
- | |||||
| 27 | WB9X5119 | Spring Heater Mtg |
|
- | |||||
| 28 | WB2X8377 | Stud Heater Mount |
|
- | |||||
| 31 | WB7X7236 | Lamp Cover Ad |
|
- | |||||
| 32 | WB2X8318 | Support Radiant Heater |
|
- | |||||
| 34 | WB8X5098 | "f" Lamp Socket Rh & Lh |
|
- | |||||
| 36 | WB24X5320 | Switch Lamp |
|
- | |||||
| 38 | WB7X7218 | Vent Trim & Clip Asm |
|
- | |||||
| 41 | WB24X5318 | Switch |
|
- | |||||
| 56 | WB30X5110 | Surface Element |
|
- | |||||
| 57 | WB30X5111 | Surface Element |
|
- | |||||
| 58 | WB23M10 | Surface Element 2400w |
|
- | |||||
| 59 | WB2X8321 | Brace Body |
|
- | |||||
| 108 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 134 | WB7K40 | Shield Lamp |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 303 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 312 | WB1X119 | Washer Contoured |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 684 | WZ04X0417 | Screw |
|
- | |||||
| 711 | WB2X8307 | Bracket Hot Light |
|
- | |||||
| 716 | WB38X5068 | Orifice Vent |
|
- | |||||
| 717 | WB38X5069 | Plate Vent |
|
- | |||||
| 741 | OBT LOCAL | Fustat 15amp Type S |
|
- | |||||
| 741 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 32767 | 49-8457 | Tape Vcr |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | WB2X8273 | Cleaner Glass |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | 31-1445 | Pm Manual Mini |
|
- | |||||
| 32767 | WB6K5036 | Razor Blade Scraper |
|
- |
