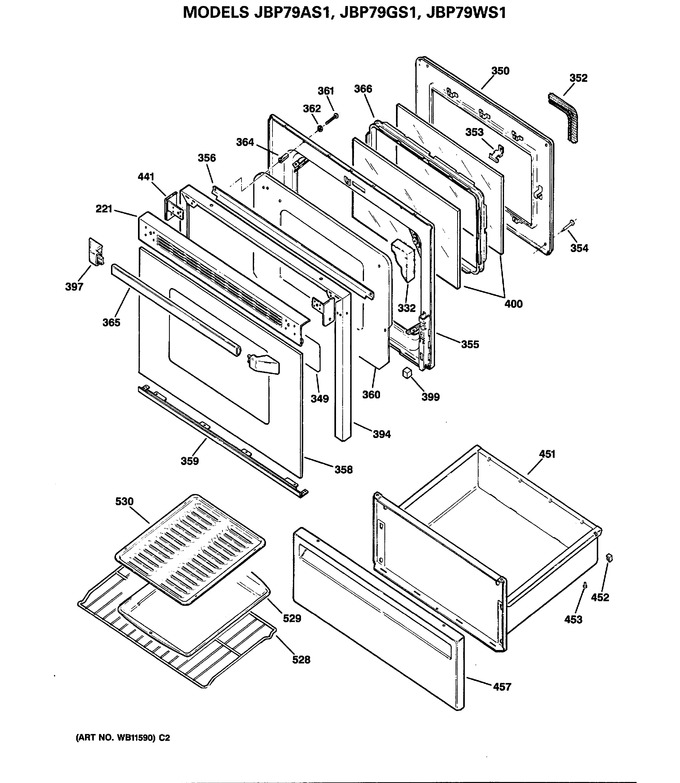

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 221 | WB7X7232 | Trim Vent |
|
- | |||||
| 332 | WB2X8251 | Insulation |
|
- | |||||
| 349 | WB49X5534 | Reflector |
|
- | |||||
| 350 | WB55X5377 | Liner Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 353 | WB2X8320 | Clip Window |
|
- | |||||
| 355 | WB55X5381 | Liner Asm Door |
|
- | |||||
| 358 | WB36X5714 | Crystal F.g. |
|
- | |||||
| 359 | WB7X7196 | Trim Bottom |
|
- | |||||
| 360 | WB55X5380 | Guard Insulation |
|
- | |||||
| 365 | WB15X5210 | Handle Soft Touch |
|
- | |||||
| 366 | WB2X8319 | Window Spacer |
|
- | |||||
| 394 | WB7X7197 | Trim Door |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 400 | WB36X5712 | Crystal Window |
|
- | |||||
| 441 | WB7X7229 | Cap End Door |
|
- | |||||
| 441 | WB7X7230 | Cap End Door |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 457 | WB56X7069 | Panel Drawer Wh |
|
- | |||||
| 457 | WB56X7032 | Panel Drawer Ad |
|
- | |||||
| 528 | WB48X5099 | Rack Oven |
|
$ 90.78 | |||||
| 529 | WB49X5547 | Pan Broiler |
|
- | |||||
| 530 | 4396923 | Broiler Pan Rack (Replaces: WB48X5093) |
|
Immediately | $ 60.71 |
