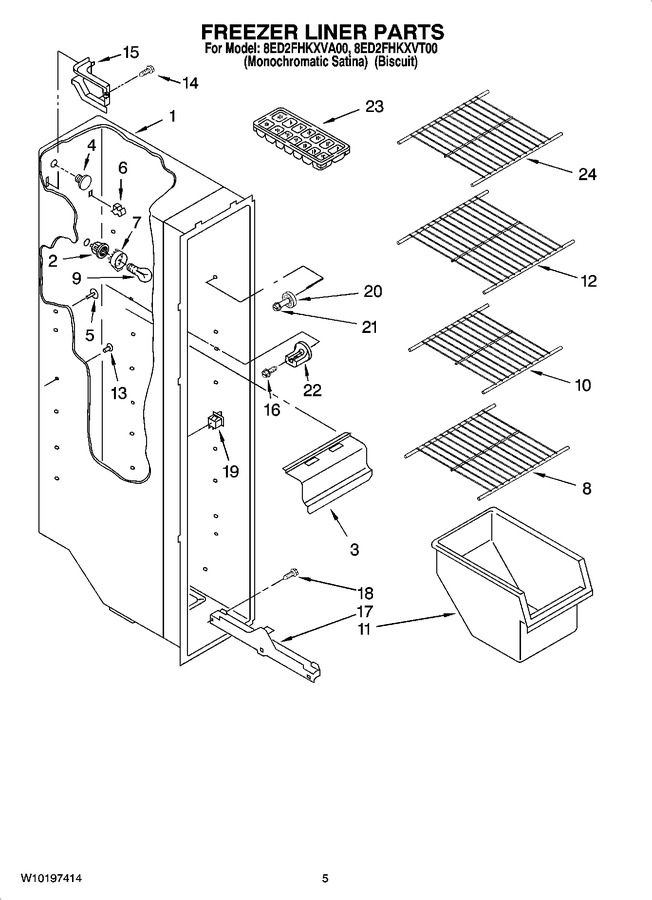

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 101.10 | |||||
| 3 | WP2155595 | Light Lens (Replaces: 2155595) |
|
$ 84.15 | |||||
| 4 | 2223173 | Plug, Fill Tube |
|
$ 8.80 | |||||
| 5 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 7.65 | |||||
| 6 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.42 | |||||
| 7 | 2167012 | Shroud |
|
- | |||||
| 8 | WPW10318949 | Shelf (2) (Replaces: 2309631) |
|
$ 77.11 | |||||
| 9 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 10 | WPW10318951 | Shelf (Replaces: 2309632) |
|
$ 81.68 | |||||
| 11 | WP2309758 | Freezer Bin (Replaces: 2309758) |
|
Immediately | $ 124.47 | ||||
| 12 | WPW10318952 | Shelf (Replaces: 2309633) |
|
Immediately | $ 88.08 | ||||
| 13 | 2176134 | Grommet |
|
$ 5.83 | |||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 15 | 2160912 | Wiring Cover |
|
- | |||||
| 16 | W10142289 | Screw (9) (Replaces: 3400893) |
|
$ 9.15 | |||||
| 17 | 1115383 | Slide, Bin (left Side) |
|
- | |||||
| 17 | W10845583 | Slide, Bin (right Side) (Replaces: 1119293) |
|
$ 123.92 | |||||
| 18 | 718257 | Screw (Replaces: 489100) |
|
- | |||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 20 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 10.35 | |||||
| 21 | WP3400806 | Screw (9) (Replaces: 8281158) |
|
$ 7.71 | |||||
| 22 | 2196207 | Stud, Rear (9) |
|
$ 7.61 | |||||
| 23 | WP841180A | Ice Tray (2) (Replaces: 841180) |
|
Immediately | $ 45.56 | ||||
| 24 | WPW10318953 | Shelf, Wire (Replaces: 2309634) |
|
Immediately | $ 83.58 |
