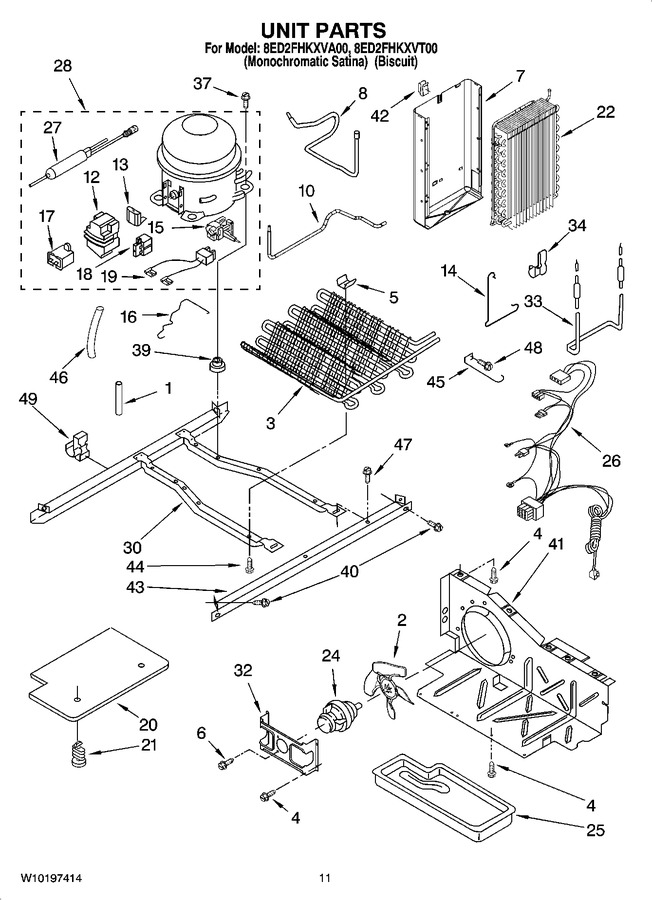

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10132427		Bushing		Appelez-nous	-
2	2190685		Fan, Blade				$ 52.00
3	2324712		Condenser Assembly   (Replaces: W10121487)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
6	681390		Screw   (Replaces: 489099)				$ 13.06
7	2304288		Heat Shield And Drain Pan		Appelez-nous	-
8	2220642		Tube Suction				$ 221.59
10	2261599		Tube, Condenser To Heat Loop				$ 232.07
12	WP2162358		Cover Service Only)   (Replaces: 4387731)				$ 90.75
13	WP2187145		Overload (service Only)   (Replaces: 2187145)				$ 146.59
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	WP2188831		Start Device, Combination (start Relay And Overload) For Production Compressor   (Replaces: 2188831)				$ 177.48
16	2255009		Clip, Retaining		Appelez-nous	-
17	WP65889-4		Capacitor (production)   (Replaces: 2255130)			Immediately	$ 61.14
17	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
18	2183454		Relay (service Only)		Appelez-nous	-
19	WP2172890		Wire, Capacitor (service Only)   (Replaces: 4387765)				$ 8.10
20	2182057		Unit Cover, Bottom				$ 72.28
21	489396		Clip				$ 10.72
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
24	W10822259		Motor, Fan   (Replaces: 2188537)			Immediately	$ 221.30
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2310063		Harness, Unit		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2319825)			Immediately	$ 52.57
28	W10309990		Compressor (includes Items 12, 13, 17, 18, 19, 27 & 39) (also Order 876765 Tube Kit)   (Replaces: 2255011)			Immediately	$ 632.81
30	2304903		Unit Mounting Frame   (Replaces: 2160501)				$ 233.03
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
34	2161324		Clip		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat		Appelez-nous	-
43	2149718		Unit Mounting Rail		Appelez-nous	-
44	W11544659		Screw   (Replaces: 8281232)				$ 13.67
45	1105612		Guard, Fan				$ 40.58
46	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
47	WP489427		Screw   (Replaces: 489427)				$ 7.47
48	WP489478		Screw   (Replaces: 489478)				$ 7.75
49	2208280		Clip, Wire & Tube		Appelez-nous	-
	978026		Valve, Access (5/16``)			Immediately	$ 128.09
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
