1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:

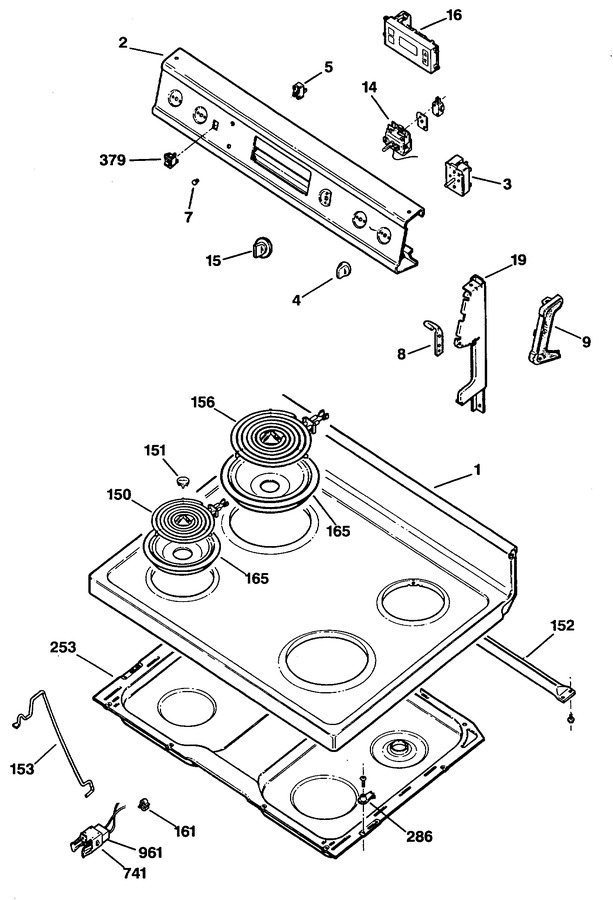

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5427 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5428 | Cooktop Ad |
|
- | |||||
| 2 | WB36X5742 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB32X5095 | Switch Infinite Control |
|
- | |||||
| 3 | WB23X5092 | Sw Inf. Control |
|
- | |||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 14 | WB20X5070 | Thermostat Top Heat |
|
- | |||||
| 15 | WB3X5825 | Knob Asm |
|
- | |||||
| 16 | WB27X5559 | Clock Tod Ii |
|
- | |||||
| 17 | WB27X5560 | Faceplate (overlay) |
|
- | |||||
| 19 | WB7X7162 | Plate End Ad |
|
- | |||||
| 19 | WB7X7163 | Plate End Wh |
|
- | |||||
| 19 | WB7X7161 | Plate End Wh |
|
- | |||||
| 19 | WB7X7164 | Plate End Ad |
|
- | |||||
| 150 | WG02F05372 | 6" P.i. S/u (Replaces: WB30M1) |
|
Immediately | $ 68.23 | ||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30M2 | 8" P.i. S/u |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WB32X5083 | Bowl Burner 6" |
|
- | |||||
| 165 | WG02L01430 | Bowl Burner 8" (Replaces: WB32X5085) |
|
Immediately | $ 26.09 | ||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 272 | WB17X5123 | Block Terminal |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 354 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 379 | WB24X5290 | Switch |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 961 | WB2X1185 | Clip |
|
- | |||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 32767 | 31-1423 | Pm Manual |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 49-8486 | Manual Use & Care |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- |
