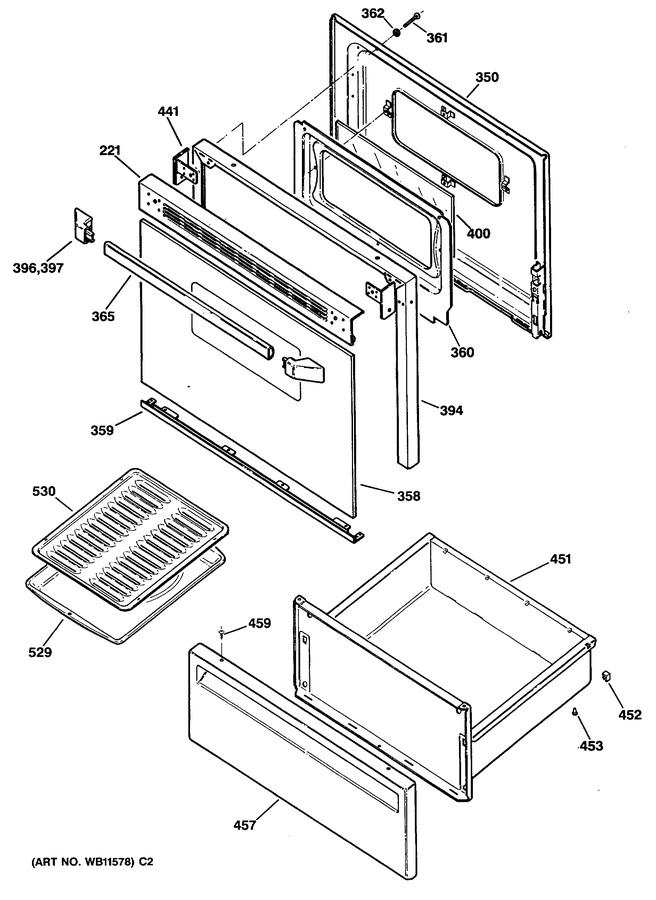

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 221 | WB7X7186 | Trim Vent |
|
- | |||||
| 350 | WB55X5373 | Door Liner |
|
- | |||||
| 358 | WB36X5691 | Glass Door |
|
- | |||||
| 359 | WB7X7195 | Trim Bottom |
|
- | |||||
| 360 | WB49X5522 | Guard Insulation |
|
- | |||||
| 362 | WB1X119 | Washer Contoured |
|
- | |||||
| 365 | WB15X5203 | Handle |
|
- | |||||
| 394 | WB7X7185 | Trim Door |
|
- | |||||
| 396 | WB1X5872 | Scr 10-16 Pl Pnp 2.5s |
|
- | |||||
| 397 | WB7X7183 | End Cap Handle |
|
- | |||||
| 400 | WB36X526 | Crystal Window |
|
$ 140.86 | |||||
| 441 | WB7X7181 | End Cap Door |
|
- | |||||
| 441 | WB7X7182 | End Cap Door |
|
- | |||||
| 451 | WB58X5015 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 457 | WB56X7032 | Panel Drawer Ad |
|
- | |||||
| 457 | WB56X7069 | Panel Drawer Wh |
|
- | |||||
| 529 | WB49X5547 | Pan Broiler |
|
- | |||||
| 530 | WB48X5107 | Grid Broiler Pan |
|
- |
