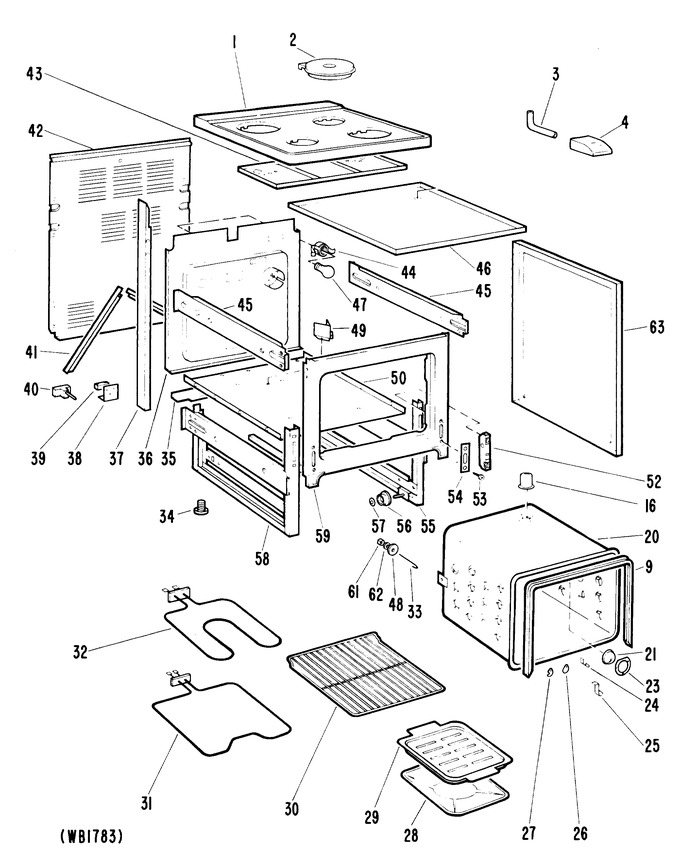

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


4 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5368		Cooktop-ad		Appelez-nous	-
1	WB62X5367		Cooktop-wh		Appelez-nous	-
2	WB30X249		Element 7"		Appelez-nous	-
2	WB30X250		Element 5.7"		Appelez-nous	-
2	WB30X246		Element 7" Auto		Appelez-nous	-
3	WB38X87		Duct Vent		Appelez-nous	-
4	WB38X88		Vent-transfer		Appelez-nous	-
9	WB2X4940		Door Seal		Appelez-nous	-
16	WB38X89		Tube-vent		Appelez-nous	-
20	WB53X271		Oven Liner		Appelez-nous	-
21	WB36X728		Lens-oven Light		Appelez-nous	-
23	WB2X4902		Ring-retaining		Appelez-nous	-
24	WB1X5784		Clip-control Tube		Appelez-nous	-
25	WB2X3165		Hanger-tls		Appelez-nous	-
26	WB2X3165		Plate-tls		Appelez-nous	-
27	WB2X4906		Plate-rotisserie Cover		Appelez-nous	-
29	WB49X589		Broiler Pan Rack		Appelez-nous	-
30	WB48X197		Rack-offset		Appelez-nous	-
30	WB48X196		Rack-flat		Appelez-nous	-
31	WB44X228		Bake Element		Appelez-nous	-
32	WB44X229		Broil Element		Appelez-nous	-
33	WB1X990		Hookbolt		Appelez-nous	-
34	WB1X991		Leveling Leg		Appelez-nous	-
35	WB2X4913		Wire Guard-bottom		Appelez-nous	-
36	WB63X5206		Main Back		Appelez-nous	-
37	WB2X4910		Post-corner		Appelez-nous	-
38	WB2X4907		Bracket-power Cord		Appelez-nous	-
39	WB17X199		Block Main-terminal		Appelez-nous	-
40	WB24X388		Switch Temp-limit		Appelez-nous	-
40	WB2X3163		Gasket-tls				$ 22.50
41	WB2X4909		Brace		Appelez-nous	-
42	WB63X5207		Cover-rear		Appelez-nous	-
42	WB2X4914		Cover-access		Appelez-nous	-
43	WB2X4915		Support Cooktop		Appelez-nous	-
43	WB2X7887		Support Cooktop		Appelez-nous	-
44	WB8X265		Socket-oven Lamp		Appelez-nous	-
44	WB2X4916		Oven Lamp Sleeve		Appelez-nous	-
45	WB2X4917		Channel-brace		Appelez-nous	-
46	WB63X267		Bottom Burner Box		Appelez-nous	-
47	WX12X1510		Lamp 40w Appliance		Appelez-nous	-
48	WB1X993		Lockwasher		Appelez-nous	-
49	WB2X4918		Support Oven		Appelez-nous	-
52	WB14X80		Receiver-insulation		Appelez-nous	-
53	WB1X994		Screw		Appelez-nous	-
54	WB7X1511		Plate-trim		Appelez-nous	-
55	WB63X270		Channel Base-rh		Appelez-nous	-
56	WB39X63		Wheel Drawer Track		Appelez-nous	-
57	WB1X999		Speednut		Appelez-nous	-
58	WB63X271		Channel Base-lh		Appelez-nous	-
59	WB63X5208		Front Frame		Appelez-nous	-
61	WB1X996		Nut Hook Bolt		Appelez-nous	-
62	WB1X995		Lockwasher		Appelez-nous	-
63	WB63X264		Side Panel Almond		Appelez-nous	-
63	WB63X263		Side Panel White		Appelez-nous	-
