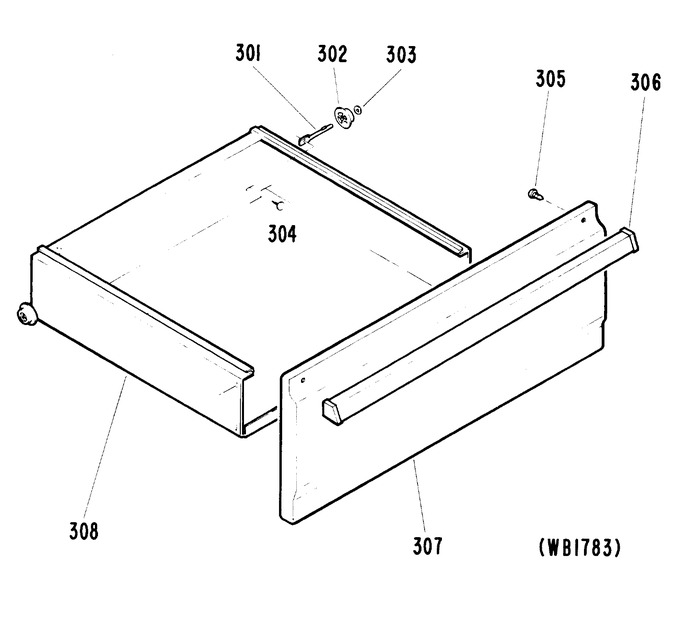

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 301 | WB1X1000 | Spindle |
|
- | |||||
| 302 | WB39X63 | Wheel |
|
- | |||||
| 303 | WB1X999 | Speednut |
|
- | |||||
| 304 | WB1X5787 | Screw |
|
- | |||||
| 305 | WB1X5788 | Screw |
|
- | |||||
| 306 | WB15X242 | Handle |
|
- | |||||
| 307 | WB56X1828 | Panel-wh |
|
- | |||||
| 307 | WB56X1829 | Panel-ad |
|
- | |||||
| 308 | WB58X5012 | Drawer |
|
- |
