| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WB24X197 | Solenoid |
|
- | |||||
| 6 | WB24X183 | Switch-latch |
|
- | |||||
| 7 | WB2X9995 | Bracket |
|
- | |||||
| 8 | WB2X7882 | Lever-latch |
|
- | |||||
| 9 | WB2X7883 | Spring-lock |
|
- | |||||
| 10 | WB2X7884 | Channel-lock |
|
- | |||||
| 11 | WB2X7885 | Pawl-lock |
|
- | |||||
| 12 | WB2X7886 | Channel-latch |
|
- | |||||
| 13 | WB24X5235 | Switch-solenoid |
|
- | |||||
| 14 | WB9X148 | Spring-olunger |
|
- | |||||
| 15 | WB38X90 | Plate-vent |
|
- | |||||
| 17 | WB29X79 | Heater-smoke Elimin |
|
- | |||||
| 18 | WB29X80 | Housing |
|
- | |||||
| 19 | WB29X81 | Screen-smoke Elimin |
|
- | |||||
| 28 | WB49X588 | Broiler Pan |
|
- | |||||
| 50 | WB63X268 | Bottom Insulating |
|
- | |||||
| 51 | WB63X269 | Sheild-insulation |
|
- | |||||
| 64 | WB21X158 | Oven Sensor |
|
- | |||||

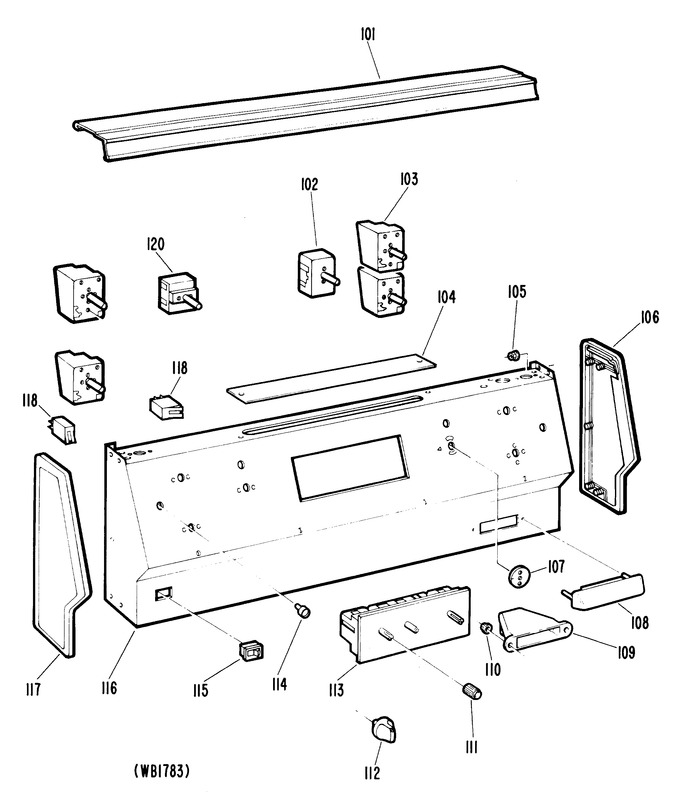

| 101 | WB61X297 | Cover-top |
|
- | |||||
| 102 | WB21X5307 | Thermostat |
|
- | |||||
| 103 | WB2X4899 | Bracket Seni-switch |
|
- | |||||
| 103 | WB23X83 | Sw Sensi-temp |
|
- | |||||
| 103 | WB23X82 | Inf Heat Sw 2000w |
|
- | |||||
| 103 | WB21X5258 | Inf Heat Sw 1400w |
|
- | |||||
| 104 | WB61X298 | Cover Fuse Opening |
|
- | |||||
| 105 | WB1X980 | Palnut Mtg End Cap |
|
- | |||||
| 105 | WB2X4934 | Pad-glass |
|
- | |||||
| 106 | WB61X302 | End Cap Rh |
|
- | |||||
| 106 | WB2X4935 | Bracket-side |
|
- | |||||
| 107 | WB21X438 | Disc |
|
- | |||||
| 108 | WB61X299 | Cover Vent |
|
- | |||||
| 109 | WB38X86 | Top-vent |
|
- | |||||
| 110 | WB1X981 | Palnut-mtg-vent Top |
|
- | |||||
| 111 | WB3X704 | Timer Knob |
|
- | |||||
| 112 | WB3X705 | Knob |
|
- | |||||
| 113 | WB19X229 | Timer |
|
- | |||||
| 114 | WB36X769 | Jewel Amber |
|
- | |||||
| 115 | WB24X5236 | Sw Oven Light |
|
- | |||||
| 116 | WB61X307 | Control Panel-ad |
|
- | |||||
| 116 | WB61X306 | Control Panel-wh |
|
- | |||||
| 117 | WB61X303 | End Cap-lh |
|
- | |||||
| 118 | WB25X89 | Pilot Light-250v |
|
- | |||||
| 118 | WB25X88 | Pilot Light-125v |
|
- | |||||
| 120 | WB22X110 | Selector Switch |
|
- | |||||
| 121 | WB1X1007 | Washer |
|
- | |||||
| 122 | WB2X4928 | Base-handle |
|
- | |||||
| 125 | WB55X624 | Glass-black |
|
- | |||||
| 201 | WB2X119 | Gasket |
|
- | |||||
| 201 | WB2X120 | Gasket Seal |
|
- | |||||
| 202 | WB55X5344 | Muffle |
|
- | |||||
| 203 | WB2X4919 | Bracket Top |
|
- | |||||
| 207 | WB2X7888 | Window Bracket |
|
- | |||||
| 207 | WB55X626 | Glass-inner |
|
- | |||||
| 208 | WB55X622 | Glass |
|
- | |||||
| 215 | WB2X4925 | Base-handle |
|
- | |||||
| 216 | WB15X244 | Handle Latch |
|
- | |||||
| 219 | WB2X7889 | End Cap Lh |
|
- | |||||
| 219 | WB2X7890 | End Cap Rh |
|
- | |||||
| 230 | WB2X4919 | Bracket-bottom |
|
- | |||||
| 231 | WB55X626 | Glass-inner |
|
- | |||||
| 232 | WB2X4934 | Pad Glass |
|
- | |||||
| 233 | WB2X4935 | Bracket-side |
|
- | |||||
| 235 | WB2X6573 | Pad Trim |
|
- | |||||
| 236 | WB2X4938 | Plate Back-up |
|
- | |||||
| 32767 | 49-4796 | Manual Users |
|
- | |||||
| 32767 | 31-0626 | Install Instr |
|
- | |||||
| 32767 | WB2X7876 | Brkt Anti-tip |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
