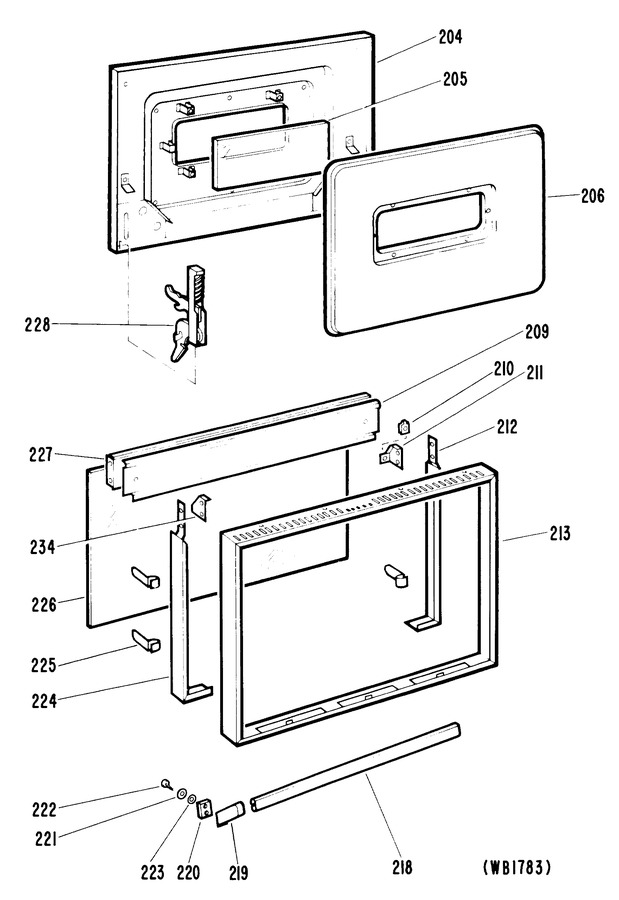

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 204 | WB55X621 | Shield |
|
- | |||||
| 205 | WB2X4934 | Pad-glass |
|
- | |||||
| 205 | WB55X622 | Glass |
|
- | |||||
| 206 | WB1X1002 | Screw Retainer Liner |
|
- | |||||
| 206 | WB55X623 | Retainer-panel |
|
- | |||||
| 209 | WB2X4921 | Plate-aeration |
|
- | |||||
| 210 | WB2X4922 | Clip |
|
- | |||||
| 211 | WB2X4923 | Plate-mtg Rh |
|
- | |||||
| 212 | WB2X4924 | Support Side Rh |
|
- | |||||
| 213 | WB55X625 | Frame |
|
- | |||||
| 218 | WB15X243 | Handle |
|
- | |||||
| 220 | WB2X4928 | Base-handle |
|
- | |||||
| 221 | WB1X5785 | Lockwasher |
|
- | |||||
| 222 | WB1X5786 | Screw |
|
- | |||||
| 223 | WB1X1007 | Washer |
|
- | |||||
| 224 | WB2X4929 | Support Side Lh |
|
- | |||||
| 225 | WB2X6574 | Clip |
|
- | |||||
| 226 | WB55X624 | Glass-black |
|
- | |||||
| 227 | WB2X4931 | Support-top |
|
- | |||||
| 228 | WB14X81 | Hinge |
|
- | |||||
| 234 | WB2X4936 | Plate Mtg Lh |
|
- |
