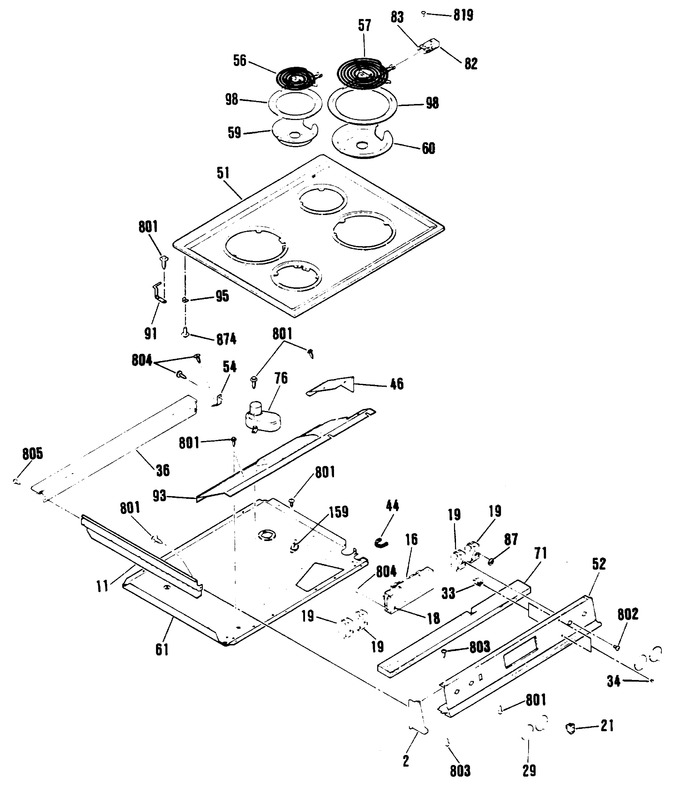

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


4 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WB36K5136		End Cap-lt		Appelez-nous	-
2	WB36K5135		End Cap-rt		Appelez-nous	-
11	WB64K5038		Bbb Side Extension		Appelez-nous	-
16	WB27K5068		Clock/oven Control		Appelez-nous	-
18	WB27K5058		Clock Plate		Appelez-nous	-
19	WB23M24		Control Element 1500w		Appelez-nous	-
19	WG02F05247		Control Element 2350w   (Replaces: WB23K5027)				$ 109.01
21	WB24X415		Rocker Switch		Appelez-nous	-
29	WB3X804		Infinite Knob		Appelez-nous	-
33	WB25X93		Indicator Light		Appelez-nous	-
34	WB25X94		Indicator Light Lens		Appelez-nous	-
36	WB36K5137		Backsplash Filler		Appelez-nous	-
42	WB34K5128		Disconnect Shield		Appelez-nous	-
44	WB2K5096		Grommet Strip-hose		Appelez-nous	-
44	WB2X9725		Grommet Strip-wire		Appelez-nous	-
46	WB34K5111		Wire Cover Extension		Appelez-nous	-
51	WB62K5042		Maintop		Appelez-nous	-
52	WB36K5173		Control Panel Asm		Appelez-nous	-
54	WB2K5208		Mtg Bracket		Appelez-nous	-
56	WG02F05372		6" Surface Element   (Replaces: WB30M1)			Immediately	$ 70.69
57	WB30M2		8" Surface Element		Appelez-nous	-
59	WB32X5059		6" Aeration Pan		Appelez-nous	-
60	WB32X5060		8" Aeration Pan		Appelez-nous	-
61	WB64K5044		Burner Box Bottom		Appelez-nous	-
71	WB35K5034		Control Panel Insulation		Appelez-nous	-
76	WB38K5027		Vent Tube Asm		Appelez-nous	-
82	WB17K5017		Terminal Block Asm		Appelez-nous	-
83	WB1K5128		Terminal Block Clip		Appelez-nous	-
87	WB6X3		Control Seal		Appelez-nous	-
91	WB14X109		Maintop Hinge-rt		Appelez-nous	-
91	WB14X110		Maintop Hinge-lt		Appelez-nous	-
93	WB34K5107		Wire Cover		Appelez-nous	-
95	WB10X255		Mt Hinge Bracket		Appelez-nous	-
98	WB31X5013		6" Trim Ring		Appelez-nous	-
98	WB31X5014		8" Trim Ring			Immediately	$ 13.55
159	WB24M15		Limit Switch-fan		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
802	WB1X1265		Screw		Appelez-nous	-
803	WB1X1149		Screw		Appelez-nous	-
804	WB1X1127		Screw		Appelez-nous	-
805	WB1X1113		Screw		Appelez-nous	-
813	WS01A00445		Screw   (Replaces: WB1X1261)				$ 13.90
819	WB1X1158		Screw		Appelez-nous	-
874	WB1X1162		Screw		Appelez-nous	-
995	WB1M40		Flat Nut		Appelez-nous	-
999	WB18K5314		Main Wire Harness		Appelez-nous	-
999	31-10005		Installation Instruction		Appelez-nous	-
999	WB18K5324		Motor Wire Harness		Appelez-nous	-
999	31-10010		Use & Care Manual		Appelez-nous	-
999	WB18K5371		Main Top Wire Harness		Appelez-nous	-
999	31-13116		Wire Diagram		Appelez-nous	-
