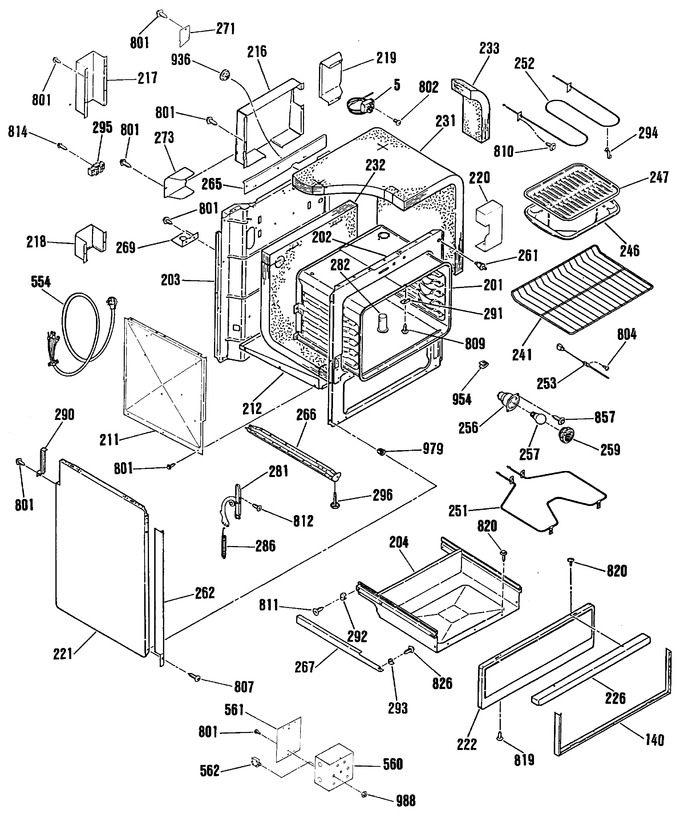

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WB20K5021 | Hi-limit Thermostat |
|
- | |||||
| 140 | WB56K5019 | Ov Dr Frame Asm |
|
- | |||||
| 140 | WB56M6 | Lower Panel Frt Frame |
|
- | |||||
| 201 | WB63K5109 | Oven Body |
|
- | |||||
| 202 | WB63M57 | Front Frame |
|
- | |||||
| 203 | WB63K5126 | Main Back Asm |
|
- | |||||
| 204 | WB58X63 | Storage Drawer |
|
- | |||||
| 211 | WB2M4 | Insulation Side Retainer |
|
- | |||||
| 212 | WB2K5093 | Insulation Retainer-lo |
|
- | |||||
| 216 | WB34M44 | Wire Shield-upper |
|
- | |||||
| 217 | WB2X9527 | Wire Shield Upper |
|
- | |||||
| 218 | WB2X9426 | Wire Shield-lower |
|
- | |||||
| 219 | WB34M6 | Wire Shield |
|
- | |||||
| 220 | WB34K5139 | Wire Shield |
|
- | |||||
| 221 | WB63M58 | Body Side-rt |
|
- | |||||
| 221 | WB63M24 | Body Side-lt |
|
- | |||||
| 222 | WB56K5032 | Lower Front Panel Asm |
|
- | |||||
| 226 | WB15M8 | Storage Drawer Handle |
|
- | |||||
| 231 | WB35M22 | Insulation-top & Sides |
|
- | |||||
| 232 | WB35K5029 | Insulation-back & Bottom |
|
- | |||||
| 233 | WB35M24 | Insulation-top & Sides |
|
- | |||||
| 241 | WB48X208 | Oven Rack |
|
- | |||||
| 246 | WB48M3 | Broiler Pan |
|
- | |||||
| 247 | WB49X627 | Broiler Pan Grid |
|
- | |||||
| 251 | WG02F05414 | Bake Element (Replaces: WB44K5012) |
|
Immediately | $ 124.43 | ||||
| 252 | WG02F05484 | Broil Element (Replaces: WB44X232) |
|
$ 118.07 | |||||
| 253 | WB8K5007 | Sensor |
|
- | |||||
| 256 | WB8M3 | Oven Lamp Holder |
|
- | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 259 | WB25M10 | Oven Light Lens |
|
- | |||||
| 261 | 318394803 | Ov Light Door Switch (Replaces: WB24K5031) |
|
Immediately | $ 49.14 | ||||
| 262 | WB7K5239 | Vertical Side Trim-rt |
|
- | |||||
| 262 | WB7K5240 | Vertical Side Trim-lt |
|
- | |||||
| 265 | WB34K5141 | Shield Wire |
|
- | |||||
| 266 | WB2M33 | Base Asm W/levelers |
|
- | |||||
| 267 | WB56M3 | Drawer Support |
|
- | |||||
| 269 | WB2X9427 | Service Mtg Range Plate |
|
- | |||||
| 271 | WB2X9749 | Flue Cover Plate |
|
- | |||||
| 273 | WB34M27 | Light Wire Cover |
|
- | |||||
| 281 | WG02L01499 | Hinge Asm-lt (Replaces: WB14X103) |
|
$ 120.21 | |||||
| 281 | WG02L01500 | Hinge Asm-rt (Replaces: WB14X104) |
|
$ 129.57 | |||||
| 282 | WB38K5017 | Vent Tube |
|
- | |||||
| 286 | WB9X244 | Oven Door Spring |
|
- | |||||
| 290 | WB63M21 | Bodyside Filler-rear |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 292 | WB2X9146 | Slide Block-rear |
|
- | |||||
| 293 | WB2X9148 | Slide Block-front |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 11.71 | |||||
| 295 | WB17M5 | Power Ring Housing |
|
- | |||||
| 554 | WB8X5034 | Power Cord |
|
- | |||||
| 560 | WB34K5118 | Breaker Box |
|
- | |||||
| 561 | WB34M9 | Fuse Box Mtg Plate |
|
- | |||||
| 562 | WB20K5022 | Circuit Breaker-20 Amp |
|
- | |||||
| 562 | WB20K5023 | Circuit Breaker-15 Amp |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 802 | WB1X1265 | Screw |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 807 | WB1X1174 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 15.88 | |||||
| 810 | WB1X1135 | Screw |
|
- | |||||
| 811 | WB1X1172 | Screw |
|
- | |||||
| 812 | WB1X1133 | Trim Screw |
|
- | |||||
| 814 | WB1X1258 | Screw |
|
- | |||||
| 819 | WB1X1158 | Screw |
|
- | |||||
| 820 | WB1X1424 | Screw |
|
- | |||||
| 826 | WB1X1167 | Screw |
|
- | |||||
| 857 | WB1X1324 | Screw |
|
- | |||||
| 936 | WB2X9103 | Snap Bushing |
|
- | |||||
| 954 | WB2X9105 | Thmst Bulb Clip Retainer |
|
- | |||||
| 979 | WB1X1177 | Nut Spacer |
|
- | |||||
| 988 | WB1X1311 | Speed Nut |
|
- |
