SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Interior Cabinet & Freezer Shelving


07 - Optional Ice Maker Kit-ic511


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplemental Information


11 - Wiring Information

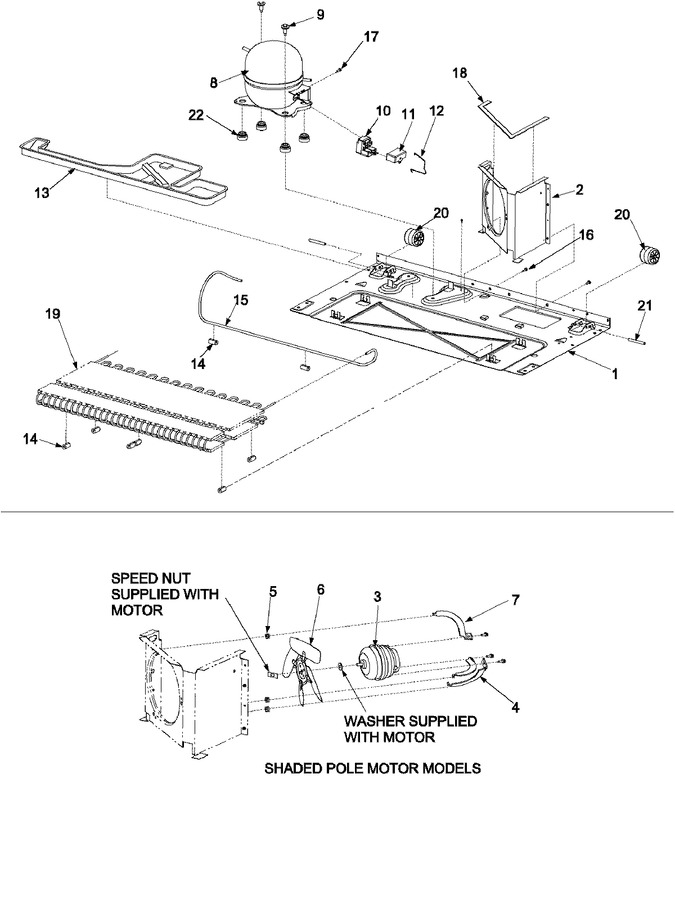

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67005744		Basepan, Machine Compartment	11	Appelez-nous	-
1	67001089		Basepan, Machine Compartment		Appelez-nous	-
2	12575306		Shroud, Cond Fan	11	Appelez-nous	-
2	67001090		Shroud, Condenser Fan		Appelez-nous	-
3	67005104		Motor, Condenser Fan		Appelez-nous	-
4	67003354		Bracket, Condenser Motor		Appelez-nous	-
5	61004743		Grommet, Bracket				$ 5.51
6	WP12587601		Blade, Cond Fan   (Replaces: 12587601)				$ 126.67
7	M0223816		Screw, Tr				$ 5.27
8	W10309997		Compressor (tpg1410yxc)x-port   (Replaces: 67005028)				$ 556.12
8	12002817		Compressor Kit	11	Appelez-nous	-
9	M0221523		Screw, Shldr		Appelez-nous	-
10	W10848274		Overload/relay   (Replaces: 67004815)				$ 177.00
11	WP2201147		Capacitor   (Replaces: 67002815)				$ 128.97
11	WP2201147		Capacitor   (Replaces: 67007162)	11			$ 128.97
12	67007052		Clip, Capacitor	11	Appelez-nous	-
12	67004687		Strap, Bale		Appelez-nous	-
13	67004713		Pan, Drain		Appelez-nous	-
14	67005680		Grommet, Condenser   (Replaces: 12578601)				$ 21.05
15	67004262		Tube, Discharge		Appelez-nous	-
16	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
17	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
18	WP854334		Seal   (Replaces: 61003210)				$ 13.28
19	WP67006132		Condenser   (Replaces: 67004743)				$ 304.52
19	WP67006132		Condenser   (Replaces: 67006132)	11			$ 304.52
20	WP67005149		Roller   (Replaces: 67001094)			Immediately	$ 22.02
21	67006434		Axle, Roller   (Replaces: 67001095)			Immediately	$ 7.52
22	WPW10169124		Grommet, Compressor   (Replaces: 67003493)			Immediately	$ 7.19
NI	12973201		Harness, Mc	11	Appelez-nous	-
NI	67005069		Harness, Mc		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
