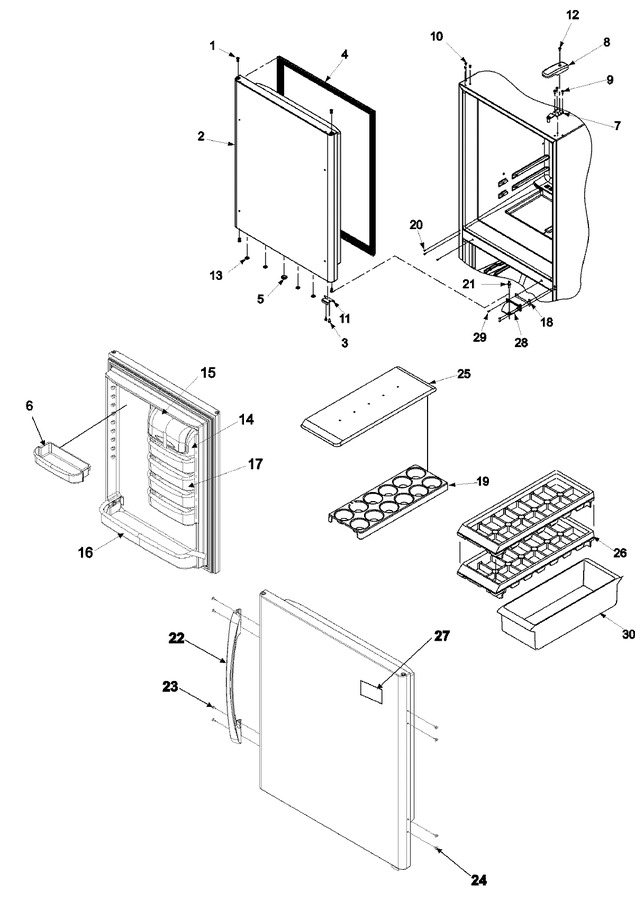

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) |
|
$ 21.05 | |||||
| 2 | 67005124 | Door Assy., Ref. Foam (blk) |
|
- | |||||
| 2 | 67007081 | Door Assy., Ref. Foam (stnls) | 11 |
|
- | ||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 7.76 | ||||
| 4 | WPW10436248 | Gasket, Ref Door (blk) (Replaces: 67003553) |
|
$ 286.97 | |||||
| 4 | WPW10436248 | Gasket, Ref Door (blk) (Replaces: W10131327) | 11 |
|
$ 286.97 | ||||
| 5 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 6 | 67004449 | Bucket, Ref Dr Short |
|
- | |||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) |
|
Immediately | $ 44.89 | ||||
| 8 | 67001012 | Cover, Top Hinge (blk) |
|
$ 47.34 | |||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 9.38 | |||||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 7.76 | ||||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) |
|
Immediately | $ 14.05 | ||||
| 12 | WP8281196 | Screw-mach (Replaces: M0202327) |
|
Immediately | $ 7.19 | ||||
| 13 | 67004838 | Plug, Vent (blk) |
|
$ 10.68 | |||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 83.82 | ||||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) |
|
$ 108.56 | |||||
| 16 | 67001748 | Retainer, Door |
|
- | |||||
| 17 | WPW10324005 | Bucket, Med Ref Door (Replaces: 67003766) |
|
$ 74.05 | |||||
| 18 | WPM0274062 | Shim, Non Metal (blk) (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 19 | 10436506 | Tray, Egg |
|
$ 8.28 | |||||
| 20 | WP489349 | Screw, Tf (Replaces: M0239730) |
|
Immediately | $ 7.88 | ||||
| 21 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.27 | |||||
| 22 | 67006805 | Handle, Side Mount (blk) | 11 |
|
- | ||||
| 22 | 67003963 | Handle Assy., Door (blk) |
|
- | |||||
| 23 | 67006806 | Screw, Hi Torque (blk) (Replaces: 67004709) |
|
$ 13.35 | |||||
| 24 | 67007166 | Screw (blk) | 11 |
|
- | ||||
| 24 | WP12246608 | Plug, Handle Hole (blk) (Replaces: 12246603) |
|
Immediately | $ 7.76 | ||||
| 25 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 26 | WP841180A | Tray, Ice (Replaces: 67001205) |
|
Immediately | $ 45.56 | ||||
| 27 | Y12528501 | Nameplate (amana Plus) |
|
Immediately | $ 59.75 | ||||
| 28 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) |
|
$ 152.73 | |||||
| 28 | WP12607104ED | Hinge, Center (blk) (Replaces: 67007043) | 11 |
|
$ 152.73 | ||||
| 29 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.02 | |||||
| 30 | 10423131 | Bin, Utility |
|
$ 31.13 |
