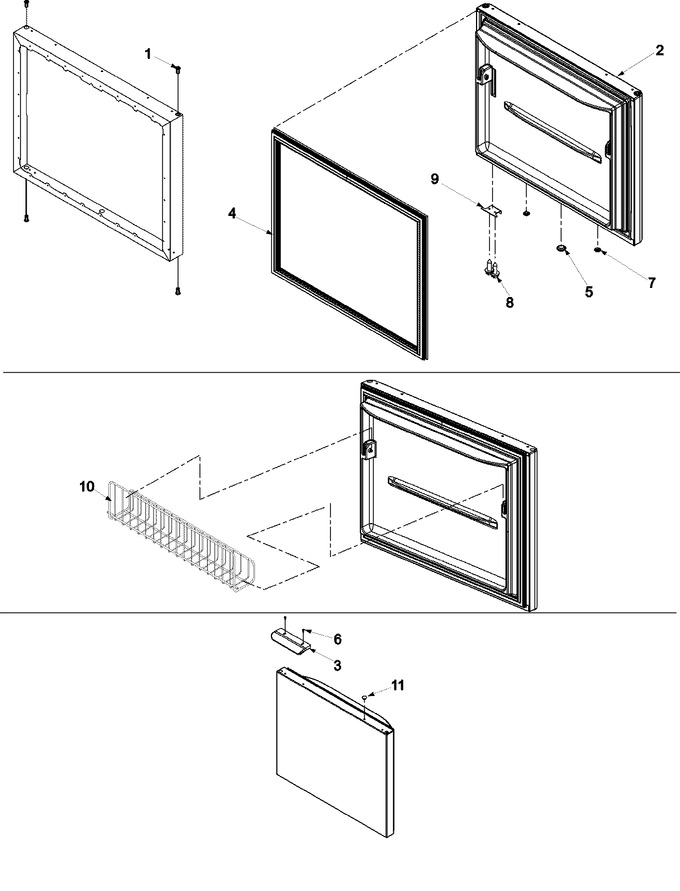

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67004977		Bushing, Door (wht)   (Replaces: 67003368)				$ 7.81
2	67001147		Fz Dr Foam Assy (wht)		Appelez-nous	-
3	WP67005140		Handle, Frz. Door (wht)   (Replaces: 67005140)	13		Immediately	$ 148.34
3	WP67005140		Handle, Fz Dr (wht)   (Replaces: 12610802W)			Immediately	$ 148.34
4	WPW10443311		Gasket, Fz Door (wht)   (Replaces: W10130150)	13		Immediately	$ 255.76
4	WPW10443311		Gasket, Fz Door (wht)   (Replaces: 67003550)			Immediately	$ 255.76
5	A3080002		Plug, Button (wht)		Appelez-nous	-
6	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
7	67001015		Plug, Button (wht)		Appelez-nous	-
8	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
9	12968202W		Stop, Door (wht)   (Replaces: 67003779)				$ 65.99
10	67003397		Retainer, Frz Door				$ 104.39
10	67001662		Basket, Fz Fixed		Appelez-nous	-
11	WP67001130		Plug, Handle Hole (wht)   (Replaces: 12246601)			Immediately	$ 5.98
