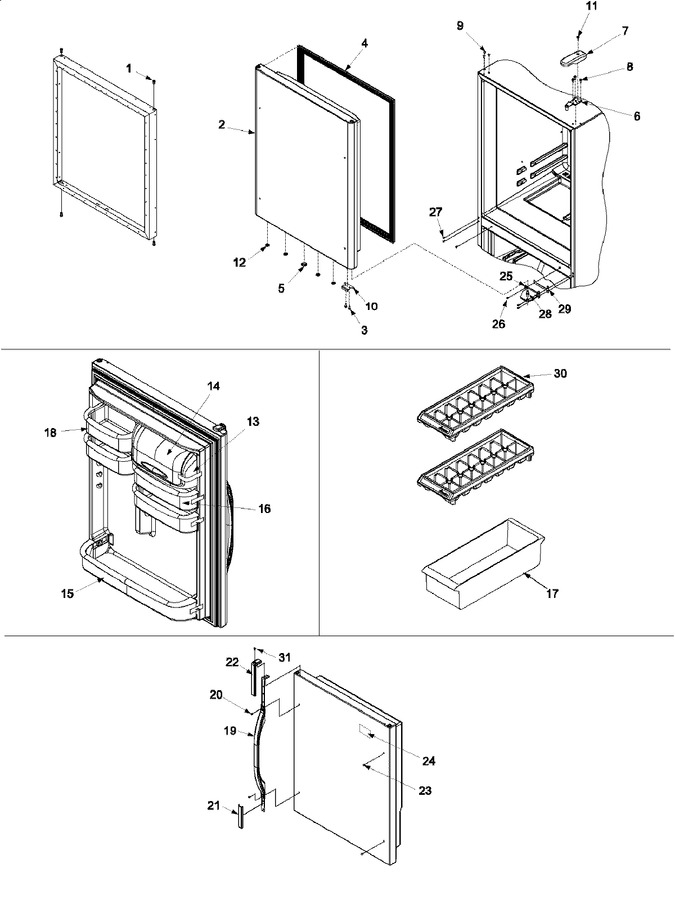

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67003368) | 10 |
|
$ 8.20 | ||||
| 2 | 67001138 | Ref Dr Foam Assy (wht) | 10 |
|
$ 514.71 | ||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 8.20 | |||
| 4 | WPW10443309 | Gasket, Ref Door (wht) (Replaces: W10130148) | 13 |
|
Immediately | $ 365.24 | |||
| 4 | WPW10443309 | Gasket, Ref Door (wht) (Replaces: 67003548) | 10 |
|
Immediately | $ 365.24 | |||
| 5 | A3080002 | Plug, Button (wht) | 10 |
|
- | ||||
| 6 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 47.13 | |||
| 6 | WP12566606ED | Top Hinge Assy (blk) (Replaces: 12566604ED) | 13 |
|
Immediately | $ 47.13 | |||
| 7 | 67001014 | Cover, Top Hinge (wht) | 10 |
|
$ 22.34 | ||||
| 8 | R9800670 | Screw, Tf (Replaces: M0238731) | 10 |
|
$ 10.58 | ||||
| 9 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) | 10 |
|
Immediately | $ 5.98 | |||
| 10 | 12968202W | Stop, Door (wht) (Replaces: 67003779) | 10 |
|
$ 69.29 | ||||
| 11 | WP8281196 | Screw-mach (Replaces: M0202327) | 10 |
|
Immediately | $ 7.55 | |||
| 12 | 67001015 | Plug, Button (wht) | 10 |
|
- | ||||
| 13 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 88.01 | |||
| 14 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 113.99 | ||||
| 15 | 67001139 | Retainer, Door (Replaces: 67001296) | 10 |
|
Immediately | $ 104.79 | |||
| 16 | WP67001021 | Bucket, Med Ref Door (Replaces: 67001021) | 10 |
|
$ 84.95 | ||||
| 17 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 18 | 67001141 | Bucket, Small Ref Dr | 10 |
|
Immediately | $ 78.91 | |||
| 19 | 67003129 | Handle, Ref Dr (wht) | 10 |
|
$ 79.41 | ||||
| 20 | R9800670 | Screw, Mounting (Replaces: M0223230) | 10 |
|
$ 10.58 | ||||
| 21 | 67001144 | Trim, Bottom Handle (wht) | 10 |
|
- | ||||
| 22 | 67001129 | Trim, Top Handle (wht) | 10 |
|
- | ||||
| 23 | WP67001130 | Plug, Handle Hole (wht) (Replaces: 12246601) | 10 |
|
Immediately | $ 5.98 | |||
| 24 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 62.74 | |||
| 25 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) | 10 |
|
$ 69.79 | ||||
| 26 | W11573362 | Screw, T. F. (Replaces: M0226233) | 10 |
|
$ 14.72 | ||||
| 27 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 8.43 | |||
| 28 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) | 10 |
|
$ 8.68 | ||||
| 29 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) | 10 |
|
Immediately | $ 8.40 | |||
| 30 | WP841180A | Tray, Ice (Replaces: 67001205) | 10 |
|
Immediately | $ 47.84 | |||
| 31 | 12248201 | Screw, Hndl Cone | 10 |
|
$ 5.48 |
