SELECT A DIAGRAM

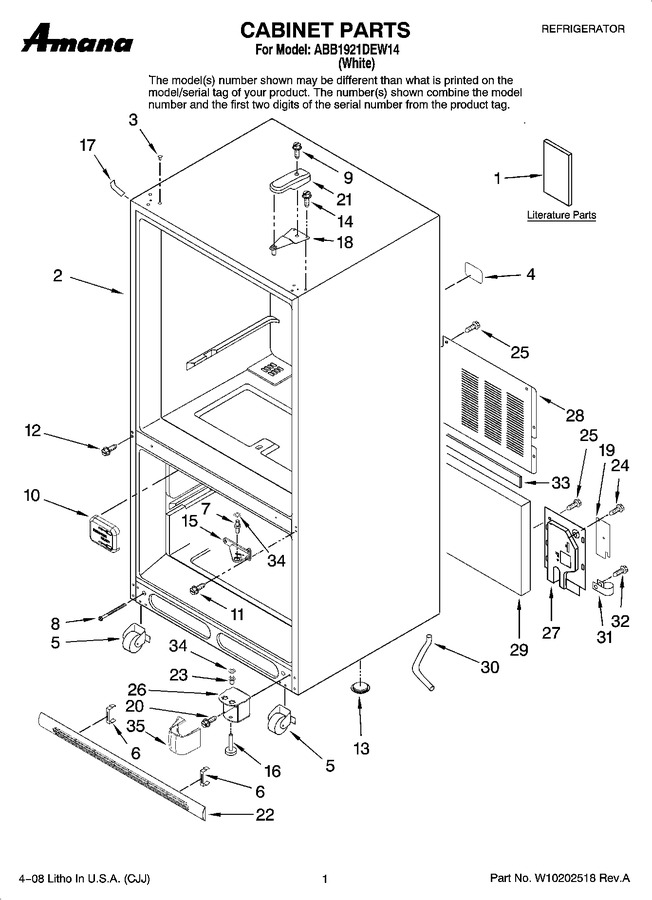

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10183276		Energy Tag		Appelez-nous	-
1	W10169671		Tech Sheet		Appelez-nous	-
1	W10175445		Owners Manual		Appelez-nous	-
3	WP67001130		Plug, Button (3) (white)   (Replaces: 67001130)			Immediately	$ 5.98
4	W11685757		Label, Fill Tube   (Replaces: 67005064)				$ 7.06
5	67006118		Roller Assembly		Appelez-nous	-
6	12627302		Clip, Grille				$ 5.84
7	WP67006744		Pin, Center Hinge   (Replaces: 67006744)				$ 8.27
8	71003131		Bolt, Adjusting (rear)   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	WP67001098		Cover, Fill Tube   (Replaces: 67001098)				$ 8.03
11	W11573362		Screw (3)   (Replaces: 67006380)				$ 14.02
12	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 7.88
13	A3076901		Plug-button				$ 5.70
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 7.88
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 66.47
16	W11177593		Foot Brake (2)   (Replaces: 67003868)				$ 11.60
17	67003484		Cover, Corner (white)				$ 20.40
18	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 44.89
19	12479901		Plate, Cover		Appelez-nous	-
20	67006564		Screw (8)			Immediately	$ 7.69
21	67001014		Cover Hinge (white)				$ 21.28
22	67003849		Grille Assembly (includes Clips) (white)				$ 51.91
23	67007018		Pin, Bottom Hinge			Immediately	$ 8.21
24	WP489128		Screw   (Replaces: 67006662)				$ 10.88
25	67006425		Screw (9)			Immediately	$ 6.95
26	67001069		Hinge, Bottom (white)		Appelez-nous	-
27	67001173		Cover, Water Valve		Appelez-nous	-
28	67006101		Cover, Unit				$ 76.68
29	67003796		Insulation, Sound				$ 19.27
30	W10164397		Tube, Drain				$ 14.79
31	W10157973		Clip, Drain Tube				$ 7.80
32	WP33001882		Screw   (Replaces: 67006737)				$ 79.72
33	B5759649		Gasket		Appelez-nous	-
34	WPM0274057		Shim (white)   (Replaces: M0274057)			Immediately	$ 8.00
35	12561901W		Cover, Lw Hinge (white)				$ 6.37
