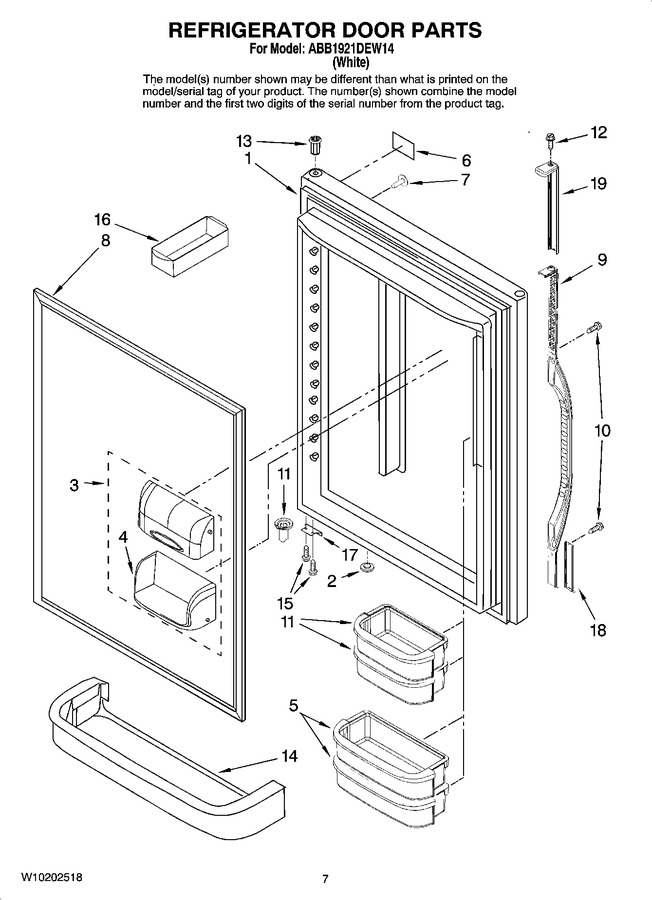

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67001138		Refrigerator Door (w/ Insulation) (white)				$ 514.71
2	10712401		Plug, Vent (white)				$ 7.79
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 108.56
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	WP67001021		Bucket (2) (medium)   (Replaces: 67001021)				$ 80.90
6	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
7	WP67001130		Plug, Button (2) (white)   (Replaces: 12246601)			Immediately	$ 5.98
8	WPW10443309		Gasket, Door Magnetic (white)   (Replaces: W10130148)			Immediately	$ 347.85
9	67003129		Handle, Door (white)				$ 79.41
10	67006682		Screw		Appelez-nous	-
11	67001141		Bucket (2) Small			Immediately	$ 75.15
12	12248201		Screw				$ 5.48
13	WP67004977		Bushing (white)   (Replaces: 67004977)				$ 7.81
14	67001139		Retainer, Door   (Replaces: 67001296)			Immediately	$ 99.80
15	WP98165		Screw   (Replaces: 67006287)				$ 8.00
16	10423131		Bin, Utility				$ 31.13
17	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 65.99
18	67005137		Trim, Handle Lower				$ 16.90
19	67005131		Trim, Handle Upper				$ 5.83
