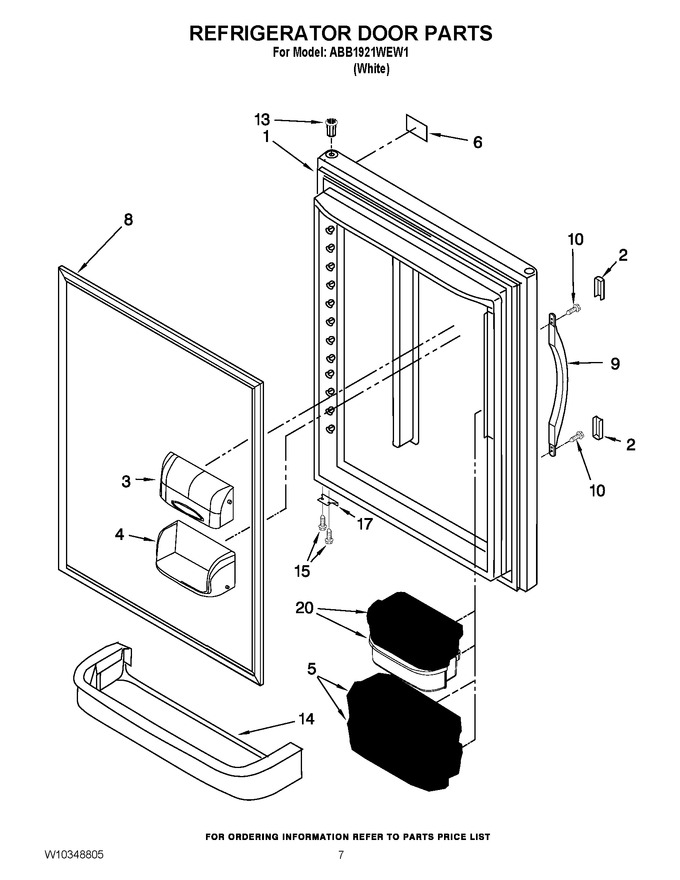

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658581WQ | Refrigerator Door (w/ Insulation) (white) |
|
- | |||||
| 2 | WP2193353W | Trim-handle-short (Replaces: 2193353W) |
|
$ 8.52 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67001021 | Bucket (2) (medium) (Replaces: 12557204V) |
|
$ 84.95 | |||||
| 6 | Y12528501 | Nameplate (Replaces: 12528501) |
|
Immediately | $ 62.74 | ||||
| 8 | WPW10443309 | Gasket, Door Magnetic (white) (Replaces: W10164030) |
|
Immediately | $ 365.24 | ||||
| 9 | 2186649W | Handle, Door (white) |
|
$ 70.49 | |||||
| 10 | 60001022 | Screw (Replaces: 12990508) |
|
$ 66.41 | |||||
| 13 | WP67004977 | Bushing (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 14 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 20 | 67001141 | Bucket (2) (small) (Replaces: 12557202) |
|
Immediately | $ 78.91 |
