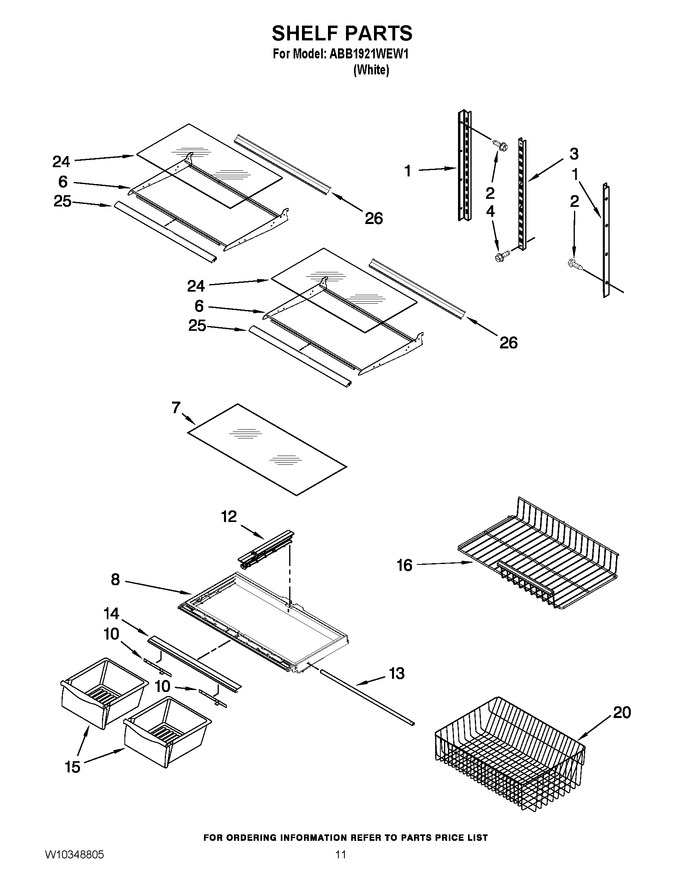

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251970 | Ladder, Side |
|
$ 29.89 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 4 | W10215666 | Screw (2) |
|
$ 9.53 | |||||
| 6 | W10840992 | Shelf, Stationary (Replaces: 10460115K) |
|
$ 226.38 | |||||
| 7 | WP67006877 | Glass, Crisper (Replaces: 12204823N) |
|
Immediately | $ 209.75 | ||||
| 8 | W10675752 | Frame, Crisper (Replaces: 12724014KVF) |
|
$ 199.32 | |||||
| 10 | WP67005864 | Slide, Humidity (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 12 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701N) |
|
Immediately | $ 118.46 | ||||
| 13 | WP12227302WD | Brace, Crisper Frame (Replaces: 12227302WD) |
|
$ 111.60 | |||||
| 14 | W10231337 | Trim, Crisper |
|
$ 47.70 | |||||
| 15 | W10833528 | Pan, Crisper (2) (Replaces: 12531305) |
|
Immediately | $ 139.95 | ||||
| 16 | 12476801 | Shelf-sta. Fz (upper) |
|
$ 136.27 | |||||
| 20 | WP12754803 | Basket, Freezer (lower) (Replaces: 12754803) |
|
$ 267.02 | |||||
| 24 | WP12204809 | Glass-shelf (Replaces: 12204809K) |
|
$ 251.22 | |||||
| 25 | WPW10231329 | Trim-front (Replaces: W10231329K) |
|
$ 119.61 | |||||
| 26 | WP10946013 | Trim-rear (Replaces: 10946013K) |
|
$ 131.84 |
