SELECT A DIAGRAM

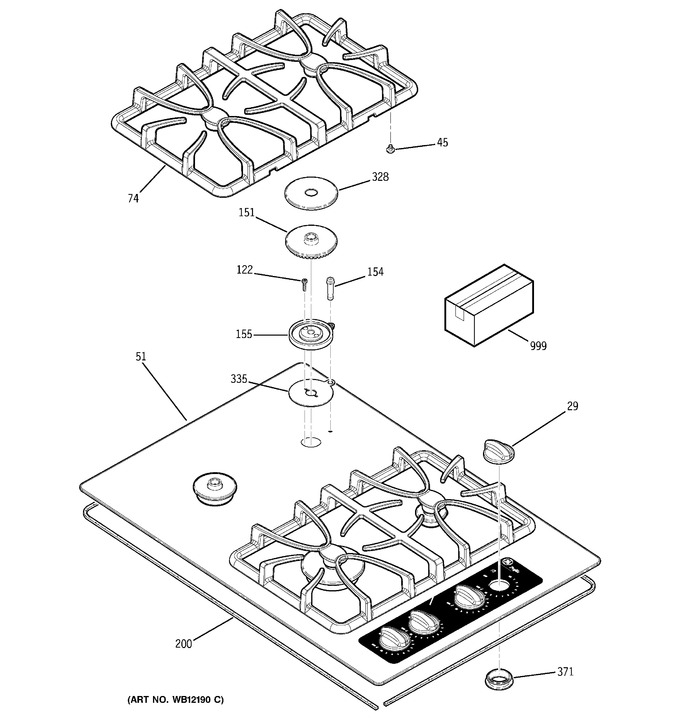

1 - Cooktop


2 - Gas Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
29	WB03T10171		Knob Vlv Gas (prf)		Appelez-nous	-
45	WG03A00018		Grate Foot   (Replaces: WB02T10101)			Immediately	$ 7.24
51	WB62T10237		Glass Maintop W/trm Asm		Appelez-nous	-
74	WB31T10032		Burner Grate Double		Appelez-nous	-
122	WG02A00079		Scr 6-32 Mch Fht15 .984   (Replaces: WB01T10049)				$ 4.20
151	WB16T10005		Burner Head-lg		Appelez-nous	-
151	WB16T10014		Burner Head-rt. Rr.		Appelez-nous	-
151	WB16T10013		Burner Head-rt. Frt.		Appelez-nous	-
151	WB16T10008		Burner Head-med		Appelez-nous	-
154	WG02F11432		Igniter-top Burners   (Replaces: WB13T10010)				$ 19.06
155	WB16T10006		Burner Base Large.		Appelez-nous	-
155	WB16T10007		Burner Base Large		Appelez-nous	-
155	WB16T10012		Burner Base Small		Appelez-nous	-
155	WB16T10015		Burner Base Rt. Frt.		Appelez-nous	-
200	WB6K5042		Foam Tape		Appelez-nous	-
328	WB13T10019		Burner Cap D-sbk		Appelez-nous	-
328	WB13T10021		Burner Cap B- Sbk		Appelez-nous	-
328	WB13T10022		Burner Cap H-sbk		Appelez-nous	-
328	WB13T10020		Burner Cap C-sbk		Appelez-nous	-
335	WG02F00130		Burner Gasket Lt Rr   (Replaces: WB04T10011)				$ 12.40
335	WG02F00129		Burner Gasket Rt. Frt.   (Replaces: WB04T10014)				$ 74.34
335	WG02F00128		Burner Gasket-small   (Replaces: WB16T10011)				$ 15.54
335	WG02F00131		Burner Gasket Lt. Ft   (Replaces: WB04T10012)				$ 10.81
371	WG02F04903		Control Seal   (Replaces: WB04T10015)				$ 18.49
999	WB64X93		Glass Cleaner		Appelez-nous	-
999	31-10491		Instruction Lp		Appelez-nous	-
999	31-13936		Mini Manual & Wd Asm		Appelez-nous	-
999	49-80041		Use & Care Manual		Appelez-nous	-
999	31-10489		Instructions Install		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
