SELECT A DIAGRAM

1 - Cooktop

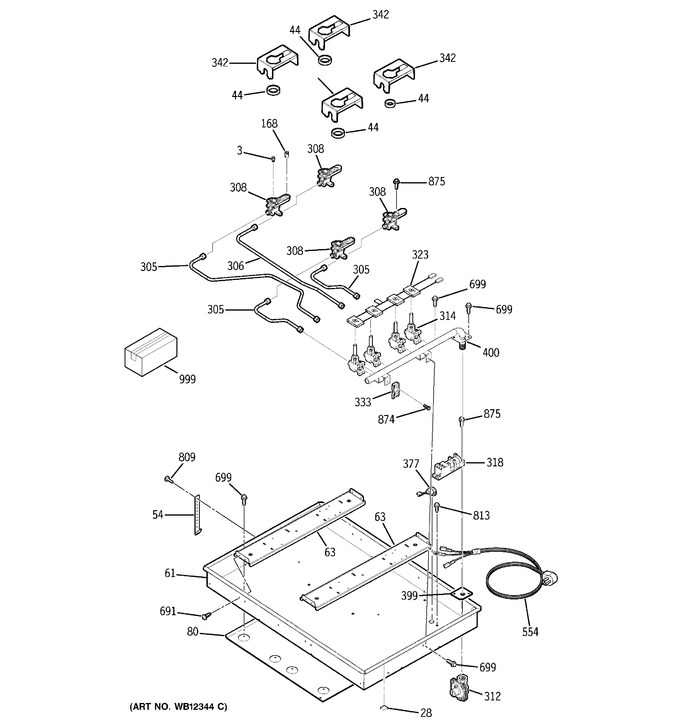

2 - Gas Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WG02F01185		Orifice Spud Rt. Rr.   (Replaces: WB28T10028)				$ 15.88
3	WG02F01192		Orifice Spud Rt.frt.   (Replaces: WB28T10027)				$ 15.88
3	WG02F01193		Orifice Spud Rt.frt.-lp   (Replaces: WB28T10033)				$ 22.23
3	WG02F01184		Orifice Spud Lt. Rr.- Lp   (Replaces: WB28T10011)				$ 39.70
3	WG02F02897		Orifice Spud Lt. Rr.   (Replaces: WB28T10015)				$ 72.49
3	WG02F01186		Orifice Spud Lt Frt.-lp   (Replaces: WB28T10017)				$ 15.88
3	WB28T10016		Orifice Spud Rt.rr.-lp		Appelez-nous	-
3	WG02F01188		Orifice Spud Lt. Frt.   (Replaces: WB28T10014)				$ 72.49
28	WB02T10103		Felt Pad		Appelez-nous	-
44	WB02T10095		Burner Grommet-lgd		Appelez-nous	-
44	WB02T10096		Burner Grommet-sm		Appelez-nous	-
54	WG02A00689		Hold Down Bracket   (Replaces: WB2K5328)				$ 6.35
61	WB64T10033		Bottom Burn Box		Appelez-nous	-
63	WB02T10099		Support Bracket		Appelez-nous	-
80	WB34T10025		Burn Box Bottom Shield		Appelez-nous	-
168	WG02A00592		Clip-electrode   (Replaces: WB01K10007)			Immediately	$ 9.53
305	WB28T10051		Burner Tube Rt Ft, Rt Rr		Appelez-nous	-
305	WB28T10052		Burner Tube-lt Ft		Appelez-nous	-
306	WB28T10053		Burner Tube Lt Rr		Appelez-nous	-
308	WB28T10032		Burner Injet Lt. Rr.		Appelez-nous	-
308	WG02F01185		Burnere Head-small   (Replaces: WB28T10029)				$ 15.88
308	WB28T10010		Burner Injet Rt Ft/ltrr		Appelez-nous	-
308	WB28T10031		Burner Injet Rtrr, Cent		Appelez-nous	-
312	WG02F01388		Pressure Regulator   (Replaces: WB19K5019)				$ 85.82
314	WB19T10020		Gas Valve Center		Appelez-nous	-
314	WB19T10022		Valve Gas Lt Rr		Appelez-nous	-
314	WB19T10023		Valve Gas Rt Frt		Appelez-nous	-
314	WB19T10021		Valve Gas Lt Frt		Appelez-nous	-
318	WB13T10038		Spark Module		Appelez-nous	-
323	WB18T10219		Switch Harness		Appelez-nous	-
333	WB6X93		Valve Clamp		Appelez-nous	-
342	WB02T10102		Maintop Support		Appelez-nous	-
377	WB2K5275		Strain Relief-rt Angle		Appelez-nous	-
399	WB04T10019		Manifold Seal		Appelez-nous	-
400	WB28T10071		Manifold Pipe 30		Appelez-nous	-
554	WB8K5040		Range Cord		Appelez-nous	-
691	WB1K5162		Screw-black		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 15.88
813	WS01A00445		Screw   (Replaces: WB1X1261)				$ 13.90
874	WB1M14		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
999	WB64X93		Glass Cleaner		Appelez-nous	-
999	31-13936		Mini Manual & Wd Asm		Appelez-nous	-
999	49-80041		Use & Care Manual		Appelez-nous	-
999	31-10489		Instructions Install		Appelez-nous	-
999	31-10491		Instruction Lp		Appelez-nous	-
	WG02F02756		Harness Switch				$ 58.61
	WG02F16815		Module Spark   (Replaces: WG02F02731)				$ 57.27
