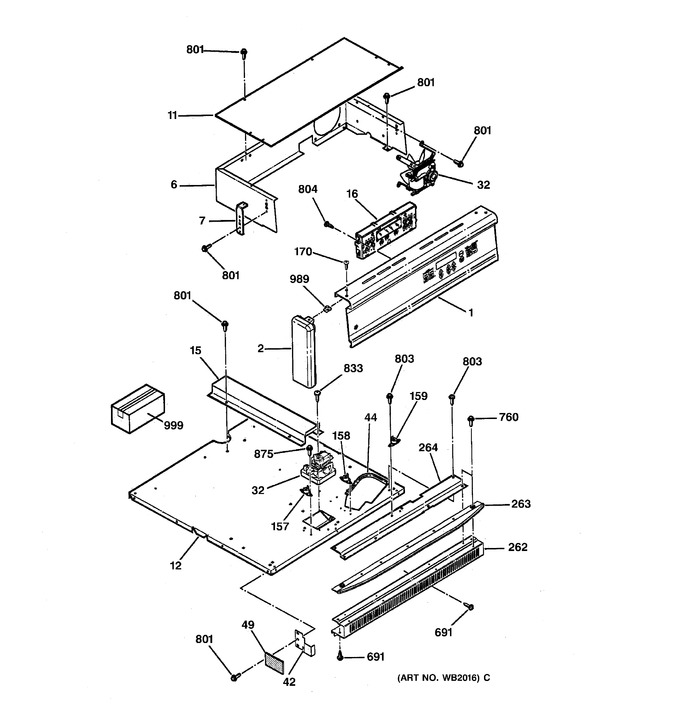

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5702 | Control Panel W/keypad |
|
- | |||||
| 2 | WB36K5681 | End Cap, Lt-blk |
|
- | |||||
| 2 | WB36K5682 | End Cap, Rt-blk |
|
- | |||||
| 6 | WB36K5699 | Control Panel Housing |
|
- | |||||
| 7 | WB2K5406 | Control Panel Bracket |
|
- | |||||
| 11 | WB37K5040 | Control Housing Top |
|
- | |||||
| 12 | WB63K5198 | Cabinet Top |
|
- | |||||
| 15 | WB2X9665 | Wire Cover |
|
- | |||||
| 16 | WB27K5329 | Clock/oven Control |
|
- | |||||
| 32 | WG02F05326 | Fan Asm (Replaces: WB26K5061) |
|
$ 188.08 | |||||
| 32 | WB26X114 | Fan Asm-top Cabinet |
|
- | |||||
| 42 | WB34K5249 | Heat Shield |
|
- | |||||
| 44 | WB2K5408 | Flixible Grommet |
|
- | |||||
| 46 | WB34K5263 | Wire Shield |
|
- | |||||
| 49 | WB35K5129 | Heat Shield Insulation |
|
- | |||||
| 157 | WB24K5041 | Limit Switch-fan |
|
- | |||||
| 158 | WB24K5045 | Limit Switch-to Cab Top |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 170 | WB1K60 | Screw 8-18 (bk) 1/2 S |
|
- | |||||
| 262 | WB7K5278 | Vertical Side Trim |
|
- | |||||
| 262 | WB7K5477 | Vent Trim-black |
|
- | |||||
| 263 | WB7K5478 | I-brow Trim-black |
|
- | |||||
| 264 | WB7K5108 | Vent Trim Extension |
|
- | |||||
| 530 | WB48X5107 | Grid Broiler Pan |
|
- | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 803 | WB1X1149 | Screw-bright Nickel |
|
- | |||||
| 803 | WB1K5162 | Screw-black |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 821 | WB1M5 | Screw |
|
- | |||||
| 833 | WB1X1131 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 890 | WB1M27 | Screw |
|
- | |||||
| 950 | WB1K5135 | Cable Clip |
|
- | |||||
| 989 | WB1K5074 | U Nut |
|
- | |||||
| 999 | WB18K5642 | Main Wire Harness |
|
- | |||||
| 999 | WB18K5600 | Sensor Wire Harness |
|
- | |||||
| 999 | WB18K5490 | Door Switch Wire Harness |
|
- | |||||
| 999 | WB18K5422 | Control Valve Wire Harn |
|
- | |||||
| 999 | 49-8703 | Use Care Manual |
|
- | |||||
| 999 | 31-13332 | Mini Manual W/wire Diag. |
|
- | |||||
| 999 | 31-10155 | Installation Instruction |
|
- |
