SELECT A DIAGRAM
1 - Control Panel

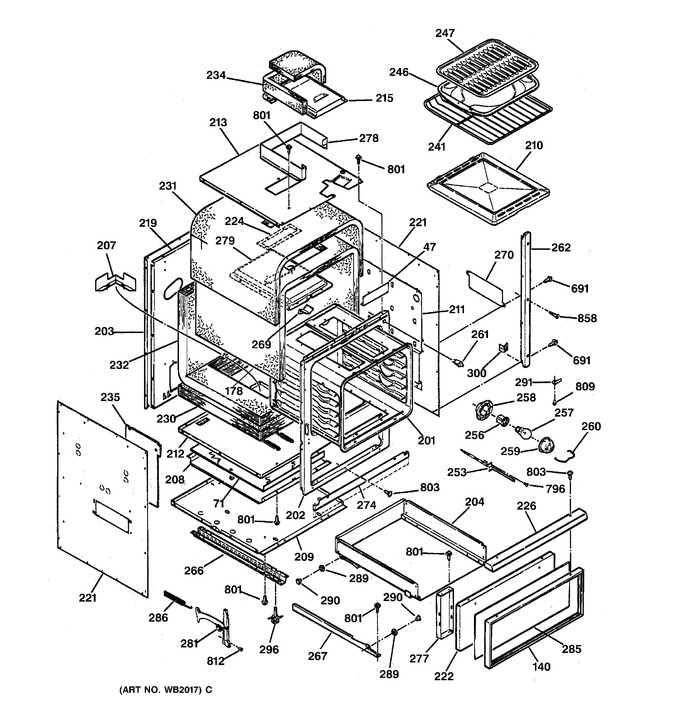

2 - Body Parts
3 - Door
4 - Lock
5 - Gas Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 47 | WB38K5036 | Barrier |
|
- | |||||
| 71 | WB35K5128 | Compartment Shield Insul |
|
- | |||||
| 140 | WB55K5075 | Door Frame-black |
|
$ 222.68 | |||||
| 140 | WB56K5118 | Lower Front Panel Frame |
|
- | |||||
| 178 | WB35K5059 | Oven Body Insulation |
|
- | |||||
| 201 | WB63K5199 | Oven Body |
|
- | |||||
| 202 | WB63K5164 | Front Frame |
|
- | |||||
| 203 | WB63K5095 | Main Back |
|
- | |||||
| 204 | WB58K5003 | Storage Drawer W/roller |
|
- | |||||
| 207 | WB34K5238 | Cover-bottom Insulation |
|
- | |||||
| 208 | WB34K5253 | Compartment Shield |
|
- | |||||
| 209 | WB63K5159 | Main Bottom |
|
- | |||||
| 210 | WB63K5097 | Oven Bottom |
|
- | |||||
| 211 | WB2K5266 | Ov Side Insul Retainer |
|
- | |||||
| 212 | WB2K5390 | Ov Btm Insul Retainer |
|
- | |||||
| 213 | WB2K5265 | Top Insulation Retainer |
|
- | |||||
| 215 | WB38K5063 | Flue Deflector Asm |
|
- | |||||
| 219 | WB2K5167 | Insulation Retainer-rear |
|
- | |||||
| 221 | WB63K5099 | Body Side |
|
- | |||||
| 222 | WB56X2002 | Lower Frt Panel Asm |
|
- | |||||
| 224 | WB4K5005 | Flue Gasket |
|
- | |||||
| 226 | WB15K5027 | Front Panel Handle |
|
- | |||||
| 230 | WB35K5056 | Oven Btm Insulation |
|
- | |||||
| 231 | WB35K5124 | Insulation Wrapper-outer |
|
- | |||||
| 232 | WB35K5057 | Insulation-back/bottom |
|
- | |||||
| 234 | WB35K5125 | Flue Box Insulation |
|
- | |||||
| 235 | WB35K5064 | Insulation-body Side |
|
- | |||||
| 241 | WB48X218 | Oven Rack |
|
- | |||||
| 246 | WB48M3 | Broiler Pan |
|
- | |||||
| 247 | WB48K5018 | Broiler Pan Grid |
|
- | |||||
| 253 | WB21X5318 | Sensor |
|
- | |||||
| 253 | WB21X5347 | Sensor Asm |
|
- | |||||
| 256 | WB8X303 | Ov Lamp Holder |
|
- | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | 318394803 | Jamb Switch (Replaces: WB24K5061) |
|
Immediately | $ 44.23 | ||||
| 262 | WB7K5278 | Vertical Side Trim |
|
- | |||||
| 262 | WB7K5477 | Vent Trim-black |
|
- | |||||
| 266 | WB2X9634 | Bottom Channel |
|
- | |||||
| 267 | WB39M4 | Drawer Guide Asm-rt |
|
- | |||||
| 267 | WB39M3 | Drawer Guide Asm-lt |
|
- | |||||
| 269 | WB2K5164 | Cup Light Support |
|
- | |||||
| 270 | WB2X9642 | Plate Cover |
|
- | |||||
| 274 | WB7M3 | Lo Frm Trim-2 1/2" |
|
- | |||||
| 274 | WB7K5019 | Front Frame Trim-lo-1" |
|
- | |||||
| 277 | WB55K5024 | Lo Panel Liner |
|
- | |||||
| 278 | WB34K5100 | Heat Shield |
|
- | |||||
| 279 | WB38K5064 | Vent Box |
|
- | |||||
| 281 | WB14K5007 | Ov Dr Hinge-lt |
|
- | |||||
| 281 | WB14K5006 | Ov Dr Hinge-rt |
|
- | |||||
| 285 | WB56K5042 | Lower Panel Overlay |
|
- | |||||
| 286 | WB9K5017 | Ov Dr Spring |
|
- | |||||
| 289 | WB2X9638 | Roller-drawer |
|
- | |||||
| 290 | WB1X1331 | Shoulder Rivet |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 296 | WB2X9635 | Leveling Leg |
|
- | |||||
| 300 | WB2X9641 | Spacer-front Trim |
|
- | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 803 | WB1K5162 | Screw-black |
|
- | |||||
| 803 | WB1X1149 | Screw-bright Nickel |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 812 | WB1K5191 | Screw Flat Zinc |
|
- | |||||
| 858 | WB1X1413 | Wood Screw |
|
- |
