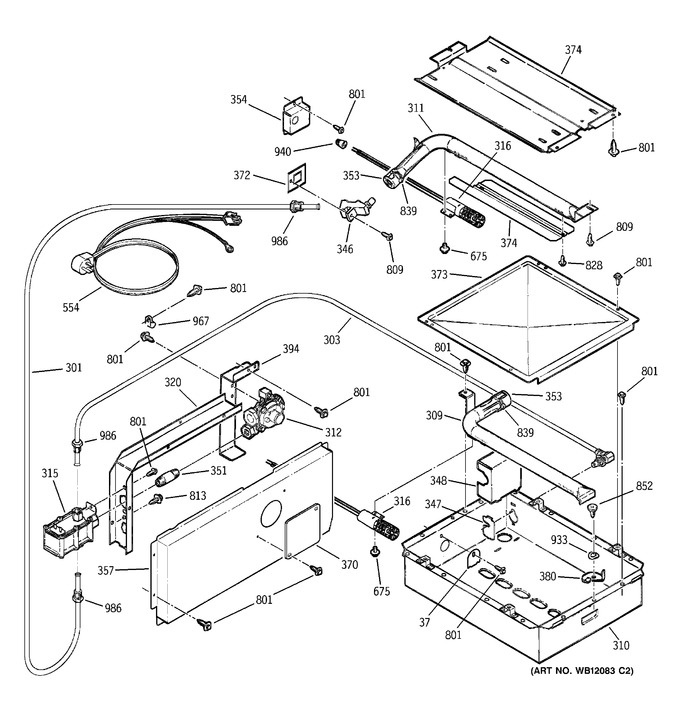

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
37	WB34K14		Igniter Cover		Appelez-nous	-
301	WB28K5021		Tube Asm		Appelez-nous	-
303	WB28K5026		Tube Asm		Appelez-nous	-
309	WB16K5062		Bake Burner		Appelez-nous	-
310	WB64K5098		Burner Box Bottom		Appelez-nous	-
311	WB16K5064		Broiler Burner		Appelez-nous	-
312	WB19K5032		Pressure Regultr-convtbl		Appelez-nous	-
315	WB20X126		Control Valve		Appelez-nous	-
316	WG02F04373		Igniter-broil/oven   (Replaces: WB2X9154)			Immediately	$ 125.83
320	WB34K5212		Wire Cover Valve		Appelez-nous	-
346	WB2X9646		Broil Orifice Fitting		Appelez-nous	-
347	WB2X9163		Orifice Fitting Plate		Appelez-nous	-
348	WB2X9159		Orifice Fitting Shield		Appelez-nous	-
351	WB2X9611		Nipple		Appelez-nous	-
353	WB2X9014		Air Shutter		Appelez-nous	-
354	WB34K5257		Ignitor Wire Cover		Appelez-nous	-
357	WB34T10007		Reg Cover		Appelez-nous	-
370	WB34T10021		Regulator Cover Plate		Appelez-nous	-
372	WB6K5043		Chip Cover		Appelez-nous	-
373	WB34K5095		Ov Bottom Baffle		Appelez-nous	-
374	WB34K5256		Broiler Burner Baffle-lo		Appelez-nous	-
374	WB49X663		Bro Burner Baffle-upper		Appelez-nous	-
380	WB14X115		Latch-burner Box Bottom		Appelez-nous	-
394	WB2K5343		Regulator Support		Appelez-nous	-
554	WB8K5039		Range Cord		Appelez-nous	-
675	WB1K5213		Screw 10-32x5/32		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 14.29
813	WS01A00445		Screw Ground   (Replaces: WB1X1261)				$ 12.51
828	WB1X1141		Screw		Appelez-nous	-
839	WB1X1124		Air Shutter Screw		Appelez-nous	-
852	WB1X1179		Screw		Appelez-nous	-
933	WB1X1256		Washer Spring		Appelez-nous	-
940	WB1X1181		Wire Connector		Appelez-nous	-
967	WB2X1422		Harness Clamp		Appelez-nous	-
986	WB1X1117		Inverted Nut 3/8"		Appelez-nous	-
