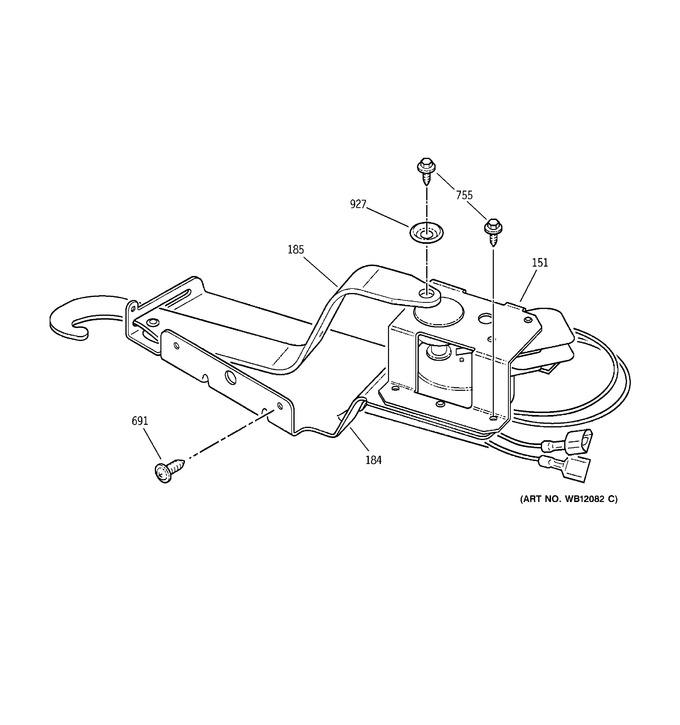

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 151 | WG02F05623 | Lock Motor (Replaces: WB26K5030) |
|
$ 151.67 | |||||
| 184 | WB34K5079 | Door Lock Plate |
|
- | |||||
| 185 | WB15K5016 | Lock Lever Asm |
|
- | |||||
| 691 | WB1K5162 | Screw-black |
|
- | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 755 | WZ04X0044 | Screw |
|
- | |||||
| 927 | WB1X1254 | Washer |
|
- |
