SELECT A DIAGRAM

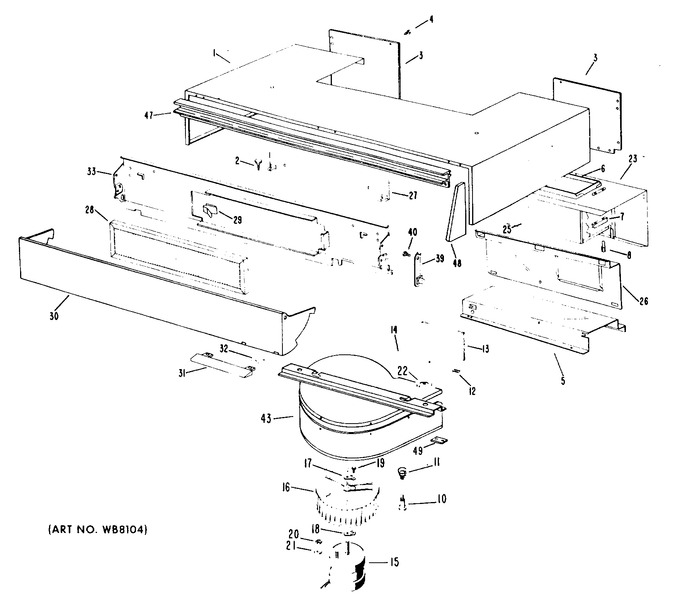

1 - Blower Parts Only
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1499 | Hood Body Wh |
|
- | |||||
| 1 | WB62X1503 | Hood Body Ad |
|
- | |||||
| 1 | WB62X1502 | Hood Body Ha |
|
- | |||||
| 1 | WB62X1501 | Hood Body Fa |
|
- | |||||
| 1 | WB62X1500 | Hood Body Cf |
|
- | |||||
| 2 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 3 | WB2X2017 | Back Cover |
|
- | |||||
| 4 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 5 | WB49X181 | Support Slide |
|
- | |||||
| 6 | WB49X182 | Exhaust Asm |
|
- | |||||
| 7 | WZ04X0289 | Scr 8-18 Ab Hx 1/4 S |
|
- | |||||
| 7 | WB2X2016 | Receiver Stud |
|
- | |||||
| 8 | WZ02X0453 | Screw Mt. Lampholders |
|
- | |||||
| 8 | WB1X426 | Stud Ball |
|
- | |||||
| 10 | WB1X427 | Screw Mt. Blower |
|
- | |||||
| 11 | WB9X73 | Spring Blower Mount |
|
- | |||||
| 12 | WB9X72 | Spring Damper |
|
- | |||||
| 13 | WB2X2235 | Damper |
|
- | |||||
| 14 | WB2X1581 | Wire |
|
- | |||||
| 15 | WB26X27 | Motor Blower |
|
- | |||||
| 16 | WB2X3456 | Wheel Blower |
|
- | |||||
| 17 | WB2X3457 | Clamp |
|
- | |||||
| 18 | WB2X3458 | Clamp |
|
- | |||||
| 19 | WZ04X0419 | Scr 10-16 Ab Hxw 5/8 S |
|
- | |||||
| 20 | WZ07X0030 | Nut |
|
- | |||||
| 21 | WZ10X0114 | Lockwasher |
|
- | |||||
| 22 | WB2X2015 | Retainer |
|
- | |||||
| 23 | WB49X184 | Cover Asm |
|
- | |||||
| 25 | WB49X183 | Guide Air |
|
- | |||||
| 26 | WB49X218 | Cover Inner |
|
- | |||||
| 27 | WB49X180 | Deflector Air |
|
- | |||||
| 28 | WB2X6731 | Filter Grease |
|
- | |||||
| 29 | WB2X1583 | Hood Filter Clip |
|
- | |||||
| 30 | WB56X923 | Hood Panel |
|
- | |||||
| 31 | WZ05X0187 | Scr 8-32 T Ovr 1/2 S |
|
- | |||||
| 31 | WB15X109 | Hood Panel Handle |
|
- | |||||
| 32 | WB2X2630 | Clip |
|
- | |||||
| 33 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 33 | WB2X2629 | Plate Filter |
|
- | |||||
| 39 | WB2X3131 | Spring Pin Asm |
|
- | |||||
| 40 | WZ04X0304 | Screw Mt. Duct |
|
- | |||||
| 43 | WZ04X0232 | Scr 8-18 Ab Hxs 3/8 S |
|
- | |||||
| 43 | WB49X216 | Housing Blower Top |
|
- | |||||
| 43 | WB49X217 | Housing Blower Bottom |
|
- | |||||
| 47 | WB7X772 | Trim Hood |
|
- | |||||
| 47 | WZ04X0232 | Scr 8-18 Ab Hxs 3/8 S |
|
- | |||||
| 48 | WB7X770 | End Cap-rt |
|
- | |||||
| 48 | WB7X771 | End Cap-lt |
|
- | |||||
| 48 | WZ04X0217 | Scr 6-20 B Hxw 1/4 S |
|
- | |||||
| 48 | WB2X3431 | Pad (cut To Size) |
|
- | |||||
| 49 | WB2X3239 | Strap |
|
- |
