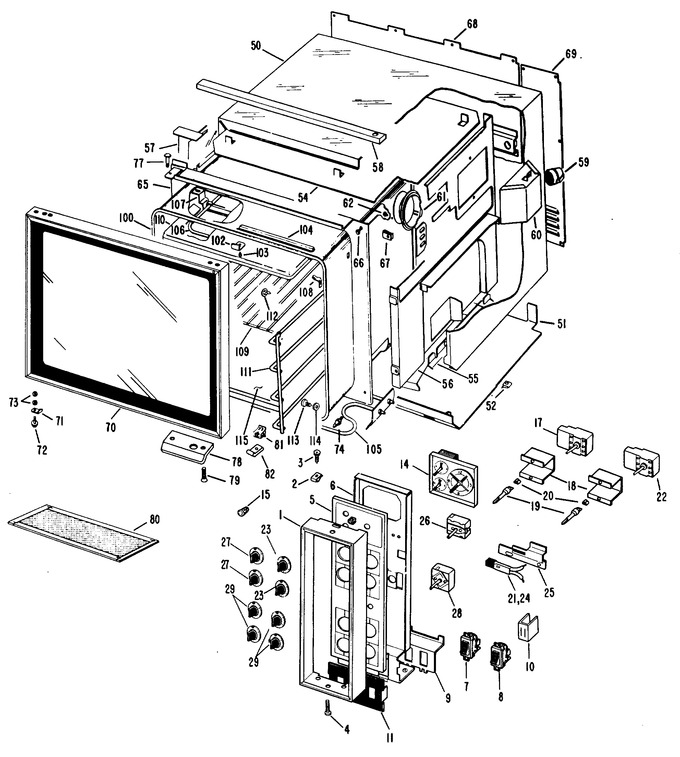

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB7X1223		Trim Control		Appelez-nous	-
2	WB1X358		Speednut Trim		Appelez-nous	-
3	WZ04X0367		Screw - Trim Top		Appelez-nous	-
4	WZ05X0120		Screw - Trim Bottom		Appelez-nous	-
5	WB36X5368		Crystal		Appelez-nous	-
6	WB2X3196		Bracket - Instrument		Appelez-nous	-
7	WS01A01150		Screw Mtg. Switch   (Replaces: WB1X5364)				$ 3.97
7	WB24X177		Switch - Lamps		Appelez-nous	-
8	WB24X178		Switch - Fan		Appelez-nous	-
8	WS01A01150		Screw Mtg. Switch   (Replaces: WB1X5364)				$ 3.97
9	WZ04X0231		Screw Mtg. Bracket		Appelez-nous	-
9	WB2X2996		Bracket - Switch		Appelez-nous	-
10	WB2X3008		Barrier - Switch		Appelez-nous	-
10	WS01A01150		Screw Mtg. Switch   (Replaces: WB1X5364)				$ 3.97
11	WB7X985		Trim - Switch		Appelez-nous	-
14	WB1X540		Nut Mtg. Timer		Appelez-nous	-
14	WB19X123		Timer		Appelez-nous	-
15	WB3X218		Knob - Timer		Appelez-nous	-
15	WB1X540		Nut Mtg. Timer		Appelez-nous	-
17	WB2X6274		Sleeve Thermostat - Lower		Appelez-nous	-
17	WS01A02255		Screw Mtg. Thermostat   (Replaces: WB1X536)				$ 3.97
17	WB21X5208		Thermostat - Upper		Appelez-nous	-
18	WB2X2657		Bracket - Thermostat		Appelez-nous	-
18	WZ06X0116		Screw Mtg. Bracket		Appelez-nous	-
19	WB2X2470		Shaft - Extension		Appelez-nous	-
20	WB2X190		Spring Clip		Appelez-nous	-
21	WB2X1608		Lamp - Upper Cycling				$ 31.65
22	WB2X6274		Sleeve		Appelez-nous	-
22	WB21X5209		Thermostat - Lower		Appelez-nous	-
23	WB3X470		Knob - Thermostat		Appelez-nous	-
24	WB2X1608		Lamp - Lower Cycling				$ 31.65
25	WB2X3243		Bracket - Lamp		Appelez-nous	-
25	WZ04X0231		Screw Mtg. Bracket		Appelez-nous	-
26	WZ02X0528		Screw Mtg. Switches		Appelez-nous	-
26	WB22X79		Switch - Oven		Appelez-nous	-
27	WB3X469		Knob - Switch Oven		Appelez-nous	-
28	WZ02X0528		Screw Mtg. Switch		Appelez-nous	-
28	WB21X228		Switch - Infinite S.u.		Appelez-nous	-
29	WB2X1422		Clamp - Capillary Tube		Appelez-nous	-
29	WB3X464		Knob - Switches		Appelez-nous	-
50	WB56X1463		Case Side Lh - Fa		Appelez-nous	-
50	WB56X1458		Case Side Rh - Fa		Appelez-nous	-
50	WZ04X0231		Screw - Case To Post		Appelez-nous	-
50	WB56X1465		Case Side Lh - Ad		Appelez-nous	-
50	WB56X1464		Case Side Lh - Ha		Appelez-nous	-
50	WB56X1462		Case Side Lh - Cf		Appelez-nous	-
50	WB56X1461		Case Side Lh - Wh		Appelez-nous	-
50	WB56X1460		Case Side Rh - Ad		Appelez-nous	-
50	WB56X1459		Case Side Rh - Ha		Appelez-nous	-
50	WB56X1457		Case Sides Rh - Cf		Appelez-nous	-
50	WB56X1456		Case Sides Rh - Wh		Appelez-nous	-
50	WB2X2999		Angle Brace		Appelez-nous	-
51	WB55X421		Case - Bottom		Appelez-nous	-
52	WB2X1659		Speednut - Case Bottom		Appelez-nous	-
52	WZ04X0245		Screw Mtg. Bottom		Appelez-nous	-
54	WB55X287		Guard Insul. - Top		Appelez-nous	-
54	WB2X1561		Strain Relief		Appelez-nous	-
55	WB55X290		Guard Insul. - Center		Appelez-nous	-
56	WZ04X0231		Screw Mtg. Guard		Appelez-nous	-
56	WB55X198		Guard Insul. - Lower		Appelez-nous	-
57	WB49X179		Air Duct		Appelez-nous	-
58	WB1X528		Speednut - Deflector		Appelez-nous	-
58	WZ04X0241		Screw Mtg. Deflector		Appelez-nous	-
58	WB7X776		Deflector		Appelez-nous	-
59	WB8X191		Receptacle - Lamp		Appelez-nous	-
60	WZ04X0231		Screw Mtg. Shield		Appelez-nous	-
60	WB2X1520		Shield - Lamp		Appelez-nous	-
61	WB36X126		Glass - Lamp		Appelez-nous	-
62	WZ04X0245		Screw Mtg. Glass		Appelez-nous	-
62	WB1X119		Washer - Screw		Appelez-nous	-
65	WB56X5768		Frame		Appelez-nous	-
66	WZ05X0120		Screw Mtg. Frame		Appelez-nous	-
67	WB1X365		Speednut Mtg. Frame Bottom		Appelez-nous	-
67	WB2X2998		Speednut Mtg. Frame Top		Appelez-nous	-
68	WB49X300		Cover - Back		Appelez-nous	-
69	WB49X301		Cover - Instrument		Appelez-nous	-
70	WB56X5791		Door Oven		Appelez-nous	-
71	WB56X1658		Plate - Friction		Appelez-nous	-
72	WB1X400		Screw - Plate		Appelez-nous	-
73	WB1X401		Washer		Appelez-nous	-
74	WB1X5508		Strike Asm. Door		Appelez-nous	-
77	WB1X529		Hinge Pin - Top		Appelez-nous	-
78	WB15X126		Handle		Appelez-nous	-
79	WZ05X0120		Screw Mtg. Handle		Appelez-nous	-
80	WB2X1666		Filter		Appelez-nous	-
80	WB2X1665		Clip - Filter		Appelez-nous	-
81	WB2X1570		Catch		Appelez-nous	-
82	WB2X2785		Guide Door		Appelez-nous	-
82	WB1X488		Screw Mtg. Guide		Appelez-nous	-
100	WB53X5075		Oven Liner		Appelez-nous	-
100	WB2X1511		Insulation		Appelez-nous	-
102	WB2X6209		Trim Clip		Appelez-nous	-
103	WB1X5471		Screw Mtg. Trim		Appelez-nous	-
104	WB2X2957		Gasket - Oven		Appelez-nous	-
105	WZ04X0231		Screw Mtg. Unit		Appelez-nous	-
105	WB44X195		Bake Unit		Appelez-nous	-
106	WB44X139		Broil Unit				$ 129.34
107	WZ04X0231		Screw Mtg. Unit & Support		Appelez-nous	-
107	WB2X1509		Support - Broil Unit		Appelez-nous	-
108	WB2X596		Clip - Tube		Appelez-nous	-
109	WB48X111		Rack		Appelez-nous	-
110	WB49X139		Reflector - Broil Unit		Appelez-nous	-
111	WB48X110		Rack - Support		Appelez-nous	-
112	WB2X3023		Grommet - Support		Appelez-nous	-
113	WB1X5365		Screw - Support		Appelez-nous	-
114	WB1X119		Washer - Screw		Appelez-nous	-
208	WB17X167		Terminal Block - Dist.		Appelez-nous	-
208	WZ04X0384		Screw Mtg. Block		Appelez-nous	-
