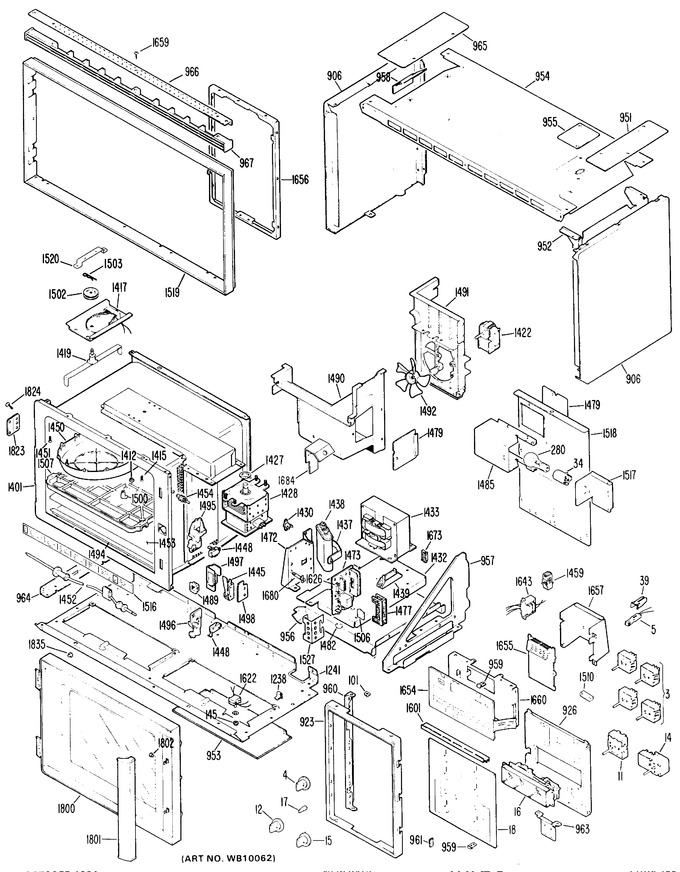

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5629 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 11 | WB22X5103 | Switch, Oven |
|
- | |||||
| 12 | WB3X5627 | Knob Oven Switch |
|
- | |||||
| 14 | WB2X6454 | Sleeve |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB24X184 | Thermostat, Dual |
|
- | |||||
| 15 | WB3X5628 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5271 | Timer |
|
- | |||||
| 17 | WB3X5630 | Knob Timer |
|
- | |||||
| 18 | WB36X5510 | Crystal |
|
- | |||||
| 34 | WB8X5086 | Socket Lamp |
|
- | |||||
| 39 | WB2X6239 | Bracket Lamp |
|
- | |||||
| 145 | WB1X246 | Nut Switch |
|
- | |||||
| 146 | WB1X271 | Nut Mtg Cap |
|
- | |||||
| 148 | WZ04X0237 | Screw |
|
- | |||||
| 148 | WB1X5763 | Screw |
|
- | |||||
| 248 | WB1X500 | Terminal Screw |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 305 | WB2X6653 | Speednut |
|
- | |||||
| 350 | WB55X5243 | Door Liner |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 701 | WB15X5133 | Handle Latch |
|
- | |||||
| 740 | WB2X7066 | Clip Wire(natural) Large |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 749 | WB1X5578 | Screw Mtg Trim |
|
- | |||||
| 763 | WB2X1665 | Clip Filter |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 788 | WB17X5064 | Housing Socket Pkg 4 P1n |
|
- | |||||
| 796 | WB2X6654 | Speednut U Type |
|
- | |||||
| 906 | WB56X5900 | Case Side Rh Ad |
|
- | |||||
| 906 | WB56X5897 | Case Side Rh Wh |
|
- | |||||
| 906 | WB2X6930 | Grommet Strip |
|
- | |||||
| 906 | WB56X5899 | Case Side Rh Ha |
|
- | |||||
| 906 | WB56X5901 | Case Side Lh Wh |
|
- | |||||
| 906 | WB56X5903 | Case Side Lh Ha |
|
- | |||||
| 906 | WB56X5904 | Case Side Lh Ad |
|
- | |||||
| 906 | WB56X6010 | Case Side Rh Ds |
|
- | |||||
| 906 | WB56X6011 | Case Side Rh Sl |
|
- | |||||
| 906 | WB56X6012 | Case Side Lh Ds |
|
- | |||||
| 906 | WB56X6013 | Case Side Lh Sl |
|
- | |||||
| 923 | WB7X6800 | Trim Control |
|
- | |||||
| 926 | WB2X7222 | Bracket Instrument |
|
- | |||||
| 951 | WB56X5924 | Cover Case Top |
|
- | |||||
| 952 | WB49X5292 | Duct Side |
|
- | |||||
| 953 | WB2X6840 | Filler Filter Opening |
|
- | |||||
| 954 | WB56X5929 | Case Top Ad |
|
- | |||||
| 954 | WB56X6015 | Case Top Sl |
|
- | |||||
| 954 | WB56X6014 | Case Top Ds |
|
- | |||||
| 954 | WB56X5926 | Case Top Wh |
|
- | |||||
| 954 | WB56X5928 | Case Top Ha |
|
- | |||||
| 955 | WB2X6727 | Cover |
|
- | |||||
| 956 | WB49X5294 | Duct Bottom |
|
- | |||||
| 957 | WB2X7231 | Brace Oven |
|
- | |||||
| 958 | WB49X5296 | Baffle |
|
- | |||||
| 959 | WB2X7238 | Clip Mtg Trim |
|
- | |||||
| 960 | WB2X7239 | Support Side Lh |
|
- | |||||
| 960 | WB2X7240 | Support Side R H |
|
- | |||||
| 961 | WB2X7241 | Clip |
|
- | |||||
| 961 | WB1X5628 | Screw Mtg Crystal |
|
- | |||||
| 963 | WB2X7223 | Hinge Control Panel |
|
- | |||||
| 964 | WB2X7230 | Angle |
|
- | |||||
| 965 | WB2X7513 | Cover Case Top |
|
- | |||||
| 966 | WB2X7234 | Cover Grille |
|
- | |||||
| 967 | WB7X6797 | Grille |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1241 | WB55X5248 | Bottom Case |
|
- | |||||
| 1401 | WB2X7237 | Barrier |
|
- | |||||
| 1412 | WB2X7539 | Plug Button |
|
- | |||||
| 1415 | WB1X5627 | Fastener |
|
- | |||||
| 1417 | WB26X5071 | Antenna Drive Asm |
|
- | |||||
| 1419 | WB2X7410 | Antenna Asm |
|
- | |||||
| 1422 | WB26X5060 | Motor, Blower |
|
- | |||||
| 1427 | WB2X6046 | Rf Gasket |
|
- | |||||
| 1428 | WB27X5142 | Magnetron |
|
- | |||||
| 1428 | WB18X5048 | Hi Voltage Wire |
|
- | |||||
| 1430 | WB27X5219 | Thermostat |
|
- | |||||
| 1432 | WB2X7225 | Plate Component |
|
- | |||||
| 1433 | WB2X7202 | Barrier |
|
- | |||||
| 1433 | WB27X5215 | Transformer, Hi-voltage |
|
- | |||||
| 1437 | WB2X7061 | Strap Capacitor |
|
- | |||||
| 1438 | WB27X5212 | Capacitor |
|
- | |||||
| 1439 | 11QBP0235 | Rectifier (Replaces: WB27X5070) |
|
$ 15.33 | |||||
| 1445 | WB24X5157 | Switch, Monitor |
|
- | |||||
| 1448 | WB24X5168 | Switch Door |
|
- | |||||
| 1450 | WB56X5882 | Cover Stirrer |
|
- | |||||
| 1451 | WB1X5453 | Fastener |
|
- | |||||
| 1451 | WB1X5714 | Fastener |
|
- | |||||
| 1452 | WB20X5045 | Probe |
|
- | |||||
| 1453 | WB48X5062 | Shelf Oven |
|
- | |||||
| 1454 | WB20X5042 | Receptacle Probe |
|
- | |||||
| 1472 | WB2X7060 | Bracket Capacitor |
|
- | |||||
| 1473 | WB27X5315 | Control, Power Module |
|
- | |||||
| 1477 | WB2X7065 | Shield |
|
- | |||||
| 1479 | WB2X7068 | Cover |
|
- | |||||
| 1485 | WB2X7233 | Shield Lamp |
|
- | |||||
| 1485 | WB2X6855 | Shield (film) |
|
- | |||||
| 1489 | WB10X5138 | Receptacle Prong |
|
- | |||||
| 1490 | WB49X5297 | Plenum Air |
|
- | |||||
| 1491 | WB2X7236 | Housing Fan |
|
- | |||||
| 1492 | WB2X7079 | Blade Fan |
|
- | |||||
| 1494 | WB2X7082 | Support Shelf (front) |
|
- | |||||
| 1494 | WB2X7080 | Side Support Rh |
|
- | |||||
| 1494 | WB2X7098 | Support Shelf (rear) |
|
- | |||||
| 1494 | WB2X7081 | Side Support Lh |
|
- | |||||
| 1495 | WB2X7083 | Support Switch Top |
|
- | |||||
| 1496 | WB2X7084 | Support Switch Bottom |
|
- | |||||
| 1497 | WB2X7085 | Support Switch |
|
- | |||||
| 1498 | WB2X7086 | Barrier |
|
- | |||||
| 1500 | WB2X7509 | Support Rack |
|
- | |||||
| 1502 | WB2X7292 | Pulley |
|
- | |||||
| 1503 | WB2X6844 | Pin Cotter |
|
- | |||||
| 1506 | WB17X5078 | Housing Socket Pkg 5 Pin |
|
- | |||||
| 1506 | WB17X5077 | Housing Socket Pkg 7 Pin |
|
- | |||||
| 1507 | WB48X5080 | Rack |
|
- | |||||
| 1510 | WB17X5076 | Conn Blk Smart Bd (9pin) |
|
- | |||||
| 1514 | WB2X7510 | Spacer Rack |
|
- | |||||
| 1516 | WB7X6798 | Label Menu Code |
|
- | |||||
| 1517 | WB2X7232 | Bracket Mounting |
|
- | |||||
| 1518 | WB49X5295 | Cover Back |
|
- | |||||
| 1519 | WB7X6799 | Trim |
|
- | |||||
| 1520 | WB2X7303 | Bracket Stop |
|
- | |||||
| 1527 | WB2X7526 | Barrier |
|
- | |||||
| 1601 | WB7X6796 | Trim Crystal |
|
- | |||||
| 1622 | WB24X5093 | Switch, Light |
|
- | |||||
| 1626 | CF15FB | Fuse (Replaces: WB27X7) |
|
Immediately | $ 3.63 | ||||
| 1643 | WB27X5236 | Transformer |
|
- | |||||
| 1654 | WB27X5241 | Key Panel Asm |
|
- | |||||
| 1655 | WB27X5240 | Smart Board & Display |
|
- | |||||
| 1656 | WB2X7235 | Extension Frame |
|
- | |||||
| 1657 | WB2X7229 | Cover |
|
- | |||||
| 1660 | WB2X7227 | Bracket Touch Board |
|
- | |||||
| 1680 | WB2X7587 | Stand Off Circuit Board |
|
- | |||||
| 1684 | WB2X7511 | Barrier |
|
- | |||||
| 1800 | WB56X5925 | Door Asm |
|
- | |||||
| 1801 | WB15X5139 | Handle |
|
- | |||||
| 1802 | WB1X5580 | Screw Mtg Handle |
|
- | |||||
| 1823 | WB10X5133 | Support Hinge |
|
- | |||||
| 1824 | WB1X5581 | Screw Torx |
|
- | |||||
| 1835 | WB1X5584 | Screw Mtg Hinge |
|
- | |||||
| 32767 | WB26X5071 | Motor, Stirrer |
|
- | |||||
| 32767 | WB27X5230 | Varistor |
|
- | |||||
| 32767 | WB7X5645 | Trim Cooktop Front |
|
- | |||||
| 32767 | WB1X5552 | Washer |
|
- | |||||
| 32767 | WB1X5520 | Speednut |
|
- | |||||
| 32767 | WB26X5060 | Motor, Blower |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | WB1X5577 | Speednut |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 32767 | WZ04X0361 | Scr 8-18x5/8 |
|
- | |||||
| 32767 | CF15FB | Fuse (Replaces: WB27X7) |
|
Immediately | $ 3.63 | ||||
| 32767 | WB27X5212 | Capacitor |
|
- | |||||
| 32767 | WB24X5157 | Switch, Monitor |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WB19X5271 | Timer |
|
- | |||||
| 32767 | WB27X5215 | Transformer, Hi-voltage |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB27X5246 | Control, Power Module |
|
- | |||||
| 32767 | WZ04X0421 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 32767 | WB2X1222 | Pad |
|
- | |||||
| 32767 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 32767 | WB27X5219 | Thermostat |
|
- | |||||
| 32767 | WB27X5142 | Magnetron |
|
- | |||||
| 32767 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WZ02X0546 | Scr 8-32 M Phr 1/2 S |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WB20X5045 | Probe |
|
- | |||||
| 32767 | WB1X5497 | Scr 10-16 Ab Ihw 1/2 S |
|
- | |||||
| 32767 | WZ06X0082 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 32767 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 32767 | WZ04X0217 | Scr 6-20 B Hxw 1/4 S |
|
- | |||||
| 32767 | WB1X5582 | Screw Mtg Handle |
|
- | |||||
| 32767 | WB24X5103 | Switch, Door |
|
- | |||||
| 32767 | 11QBP0235 | Rectifier (Replaces: WB27X5070) |
|
$ 15.33 | |||||
| 32767 | WZ10X0114 | Lockwasher |
|
- | |||||
| 32767 | WZ04X0348 | Scr 10-16 B Sl 1-1/8 S |
|
- | |||||
| 32767 | WB2X6496 | Insulation |
|
- | |||||
| 32767 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 32767 | WB27X5240 | Smart Board & Display |
|
- | |||||
| 32767 | WZ04X0314 | Scr 8-18 Ab Hxs 1/4 S |
|
- | |||||
| 32767 | WZ04X0232 | Scr 8-18 Ab Hxs 3/8 S |
|
- | |||||
| 32767 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WB1X528 | Speednut |
|
- |
