Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WB62X5290 Cooktop Wh Appelez-nous -
1 WB62X5293 Cooktop Ad Appelez-nous -
1 WB62X5292 Cooktop Ha Appelez-nous -
6 WB2X1185 Clip Mtg Lamp Appelez-nous -
7 WB25X65 Jewel Appelez-nous -
8 WB24X174 Switch, Latch Release Appelez-nous -
9 WB7X6677 End Cap Lh Appelez-nous -
9 WB7X6676 End Cap Rh Appelez-nous -
21 WB49X5293 Cover Back Appelez-nous -
22 WB7X6779 Deflector Appelez-nous -
26 WB7X1004 Trim Cooktop Appelez-nous -
113 WB2X2988 Clip Trim Appelez-nous -
136 WB7X6874 Insert Trim Appelez-nous -
137 WB7X1010 Trim & Clip Asm Appelez-nous -
138 WB8X164 Socket Fluorescent Lamp Appelez-nous -
150 WB30X218 Surface Unit, 6" Appelez-nous -
151 WB32X52 Center Trim 6" Unit Appelez-nous -
154 WB32X5051 Pan 6" Porc. Gray Appelez-nous -
155 WB31X5015 Trim Ring 6" Appelez-nous -
156 PS240M Surface Unit, 8"   (Replaces: WB30X219) In-Stock Immediately $ 44.95

157 WB32X51 Center Trim 8" Unit Appelez-nous -
158 WB32X5052 Pan 8" Porc. Gray Appelez-nous -
160 WB17X5051 Receptacle Asm Appelez-nous -
160 WB1X5355 Screw Recept Terminal Appelez-nous -
160 WB5X5026 Spring Contact Pkg Appelez-nous -
161 WB2X6171 Insulator Appelez-nous -
162 WB2X6172 Clip Insulator Appelez-nous -
164 WB31X5012 Trim Ring 8" Appelez-nous -
250 WB2X3229 Barrier Bakeunit Opening Appelez-nous -
251 WB56X5861 Frame Front Appelez-nous -
252 WB2X6768 Panel Filler Appelez-nous -
253 WB49X5149 Box Cooktop Appelez-nous -
254 WB38X5039 Body Vent Appelez-nous -
255 WB7X552 Trim Latch Appelez-nous -
256 WB1X5516 Leveling Leg Appelez-nous -
258 WB39X5011 Guide Drawer Rh Appelez-nous -
258 WB39X5010 Guide Drawer Lh Appelez-nous -
259 WB2X831 Slide Guide Appelez-nous -
260 WB10X5092 Hinge Lever Asm Rh & Lh Appelez-nous -
261 WB10X5091 Support Hinge Lh Appelez-nous -
261 WB10X5090 Support Hinge Rh Appelez-nous -
263 WG02A00596 Pin Hinge   (Replaces: WB2X6195) Special Order $ 4.20

264 WB2X1082 Pin Hinge Retainer Appelez-nous -
265 WB2X6342 Guide Hinge Lever Appelez-nous -
266 WB2X2506 Hook Door Spring Appelez-nous -
267 WB9X5076 Spring Door Appelez-nous -
268 WB29X5012 Smoke Elim & Tube Asm Appelez-nous -
274 WB2X6191 Bracket Knockout Appelez-nous -
275 WB2X6655 Cover Terminal Block Appelez-nous -
276 WB49X5161 Cover Back Appelez-nous -
277 WB24X105 Switch, Oven Light Appelez-nous -
279 WB8X191 Receptacle Appelez-nous -
280 WX12X1510 Lamp 40w Appliance Appelez-nous -
281 WB2X3466 Guard Lamp Appelez-nous -
282 WB2X6215 Clamp Harness Appelez-nous -
282 WB24X5138 Switch, Thermal (tls) Appelez-nous -
283 WB2X3164 Plate Appelez-nous -
283 WB2X3163 Gasket Special Order $ 22.50

291 WB2X1546 Ballast Appelez-nous -
309 WB2X6767 Hook Wire Appelez-nous -
310 WB49X5156 Guard Lower Appelez-nous -
311 WB2X6187 Support Oven Appelez-nous -
312 WB49X5222 Guard Upper Lh Appelez-nous -
312 WB49X5221 Guard Upper Rh Appelez-nous -
348 WB2X646 Plate Ground Appelez-nous -
350 WB2X6546 Insulation Door Appelez-nous -
351 WB2X6270 Spacer Door Appelez-nous -
352 WB2X6547 Gasket Door Appelez-nous -
353 WB2X6573 Pad Trim Appelez-nous -
354 WB9X154 Strike Spring Appelez-nous -
355 WB55X5244 Panel Inner Appelez-nous -
356 WB2X6574 Clip Trim (4) Appelez-nous -
357 WB1X558 Screw Appelez-nous -
358 WB2X7189 Reflector Panel Appelez-nous -
358 WB36X5379 Glass Black Appelez-nous -
359 WB7X5625 Trim Door Appelez-nous -
360 WB55X5218 Guard Insulation Appelez-nous -
361 WZ04X0298 Screw Mtg Handle Appelez-nous -
362 WB1X119 Washer Screw Appelez-nous -
363 WB2X6204 Spacer Panel Appelez-nous -
364 WB2X6243 Grommet Handle Appelez-nous -
365 WB15X5102 Handle Appelez-nous -
373 WB36X5244 Window Appelez-nous -
374 WB2X3048 Gasket Fiberglass Appelez-nous -
385 WB7X5631 Cap Trim Appelez-nous -
386 WB15X5124 Handle Appelez-nous -
387 WB2X6575 Clip Trim Appelez-nous -
389 WB7X5623 Trim Door Appelez-nous -
390 WB7X5624 Trim Toggle Appelez-nous -
391 WB2X3052 Toggle Appelez-nous -
392 WB2X5217 Cam Link Appelez-nous -
393 WB9X5083 Cam Spring Appelez-nous -
394 WB7X5630 Trim Top Appelez-nous -
395 WB2X3053 Clip Mtg Door Trims Appelez-nous -
396 WB56X5678 Panel Door Appelez-nous -
402 WB1X591 Speednut Appelez-nous -
403 WB2X7188 Bracket Window Appelez-nous -
404 WB36X5477 Crystal Window Appelez-nous -
406 WB2X6238 Bracket Door Appelez-nous -
407 WB7X722 Trim Crystal Appelez-nous -
451 WB2X6740 Bracket Drawer Appelez-nous -
451 WB58X5005 Drawer Asm Appelez-nous -
452 WB2X840 Slide Top Appelez-nous -
453 WB2X841 Slide Bottom Appelez-nous -
454 WB2X6208 Bumper Appelez-nous -
456 WZ04X0209 Handle Screw Appelez-nous -
457 WB56X5799 Drawer Panel Blk Appelez-nous -
458 WB7X5659 Trim Drawer Appelez-nous -
520 WB2X6496 Insulation Appelez-nous -
520 WB53X5087 Oven Liner Appelez-nous -
522 WB2X6209 Clip Trim Appelez-nous -
523 WG02F04576 Lamp Cover Asm   (Replaces: WB36X192) Special Order $ 20.65

526 WB2X3165 Hanger Appelez-nous -
527 WB2X3253 Mullion Unit Clip Appelez-nous -
527 WB44X186 Mullion Unit Appelez-nous -
528 WB48X5044 Rack Oven Appelez-nous -
529 WB49X88 Broil Pan Appelez-nous -
530 WB48X5002 Broiler Pan Rack Appelez-nous -
650 UB592 Bake Unit 208/240v   (Replaces: WB44X5082) In-Stock Immediately $ 49.95

651 UT316 Broil Unit 208/240v   (Replaces: WB44X185) In-Stock Immediately $ 49.95

652 WB2X1452 Support Broil Appelez-nous -
700 WB14X5035 Latch Appelez-nous -
702 WB3X5667 Knob Latch Appelez-nous -
703 WG02A00753 Retainer Knob   (Replaces: WB2X2030) Special Order $ 4.20

704 WB2X3174 Channel Latch Appelez-nous -
705 WB2X3175 Channel Locking Appelez-nous -
706 WB2X3159 Pawl Locking Appelez-nous -
707 WB2X3176 Plate Mounting Appelez-nous -
708 WB24X183 Switch, Latch Appelez-nous -
709 WB24X197 Solenoid Appelez-nous -
710 WB9X148 Spring Appelez-nous -
711 WB2X6212 Pivot Stud Appelez-nous -
712 WB2X1800 Retainer Ring Appelez-nous -
717 WB2X6911 Bracket Latch Appelez-nous -
865 WB2X7221 Support Lh Appelez-nous -
865 WB2X7220 Support Rh Appelez-nous -
866 WB56X5916 Cover Support Rh Ad Appelez-nous -
866 WB56X5919 Cover Support Lh Ha Appelez-nous -
866 WB56X5920 Cover Support Lh Ad Appelez-nous -
866 WB56X5917 Cover Support Lh Wh Appelez-nous -
866 WB56X5913 Cover Support Rh Wh Appelez-nous -
866 WB56X5915 Cover Support Rh Ha Appelez-nous -
867 WB49X5291 Panel Lamp Appelez-nous -
868 WB56X5907 Panel Crystal Rh Ha Appelez-nous -
868 WB56X5909 Panel Crystal Lh Wh Appelez-nous -
868 WB56X5911 Panel Crystal Lh Ha Appelez-nous -
868 WB56X5912 Panel Crystal Lh Ad Appelez-nous -
868 WB56X5905 Panel Crystal Rh Wh Appelez-nous -
868 WB56X5908 Panel Crystal Rh Ad Appelez-nous -
907 WB2X1666 Filter Appelez-nous -
914 WB2X7218 Post Rh Appelez-nous -
914 WB2X7219 Post Lh Appelez-nous -
934 WB36X5509 Crystal & Trim Asm Appelez-nous -
950 WB9X137 Spring Appelez-nous -
962 WB7X6795 Trim Support Rh Appelez-nous -
962 WB7X6794 Trim Support Lh Appelez-nous -
991 WB2X3006 Clip Tubular Appelez-nous -
1458 WB17X5061 Terminal Blk Asm (3 Pin) Appelez-nous -
1458 WB17X5073 Terminal Blk Asm (1 Pin) Appelez-nous -
1645 WB2X7006 Clamp Harness Appelez-nous -
32767 WB62X5326 Cooktop Ds Appelez-nous -
32767 WB56X6007 Panel Crystal Rh Sl Appelez-nous -
32767 WB56X6008 Panel Crystal Lh Ds Appelez-nous -
32767 WB56X6005 Cover Support Lh Sl Appelez-nous -
32767 WB56X6004 Cover Support Lh Ds Appelez-nous -
32767 WB62X5327 Cooktop Sl Appelez-nous -
32767 WB56X6002 Cover Support Rh Ds Appelez-nous -
32767 WB2X1659 Speednut Appelez-nous -
32767 WB56X6003 Cover Support Rh Sl Appelez-nous -
32767 WB56X6009 Panel Crystal Lh Sl Appelez-nous -
32767 WB56X6006 Panel Crystal Rh Ds Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

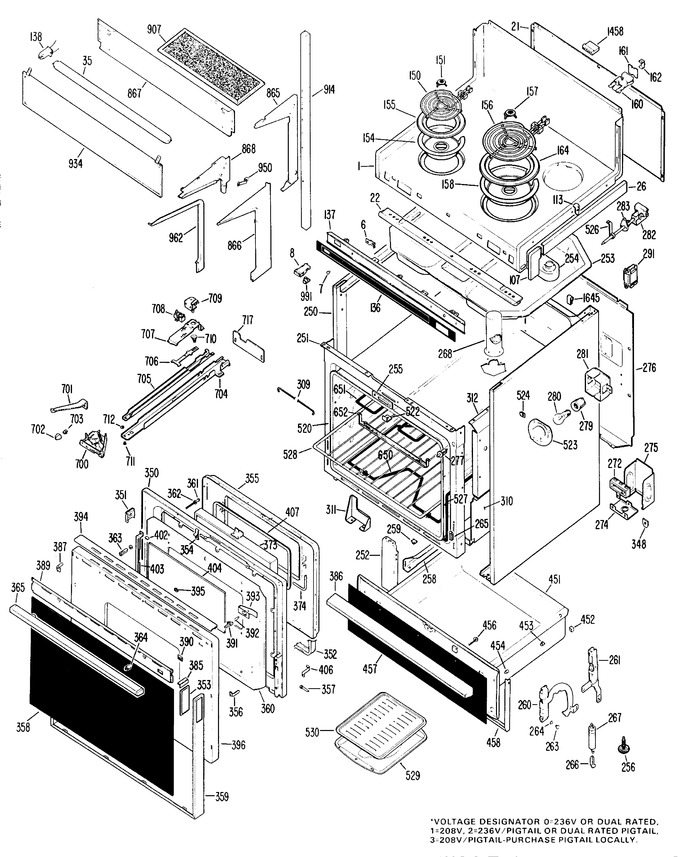

Diagram for JHP60G*04
