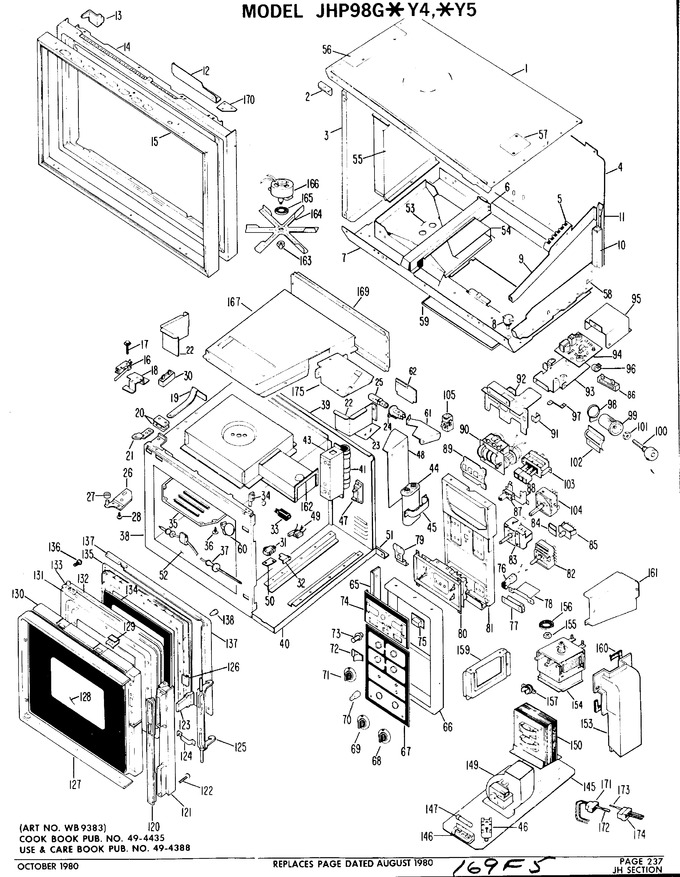

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB56X5849 | Case Top Ad |
|
- | |||||
| 1 | WZ04X0336 | Scr 8-18 Ab Ovr 3/8 S#6h |
|
- | |||||
| 1 | WB56X5845 | Case Top Wh |
|
- | |||||
| 1 | WB56X5846 | Case Top Cf |
|
- | |||||
| 1 | WB56X5847 | Case Top Fa |
|
- | |||||
| 1 | WB56X5848 | Case Top Ha |
|
- | |||||
| 2 | WB2X6653 | Speednut |
|
- | |||||
| 2 | WB2X6621 | Bracket Mt. Top And Fram |
|
- | |||||
| 3 | WB56X5797 | Case Side Rh |
|
- | |||||
| 3 | WB1X365 | Speednut |
|
- | |||||
| 3 | WZ02X6642 | Angle Brace |
|
- | |||||
| 3 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 3 | WB56X5796 | Case Side Rh |
|
- | |||||
| 3 | WB56X5794 | Case Side Rh - Cf |
|
- | |||||
| 3 | WB56X5692 | Case Side Lh - Wh |
|
- | |||||
| 3 | WB56X5696 | Case Side Lh - Ad |
|
- | |||||
| 3 | WB56X5695 | Case Side Lh - Ha |
|
- | |||||
| 3 | WB56X5694 | Case Side Lh - Fa |
|
- | |||||
| 3 | WB56X5795 | Case Side Rh - Fa |
|
- | |||||
| 3 | WB56X5693 | Case Side Lh - Cf |
|
- | |||||
| 3 | WB56X5793 | Case Side Rh - Wh |
|
- | |||||
| 4 | WB56X5684 | Back Cover |
|
- | |||||
| 4 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 5 | WB17X167 | Block Term Distribution |
|
- | |||||
| 5 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 6 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 6 | WB2X6834 | Slide Oven |
|
- | |||||
| 7 | WB55X5231 | Bottom, Case |
|
- | |||||
| 7 | WB2X6621 | Bracket Mt. Top And Fram |
|
- | |||||
| 8 | WB1X246 | Switch Nut |
|
- | |||||
| 8 | WB24X5093 | Switch, Light |
|
- | |||||
| 9 | WB2X6842 | Brace Oven |
|
- | |||||
| 10 | WB2X6620 | Post Lh |
|
- | |||||
| 10 | WB2X6619 | Post Rh |
|
- | |||||
| 11 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 11 | WB2X3001 | Post Spacer |
|
- | |||||
| 12 | WB2X6922 | Guard - Rh |
|
- | |||||
| 13 | WB2X6924 | Barrier Rh |
|
- | |||||
| 13 | WB2X6923 | Barrier, Lh |
|
- | |||||
| 14 | WB56X5850 | Frame,asmby |
|
- | |||||
| 15 | WB7X6711 | Trim, Frame |
|
- | |||||
| 15 | WZ04X0322 | Scr 8 A Ihw 3/8 S |
|
- | |||||
| 16 | WB2X6557 | Barrier |
|
- | |||||
| 16 | WB24X5102 | Switch Monitor |
|
- | |||||
| 17 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 18 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 18 | WB2X6697 | Bracket, Door Switch |
|
- | |||||
| 19 | WB10X5122 | Lever Door |
|
- | |||||
| 20 | WZ05X0139 | Scr 8-32 T Hxw 7/8 S |
|
- | |||||
| 20 | WB10X5117 | 862a164p001 |
|
- | |||||
| 20 | WB10X5123 | Guide, Lever |
|
- | |||||
| 21 | WB1X438 | Screw Washer Asm |
|
- | |||||
| 21 | WB10X5110 | Hinge Arm |
|
- | |||||
| 22 | WB2X6853 | Baffle |
|
- | |||||
| 23 | WB2X6855 | Shield (film) |
|
- | |||||
| 24 | WB8X5084 | Socket, Lamp |
|
- | |||||
| 26 | WB10X5113 | Bracket, Hinge Lower |
|
- | |||||
| 26 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 27 | WB2X6473 | Washer |
|
- | |||||
| 28 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 30 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 30 | WB1X455 | Speednut, Clamp |
|
- | |||||
| 30 | WB2X6609 | Clamp Harness |
|
- | |||||
| 30 | WB27X5071 | Resistor |
|
- | |||||
| 31 | WZ05X0240 | Screw, Mtg. Switch |
|
- | |||||
| 31 | WB24X5101 | Switch Latch Upper |
|
- | |||||
| 32 | WB2X6698 | Cover, Switch (2 Each) |
|
- | |||||
| 33 | WB2X2954 | Sleeve |
|
- | |||||
| 33 | WB20X5042 | Receptacle Probe |
|
- | |||||
| 34 | WB10X5121 | Strike Latch |
|
- | |||||
| 34 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 35 | WB56X5639 | Cover Sitbr |
|
- | |||||
| 36 | WB1X5453 | Fastener |
|
- | |||||
| 37 | WB20X5041 | Probe |
|
- | |||||
| 38 | WB53X5081 | Cavity And Faceplate (wi |
|
- | |||||
| 39 | WB49X5217 | Back Assembly, Case |
|
- | |||||
| 39 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 39 | WB2X6486 | Pad (cut To Size)mounts |
|
- | |||||
| 40 | WB49X5151 | Base Assembly |
|
- | |||||
| 41 | WB27X5094 | Resistor |
|
- | |||||
| 43 | WB2X6746 | Bracket Assembly, Resist |
|
- | |||||
| 43 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 44 | WB27X5120 | Capacitor |
|
- | |||||
| 45 | WB2X6393 | Strap, Capacitor |
|
- | |||||
| 46 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 46 | WB27X5056 | Relay |
|
- | |||||
| 47 | 11QBP0235 | Rectifier (Replaces: WB27X5070) |
|
$ 15.33 | |||||
| 47 | WB2X6524 | Sleeve |
|
- | |||||
| 47 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 48 | WB2X6612 | Bracket, Mt. Relay-capac |
|
- | |||||
| 48 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 49 | WB18X5053 | Housing Terminal |
|
- | |||||
| 50 | WB2X6699 | Barrier Switch |
|
- | |||||
| 51 | WB2X6658 | Angle Stop |
|
- | |||||
| 52 | WB48X5056 | Shelf Oven |
|
- | |||||
| 53 | WB49X5209 | Baffle Duct |
|
- | |||||
| 54 | WB49X5211 | Duct Bottom |
|
- | |||||
| 54 | WB2X6755 | Gasket (cut To Size) |
|
- | |||||
| 55 | WB49X5210 | Duct Side |
|
- | |||||
| 56 | WB2X6837 | Cover Fa |
|
- | |||||
| 56 | WB2X6835 | Cover Wh |
|
- | |||||
| 56 | WB2X6839 | Cover Ad |
|
- | |||||
| 56 | WB2X6838 | Cover Ha |
|
- | |||||
| 56 | WB2X6836 | Cover Cf |
|
- | |||||
| 57 | WB2X6725 | Recep. Cover Cf |
|
- | |||||
| 57 | WB2X6724 | Recep. Cover Wh |
|
- | |||||
| 57 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 57 | WB2X6726 | Recep. Cover Fa |
|
- | |||||
| 57 | WB2X6727 | Cover |
|
- | |||||
| 57 | WB2X6728 | Recep. Cover Ad |
|
- | |||||
| 58 | WB2X6841 | Brace Angle |
|
- | |||||
| 59 | WB2X6840 | Filler Filter Opening |
|
- | |||||
| 60 | WB2X6852 | Plug Hole |
|
- | |||||
| 61 | WB2X6859 | Bracket, Socket Lamp |
|
- | |||||
| 62 | WB2X6856 | Cover |
|
- | |||||
| 65 | WZ04X0237 | Screw |
|
- | |||||
| 65 | WB2X6636 | Trim Crystal |
|
- | |||||
| 66 | WB1X580 | Speednut |
|
- | |||||
| 66 | WB2X6653 | Speednut |
|
- | |||||
| 66 | WB2X6634 | Pad, Control Trim (botto |
|
- | |||||
| 66 | WZ04X0237 | Screw |
|
- | |||||
| 66 | WB2X6635 | Trim, Control Panel |
|
- | |||||
| 67 | WB36X5370 | Crystal |
|
- | |||||
| 67 | WB2X6654 | Speed Nut |
|
- | |||||
| 68 | WB3X479 | Knob Oven Switch |
|
- | |||||
| 69 | WB3X485 | Knob, Thermostat |
|
- | |||||
| 70 | WB3X218 | Knob, Timer |
|
- | |||||
| 71 | WB3X486 | Knob Surface Units |
|
- | |||||
| 72 | WB3X5578 | Knob Switch Slide |
|
- | |||||
| 73 | WB3X5562 | Knob, Timer Set |
|
- | |||||
| 74 | WB36X5372 | Insert |
|
- | |||||
| 74 | WB2X6656 | Speednut, Mt. Insert |
|
- | |||||
| 75 | WB3X5579 | Button, Push Switch, Sta |
|
- | |||||
| 76 | WB2X6624 | Bracket Lamp Neon |
|
- | |||||
| 76 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 76 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 77 | WB2X6623 | Catch, Control Panel |
|
- | |||||
| 78 | WB2X6633 | Barrier |
|
- | |||||
| 79 | WB2X6632 | Slide Indicator, Color |
|
- | |||||
| 80 | WB19X5239 | Timer |
|
- | |||||
| 80 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 81 | WB21X6631 | Bracket, Control Mount |
|
- | |||||
| 82 | WB22X5093 | Switch, Oven |
|
- | |||||
| 82 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 83 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 83 | WB2X6454 | Sleeve |
|
- | |||||
| 83 | WB24X184 | Thermostat, Dual |
|
- | |||||
| 84 | WB2X6630 | Spacer, Push Button |
|
- | |||||
| 85 | WB24X5083 | Start Switch |
|
- | |||||
| 86 | WB27X5147 | Resistor |
|
- | |||||
| 87 | WB24X5073 | Switch Slide |
|
- | |||||
| 87 | WZ04X0279 | Scr 6-20 Ab Hxw 1/4 S |
|
- | |||||
| 88 | WB2X6629 | Bracket, Slide Sw. |
|
- | |||||
| 89 | WB2X6510 | Mask, Timer |
|
- | |||||
| 90 | WZ04X0209 | Handle Screw |
|
- | |||||
| 90 | WB27X5052 | Timer |
|
- | |||||
| 91 | WB2X6628 | Spacer Bracket |
|
- | |||||
| 91 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 92 | WB2X6625 | Instrument Br. |
|
- | |||||
| 93 | WB2X6637 | Bracket, Mt. Circuit Boa |
|
- | |||||
| 94 | WB24X5088 | Circuit Board Asm |
|
- | |||||
| 94 | WZ04X0314 | Scr 8-18 Ab Hxs 1/4 S |
|
- | |||||
| 95 | WZ04X0314 | Scr 8-18 Ab Hxs 1/4 S |
|
- | |||||
| 95 | WB2X6514 | Cover, Circuit Board |
|
- | |||||
| 96 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 96 | WB2X3415 | Clamp, Wiring |
|
- | |||||
| 97 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 97 | WB2X6703 | Support, Circuit Board |
|
- | |||||
| 98 | WB2X6640 | Guide, Drum |
|
- | |||||
| 98 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 99 | WB1X5475 | Clip, Drum To Pot. Shaft |
|
- | |||||
| 99 | WB2X6638 | Drum, Temperature |
|
- | |||||
| 100 | WB24X5092 | Potentiometer |
|
- | |||||
| 101 | WB1X443 | Nut |
|
- | |||||
| 102 | WB2X6639 | Mask, Drum |
|
- | |||||
| 102 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 103 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 103 | WB24X5119 | Switch, Power Level |
|
- | |||||
| 104 | WB21X228 | Switch, Inf Surface Unit |
|
- | |||||
| 104 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 104 | WB2X6494 | Barrier |
|
- | |||||
| 104 | WB21X241 | Inf. Ht. Sw. 120v Small |
|
- | |||||
| 105 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- | |||||
| 120 | WB15X5113 | Handle |
|
- | |||||
| 121 | WB7X5635 | Trim Handle |
|
- | |||||
| 122 | WB1X5462 | Screw Mtg. Handle - Trim |
|
- | |||||
| 123 | WB3X5583 | Button Latch |
|
- | |||||
| 124 | WB2X6644 | Spring Latch |
|
- | |||||
| 125 | WB10X5112 | Latch Bar As |
|
- | |||||
| 126 | WB2X6580 | Shim |
|
- | |||||
| 126 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 126 | WB10X5111 | Hinge Latch |
|
- | |||||
| 127 | WB1X5505 | Speednut |
|
- | |||||
| 127 | WB7X5634 | Trim, Door |
|
- | |||||
| 127 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 129 | WB2X6643 | Clip, Window |
|
- | |||||
| 130 | WB56X5686 | Panel Door |
|
- | |||||
| 131 | WB55X5227 | Linr Choke A |
|
- | |||||
| 132 | WB2X6700 | Gasket Door Outer |
|
- | |||||
| 133 | WB2X6476 | Gasket - Small |
|
- | |||||
| 134 | WB36X5415 | Crystal Innr |
|
- | |||||
| 134 | WB2X6474 | Pad. Window (4 Ea)(cut T |
|
- | |||||
| 135 | WB55X5232 | Choke Cover |
|
- | |||||
| 136 | WB1X5518 | Scr 8-16 Ab Plt 11/64 S |
|
- | |||||
| 137 | WB7X5643 | Trim Filler, Inner Door |
|
- | |||||
| 137 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 138 | WB2X6909 | Bumper |
|
- |
