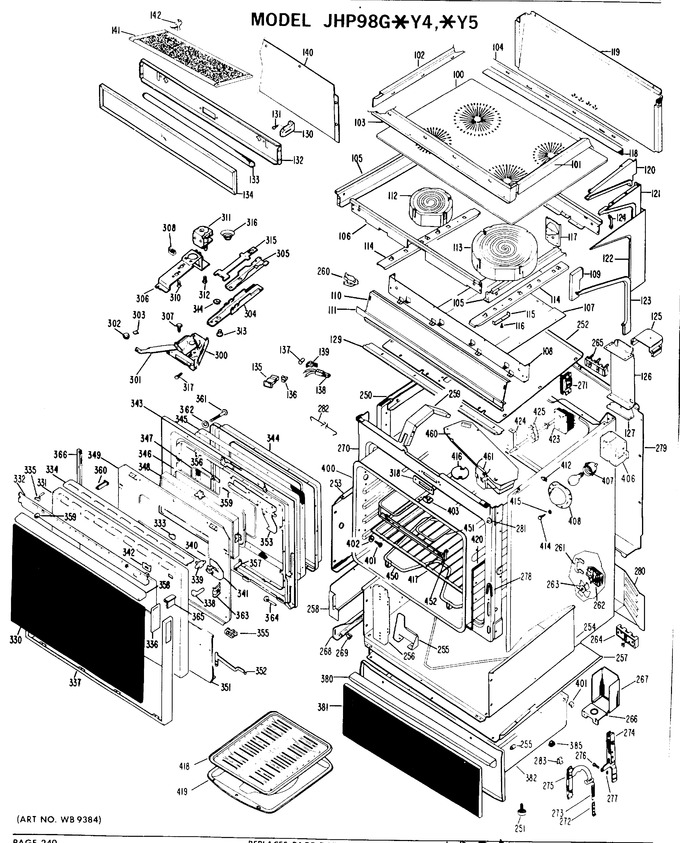

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	WB62X1384		Cooking Panel		Appelez-nous	-
101	WB7X5650		Frame Side R.h.		Appelez-nous	-
102	WB7X5651		Frame Side L.h.		Appelez-nous	-
103	WB7X5652		Frame Front		Appelez-nous	-
104	WZ04X0368		Screw, Mtg. Clip		Appelez-nous	-
104	WZ06X0092		Screw/washer Mtg. Frame To Can Back		Appelez-nous	-
104	WB2X3235		Clip, Mtg. Frame To Can		Appelez-nous	-
104	WB7X5653		Frame Rear		Appelez-nous	-
104	WZ04X0289		Screw, Mtg. Frame		Appelez-nous	-
105	WB49X343		Can Side R.h. & L.h.		Appelez-nous	-
106	WB49X344		Can, Front & Back		Appelez-nous	-
106	WB2X3232		Pad, Between Frame & Can		Appelez-nous	-
106	WZ04X0231		Screw, Mtg. Can Front To Can Side		Appelez-nous	-
107	WB49X5167		Cover Bottom		Appelez-nous	-
107	WZ04X0231		Screw Mtg. Cover		Appelez-nous	-
108	WB49X345		Support, Front		Appelez-nous	-
108	WZ04X0231		Screw W/washer Mtg. Spt To Frt Frame		Appelez-nous	-
109	WB7X1096		End Cap L.h.		Appelez-nous	-
109	WB7X1095		End Cap R.h.		Appelez-nous	-
109	WZ04X0134		Screw, Mtg. End Cap		Appelez-nous	-
110	WB7X5655		Trim, Front		Appelez-nous	-
110	WZ05X0134		Screw, Mtg. Trim		Appelez-nous	-
111	WZ04X0231		Screw, Mtg. Support		Appelez-nous	-
111	WB2X3224		Support, Rear		Appelez-nous	-
111	WB7X5656		Insert, Trim		Appelez-nous	-
112	WB30X5064		Unit, Small-120v Rr-l.f.		Appelez-nous	-
113	WB30X5063		Unit, Medium-240v L.r.		Appelez-nous	-
113	WB18X5050		Lead Wire, Heating Units		Appelez-nous	-
113	WB30X5065		Unit, Large-240v R.f.		Appelez-nous	-
114	WB2X3233		Support Units		Appelez-nous	-
114	WB1X528		Speednut, Mtg. Support		Appelez-nous	-
114	WZ04X0231		Screw, Mtg. Support		Appelez-nous	-
115	WB2X6337		Spring, Mtg. Support		Appelez-nous	-
116	WZ04X0231		Screw, Mtg. Spring		Appelez-nous	-
118	WS01A01150		Screw, Mtg. Trim   (Replaces: WB1X5364)				$ 3.97
118	WB7X5654		Trim, Cooktop Rear		Appelez-nous	-
119	WB49X5195		Panel, Backsplash Ad		Appelez-nous	-
119	WB49X5191		Panel, Backsplash Wh		Appelez-nous	-
119	WB49X5192		Panel, Backsplash Cf		Appelez-nous	-
119	WB49X5193		Panel, Backsplash Fa		Appelez-nous	-
119	WB49X5194		Panel, Backsplash Ha		Appelez-nous	-
119	WZ04X0231		Screw, Mtg. Panel		Appelez-nous	-
120	WB7X1179		Panel, Crystal Rh, Wh		Appelez-nous	-
120	WB7X1188		Panel, Crystal Lh, Ad		Appelez-nous	-
120	WB7X1187		Panel, Crystal Lh, Ha		Appelez-nous	-
120	WB7X1186		Panel, Crystal Lh, Fa		Appelez-nous	-
120	WB7X1185		Panel, Crystal Lh, Cf		Appelez-nous	-
120	WB7X1184		Panel, Crystal Lh, Wh		Appelez-nous	-
120	WB7X1183		Panel, Crystal Rh, Ad		Appelez-nous	-
120	WB7X1182		Panel, Crystal Rh, Ha		Appelez-nous	-
120	WB7X1181		Panel, Crystal Rh, Fa		Appelez-nous	-
120	WB7X1180		Panel, Crystal Rh, Cf		Appelez-nous	-
121	WB2X6736		Support, Rh		Appelez-nous	-
121	WB2X6737		Support, Lh		Appelez-nous	-
122	WB7X1172		Cover, Support Rh, Ha		Appelez-nous	-
122	WB7X1173		Cover, Support Rh, Ad		Appelez-nous	-
122	WB7X1174		Cover, Support Lh, Wh		Appelez-nous	-
122	WB7X1178		Cover, Support Lh, Ad		Appelez-nous	-
122	WB7X1169		Cover, Support Rh, Wh		Appelez-nous	-
122	WB7X1177		Cover, Support Lh, Ha		Appelez-nous	-
122	WB7X1175		Cover, Support Lh, Cf		Appelez-nous	-
122	WB7X1171		Cover, Support Rh, Fa		Appelez-nous	-
122	WB7X1176		Cover, Support Lh, Fa		Appelez-nous	-
122	WB7X1170		Cover, Support Rh, Cf		Appelez-nous	-
123	WZ04X0336		Screw, Mtg. Trim		Appelez-nous	-
123	WB7X5657		Trim, Support R.h.		Appelez-nous	-
123	WB7X5658		Trim, Support L.h.		Appelez-nous	-
124	WB9X137		Spring, Latch		Appelez-nous	-
125	WB2X6738		Gasket, Cover To Panel		Appelez-nous	-
125	WB38X5056		Cover, Vent		Appelez-nous	-
126	WB38X5057		Vent Assembly		Appelez-nous	-
126	WB1X523		Rivet, Push		Appelez-nous	-
126	WB2X6739		Gasket, Vent To Cover		Appelez-nous	-
127	WB2X3223		Seal, Vent		Appelez-nous	-
129	WB7X1100		Deflector		Appelez-nous	-
129	WZ04X0231		Screw, Mtg. Deflector		Appelez-nous	-
130	WB8X164		Socket, Lamp		Appelez-nous	-
131	WZ05X0184		Screw, Mtg. Socket		Appelez-nous	-
132	WB49X347		Lamp Housing		Appelez-nous	-
132	WZ04X0209		Screw, Mtg. Housing		Appelez-nous	-
133	F20T12/CW		"f" Lamp		Appelez-nous	-
134	WB36X435		Crystal & Trim		Appelez-nous	-
135	WB1X246		Nut, Switch		Appelez-nous	-
135	WB24X174		Switch Latch Release		Appelez-nous	-
136	WB2X3006		Clip, Mtg. Trim		Appelez-nous	-
137	WB1X5505		Speednut Mtg. Jewel		Appelez-nous	-
137	WB25X65		Jewel, Lamp		Appelez-nous	-
138	WB2X1609		Lamp, Clean		Appelez-nous	-
138	WB2X1608		Lamp, Lock				$ 31.65
139	WB2X6239		Clip, Mtg. Lamp		Appelez-nous	-
140	WZ04X0231		Screw, Mtg. Cover		Appelez-nous	-
140	WB49X5181		Cover Back		Appelez-nous	-
141	WB2X1666		Filter		Appelez-nous	-
142	WB2X1665		Clip Filter		Appelez-nous	-
145	WB2X6920		Plate, Mtg. Components		Appelez-nous	-
146	WZ05X0184		Screw, Mtg. Fuse		Appelez-nous	-
146	WB27X91		Block, Fuse		Appelez-nous	-
146	WB2X6616		Barrier, Fuse		Appelez-nous	-
147	CF15FB		Fuse   (Replaces: WB27X7)			Immediately	$ 3.63
149	WZ04X0231		Screw, Mtg. Blower Assembly		Appelez-nous	-
149	WB21X5035		Motor & Blower Assembly		Appelez-nous	-
150	WB1X453		Screw, Mtg. Transformer		Appelez-nous	-
150	WB27X5096		Transformer		Appelez-nous	-
153	WB2X6921		Duct, Blower		Appelez-nous	-
154	WB27X5144		Magnetron Tube		Appelez-nous	-
155	WB1X5271		Nut, Mtg. Magnetron		Appelez-nous	-
156	WB2X6046		R.f. Gasket		Appelez-nous	-
157	WB27X5117		Thermostat		Appelez-nous	-
158	WB1X5347		Screw, Mtg. Magnetron		Appelez-nous	-
159	WB2X6756		Duct Front		Appelez-nous	-
160	WB2X6755		Gasket, Magnetron(cut To Size)		Appelez-nous	-
161	WB2X6757		Duct, Rear		Appelez-nous	-
162	WB2X6491		Gasket (cut To Size)		Appelez-nous	-
163	WB1X5450		Nut, Cap Mtg. Stirrer		Appelez-nous	-
163	WB1X586		Speednut Mtg. Stirrer		Appelez-nous	-
164	WB2X6479		Stirrer, Mode		Appelez-nous	-
165	WB2X6480		Gasket		Appelez-nous	-
166	WB26X5039		Motor Stirrer		Appelez-nous	-
166	WB1X5497		Screw Mtg. Motor		Appelez-nous	-
167	WB2X6919		Pad (cut To Size)		Appelez-nous	-
167	WB49X5231		Duct, Exhaust		Appelez-nous	-
169	WB49X5233		Duct Rear		Appelez-nous	-
169	WZ04X0304		Screw, Duct		Appelez-nous	-
170	WZ04X0231		Screw, Mtg. Trim		Appelez-nous	-
170	WB2X6614		Plate Trim, Top		Appelez-nous	-
171	WB17X160		Socket, Hood-oven		Appelez-nous	-
172	WB17X145		Pin-male, Hood-oven		Appelez-nous	-
173	WB17X146		Terminal, Hood-oven		Appelez-nous	-
174	WB17X159		Socket, Hood-oven		Appelez-nous	-
175	WB49X5232		Extension, Duct Exhaust		Appelez-nous	-
175	WB2X6659		Pad (cut To Size)		Appelez-nous	-
175	WB2X6919		Pad (cut To Size)		Appelez-nous	-
250	WB2X3229		Barrier		Appelez-nous	-
250	WB2X1742		Clamp Wiring Harness		Appelez-nous	-
250	WZ04X0231		Screw Mtg. Bake Unit Opg Bk. Barrier		Appelez-nous	-
251	WB1X5516		Leveling Leg		Appelez-nous	-
252	WB63X239		Top Insulation Guard		Appelez-nous	-
252	WZ04X0231		Screw Mtg. Top Insulation Guard		Appelez-nous	-
253	WB49X5221		Guard Upper Rh (y5 & Up)		Appelez-nous	-
253	WB49X5171		Guard Upper - Rh (y4)		Appelez-nous	-
253	WB49X5222		Guard Upper Lh (y5 & Up)		Appelez-nous	-
253	WB49X5172		Guard Upper - Lh (y4)		Appelez-nous	-
253	WZ04X0345		Screw Mtg. Guard		Appelez-nous	-
254	WZ04X0231		Screw, Mtg. Guard		Appelez-nous	-
254	WB49X5156		Guard, Lower		Appelez-nous	-
255	WB2X6187		Support Oven		Appelez-nous	-
256	WB2X6768		Panel, Filler		Appelez-nous	-
256	WZ04X0231		Screw, Mtg. Panel		Appelez-nous	-
257	WB49X5094		Cover, Plenum		Appelez-nous	-
257	WZ04X0231		Screw, Mtg. Cover		Appelez-nous	-
258	WB49X5093		Baffle, Hinge		Appelez-nous	-
259	WB2X6188		Air Cover, Rh		Appelez-nous	-
259	WB2X6189		Air Cover, Lh		Appelez-nous	-
259	WZ04X0231		Screw Mtg. Air Cover		Appelez-nous	-
260	WB24X208		Thermal Fan Switch		Appelez-nous	-
260	WZ04X0231		Screw Mtg. Switch		Appelez-nous	-
261	WB2X6190		Bracket, Fan		Appelez-nous	-
261	WZ04X0231		Screw Mtg. Bracket		Appelez-nous	-
262	WB26X17		Motor, Fan		Appelez-nous	-
262	WZ05X0173		Screw Mtg. Motor To Bracket		Appelez-nous	-
263	WB2X2002		Compression Ring		Appelez-nous	-
263	WB2X2285		Blade, Fan		Appelez-nous	-
264	WB2X646		Plate, Ground		Appelez-nous	-
264	WB17X168		Power Terminal Block		Appelez-nous	-
264	WZ04X0231		Screw Mtg. Plate		Appelez-nous	-
264	WZ04X0348		Screw Mtg. Block		Appelez-nous	-
265	WB17X167		Terminal Block, Distribution		Appelez-nous	-
265	WZ04X0384		Screw Mtg. Block		Appelez-nous	-
266	WS01A02255		Screw Mtg. Bracket   (Replaces: WB1X536)				$ 3.97
266	WB2X6191		Bracket Knockout		Appelez-nous	-
267	WB2X6655		Cover Terminal Block		Appelez-nous	-
267	WZ04X2132		Screw Mtg. Cover		Appelez-nous	-
268	WZ04X0231		Screw Mtg. Guide		Appelez-nous	-
268	WB39X5101		Drawer Guide Lh		Appelez-nous	-
268	WB39X5011		Drawer Guide Rh		Appelez-nous	-
269	WB2X831		Slide Guide		Appelez-nous	-
270	WZ04X0345		Screw Mtg. Front Frame		Appelez-nous	-
270	WB56X5863		Front Frame (y5 & Up)		Appelez-nous	-
270	WB56X1296		Front Frame (y4)		Appelez-nous	-
270	WB2X3240		Spacer		Appelez-nous	-
271	WZ04X0231		Screw Mtg. Ballast		Appelez-nous	-
271	WB2X1546		Ballast		Appelez-nous	-
272	WB2X2506		Hook, Door Spring		Appelez-nous	-
273	WB9X5076		Spring, Door		Appelez-nous	-
274	WB10X5090		Support Hinge - Rh		Appelez-nous	-
274	WB1X5497		Screw Mtg. Support - Bottom		Appelez-nous	-
274	WB1X570		Screw Mtg. Support - Top		Appelez-nous	-
274	WB10X5091		Support Hinge - Lh		Appelez-nous	-
275	WB10X5092		Hinge Lever Asm. Rh & Lh		Appelez-nous	-
276	WG02A00596		Hinge Pin   (Replaces: WB2X6195)				$ 4.20
277	WB2X1082		Retaining Ring		Appelez-nous	-
278	WB2X6342		Guide		Appelez-nous	-
279	WB2X6572		Cover Access		Appelez-nous	-
279	WZ04X0231		Screw Mtg. Cover		Appelez-nous	-
279	WZ04X0304		Screw Mtg. Cover		Appelez-nous	-
279	WB49X5161		Cover Back		Appelez-nous	-
280	WB2X6200		Cover, Fan		Appelez-nous	-
280	WZ04X0231		Screw, Mtg. Cover		Appelez-nous	-
281	WB24X105		Switch, Oven Light		Appelez-nous	-
281	WB2X2954		Sleeving (cut To Size)		Appelez-nous	-
282	WB2X6767		Hook		Appelez-nous	-
283	WB2X3193		Clip - Shim		Appelez-nous	-
300	WB14X36		Latch Assembly		Appelez-nous	-
301	WS01A02255		Screw Mtg. Handle   (Replaces: WB1X536)				$ 3.97
301	WB15X142		Handle		Appelez-nous	-
302	WB3X322		Knob		Appelez-nous	-
303	WG02A00753		Retaining - Knob   (Replaces: WB2X2030)				$ 4.20
304	WB2X3157		Channel - Latch		Appelez-nous	-
305	WB2X3158		Channel - Locking		Appelez-nous	-
306	WB1X458		Screw Mtg. Plate		Appelez-nous	-
306	WB2X3160		Plate - Mounting		Appelez-nous	-
307	WZ04X0362		Screw-channel To Latch		Appelez-nous	-
308	WB24X183		Switch - Latch		Appelez-nous	-
310	WB1X561		Screw Mtg. Clip		Appelez-nous	-
311	WB24X5097		Solenoid		Appelez-nous	-
312	WZ04X0374		Screw Mtg. Solenoid		Appelez-nous	-
313	WB2X6212		Pivot Stud		Appelez-nous	-
314	WB2X1800		Retaining Ring		Appelez-nous	-
315	WB2X3159		Pawl - Locking		Appelez-nous	-
316	WB9X148		Spring		Appelez-nous	-
317	WZ02X0503		Screw Mtg. Latch		Appelez-nous	-
317	WZ10X0075		Washer Mtg. Latch		Appelez-nous	-
318	WB7X552		Trim Latch		Appelez-nous	-
330	WB2X1222		Pad		Appelez-nous	-
330	WB36X5379		Black Glass Panel		Appelez-nous	-
331	WB56X5678		Panel, Door		Appelez-nous	-
331	WB2X6546		Insulation Door		Appelez-nous	-
332	WB7X5623		Trim, Door		Appelez-nous	-
333	WB2X3053		Speednut, Mtg. Trim		Appelez-nous	-
334	WB7X5630		Trim, Top		Appelez-nous	-
335	WB2X6575		Clip Mtg. Trim		Appelez-nous	-
336	WB2X6573		Pad Trim		Appelez-nous	-
337	WZ04X0231		Screw Mtg. Trim		Appelez-nous	-
337	WB7X5625		Trim, Door		Appelez-nous	-
338	WB2X6574		Clip Trim (4 Per)		Appelez-nous	-
339	WB2X3052		Cam		Appelez-nous	-
340	WB2X5217		Link Cam		Appelez-nous	-
341	WB9X5083		Cam Spring		Appelez-nous	-
342	WB7X5624		Trim Plate		Appelez-nous	-
343	WB55X5216		Liner Door		Appelez-nous	-
344	WB55X5210		Panel Inner		Appelez-nous	-
345	WB2X6547		Gasket, Door		Appelez-nous	-
345	WB1X537		Screw, Mtg. Gasket		Appelez-nous	-
346	WB7X722		Trim Crystal		Appelez-nous	-
347	WB2X6232		Gasket, Crystal		Appelez-nous	-
348	WB36X5244		Window		Appelez-nous	-
349	WB51X5218		Guard, Insulation		Appelez-nous	-
349	WZ04X0231		Screw Mtg. Guard		Appelez-nous	-
351	WB55X5217		Shield, Window		Appelez-nous	-
352	WZ05X0134		Handle, Shield Lh		Appelez-nous	-
352	WB15X143		Handle, Shield Rh		Appelez-nous	-
352	WB15X144		Handle, Shield Lh		Appelez-nous	-
353	WB2X3045		Cover Assembly		Appelez-nous	-
353	WZ04X0304		Screw Mtg. Cover		Appelez-nous	-
354	WB9X128		Spring Guard		Appelez-nous	-
355	WZ04X0231		Screw Mtg. Slide Bottom		Appelez-nous	-
355	WB2X3040		Slide, Shield		Appelez-nous	-
355	WZ05X0134		Screw Mtg. Slide Top		Appelez-nous	-
356	WB9X138		Spring Strike		Appelez-nous	-
356	WZ04X0304		Screw Mtg. Strike		Appelez-nous	-
357	WB2X6238		Bracket, Door		Appelez-nous	-
357	WZ04X0231		Screw Mtg. Bracket		Appelez-nous	-
358	WB15X145		Handle, Door		Appelez-nous	-
359	WB2X6243		Grommet, Handle		Appelez-nous	-
360	WB2X6204		Spacer		Appelez-nous	-
361	WZ04X0298		Screw Mtg. Handle		Appelez-nous	-
362	WB1X119		Washer Mtg. Handle		Appelez-nous	-
363	WB2X6270		Spacer, Panel		Appelez-nous	-
364	WB1X558		Bolt Liner Socket		Appelez-nous	-
365	WB7X5631		Cap Trim		Appelez-nous	-
366	WB3X3042		Guide & Spring Asm. - Rh		Appelez-nous	-
366	WB3X3041		Guide & Spring Asm. - Lh		Appelez-nous	-
366	WZ04X0231		Screw Mtg. Guide & Spring		Appelez-nous	-
380	WB2X6740		Bracket, Handle, Panel		Appelez-nous	-
380	WB15X5124		Handle		Appelez-nous	-
380	WZ04X0209		Screw Mtg. Handle		Appelez-nous	-
381	WS01A01150		Screw Mtg. Panel & Trim   (Replaces: WB1X5364)				$ 3.97
381	WB7X5659		Trim Panel		Appelez-nous	-
381	WB56X5799		Panel Drawer		Appelez-nous	-
382	WB58X5005		Drawer Assembly		Appelez-nous	-
383	WB2X6208		Bumper		Appelez-nous	-
384	WB2X840		Slide Top		Appelez-nous	-
385	WB2X841		Slide		Appelez-nous	-
400	WB1X422		Screw Mtg. Cover		Appelez-nous	-
400	WB2X6496		Insulation Oven Liner		Appelez-nous	-
400	WB53X5070		Oven Liner		Appelez-nous	-
400	WB2X3230		Cover		Appelez-nous	-
400	WB1X525		Washer Mtg. Cover		Appelez-nous	-
401	WB1X570		Screw, Mtg. Liner		Appelez-nous	-
402	WB1X119		Washer, Mtg. Liner		Appelez-nous	-
403	WZ04X0238		Screw Mtg. Trim		Appelez-nous	-
403	WB2X6209		Clip, Trim		Appelez-nous	-
406	WB2X3466		Guard Lamp		Appelez-nous	-
406	WZ04X0231		Screw, Mtg. Guard Lamp		Appelez-nous	-
407	WB8X5060		Oven Light Socket		Appelez-nous	-
408	WG02F04576		Glass Lamp   (Replaces: WB36X192)				$ 20.65
412	WB2X1659		Speednut		Appelez-nous	-
413	WZ04X0361		Screw, Mtg. Trim Lamp		Appelez-nous	-
414	WZ04X0291		Screw, Mtg. Trim To Plate		Appelez-nous	-
415	WB2X1847		Washer		Appelez-nous	-
416	WB2X1626		Baffle, Vent		Appelez-nous	-
416	WZ04X0291		Screw, Mtg. Baffle		Appelez-nous	-
417	WB48X5044		Oven Rack		Appelez-nous	-
418	WB48X5002		Rack, Broil Pan		Appelez-nous	-
419	WB49X88		Pan Broiler		Appelez-nous	-
420	WB44X186		Mullion Unit		Appelez-nous	-
420	WB1X500		Screw Terminal		Appelez-nous	-
420	WZ04X0231		Screw Mtg. Retainer		Appelez-nous	-
420	WB2X3253		Clip Retaining Mtg. Unit		Appelez-nous	-
423	WB24X175		Thermal Switch		Appelez-nous	-
423	WB2X6274		Sleeve		Appelez-nous	-
424	WB2X3165		Hanger		Appelez-nous	-
424	WZ04X0288		Screw Mtg. Hanger		Appelez-nous	-
425	WB2X3163		Gasket - Plate				$ 22.50
425	WB2X3164		Mounting Plate		Appelez-nous	-
425	WZ04X0291		Screw Mtg. Plate		Appelez-nous	-
450	WB1X500		Screw Terminal		Appelez-nous	-
450	UB592		Bake Unit   (Replaces: WB44X5082)			Immediately	$ 49.95
450	WZ04X0291		Screw Mtg. Bake Unit		Appelez-nous	-
451	UT316		Broil Unit   (Replaces: WB44X185)			Immediately	$ 49.95
451	WB1X500		Screw Terminal		Appelez-nous	-
451	WB4X291		Screw Mtg. Broil Unit		Appelez-nous	-
452	WB2X1810		Broil Unit Support		Appelez-nous	-
452	WZ04X0291		Screw Mtg. Support		Appelez-nous	-
452	WB2X1543		Gasket		Appelez-nous	-
460	WB1X500		Screw Terminals		Appelez-nous	-
460	WZ04X0291		Screw Mtg. Smoke Eliminator		Appelez-nous	-
460	WB29X50		Smoke Eliminator		Appelez-nous	-
461	WB2X3388		Insulator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
