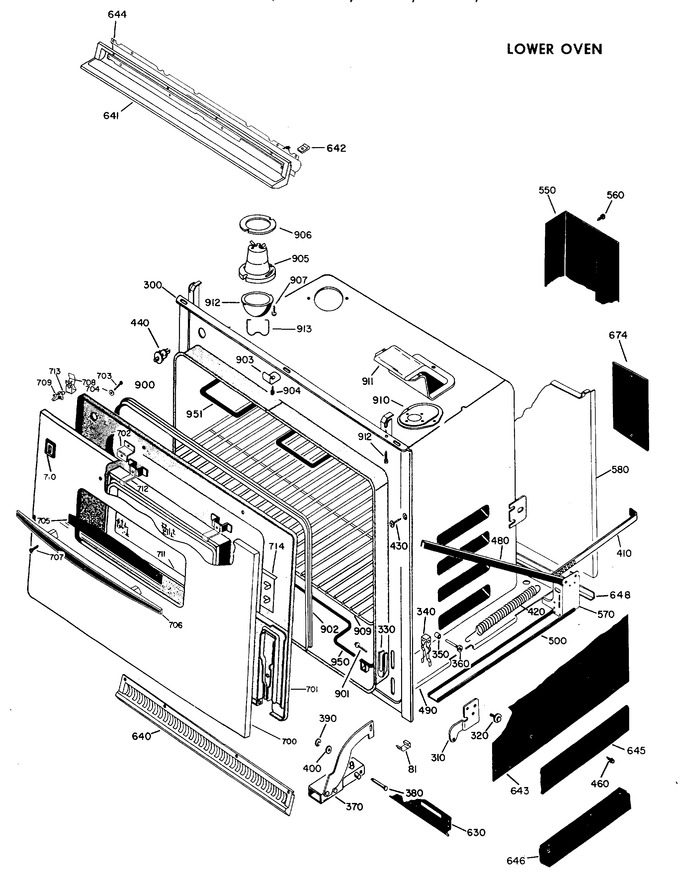

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 81 | WB2X1867 | Anti-wobble Clip |
|
- | |||||
| 300 | WB56X854 | Frame |
|
- | |||||
| 310 | WB10X120 | Hinge Support Rh |
|
- | |||||
| 310 | WB10X121 | Hinge Support Lh |
|
- | |||||
| 320 | WB1X351 | Screw Mt. Support |
|
- | |||||
| 330 | WB2X1460 | Hinge Lever Guide |
|
- | |||||
| 340 | WB2X1461 | Spring - Hinge Lever |
|
- | |||||
| 350 | WB2X1462 | Roller |
|
- | |||||
| 360 | WB1X352 | Screw Mt. Roller |
|
- | |||||
| 370 | WB10X123 | Hinge Lever Lh |
|
- | |||||
| 370 | WB10X122 | Hinge Lever Rh |
|
- | |||||
| 380 | WB2X1081 | Hinge Pin |
|
- | |||||
| 390 | WB2X1082 | Hinge Pin Retainer |
|
- | |||||
| 400 | WZ10X0017 | Washer |
|
- | |||||
| 410 | WB9X93 | Link |
|
- | |||||
| 420 | WB9X101 | Spring |
|
- | |||||
| 430 | WB1X295 | Screw 1 1/4" |
|
- | |||||
| 430 | WB1X292 | Screw 3/4" |
|
- | |||||
| 440 | WB24X105 | Oven Light Sw. |
|
- | |||||
| 460 | WB1X284 | Screw Mt. Guard Size No. |
|
- | |||||
| 480 | WB59X68 | Channel Side |
|
- | |||||
| 490 | WB59X61 | Bottom Guard |
|
- | |||||
| 500 | WB59X107 | Channel |
|
- | |||||
| 550 | WB59X64 | Terminal Guard |
|
- | |||||
| 560 | WB1X284 | Screw Mt. Guard No. 6 |
|
- | |||||
| 570 | WB59X108 | Gusset |
|
- | |||||
| 580 | WB59X136 | Back |
|
- | |||||
| 630 | WB2X2064 | Support Trim |
|
- | |||||
| 640 | WB7X673 | Trim |
|
- | |||||
| 640 | WZ04X0237 | Screw Mt. Trim |
|
- | |||||
| 641 | WB7X729 | Trim Middle |
|
- | |||||
| 642 | WB2X1119 | Clip |
|
- | |||||
| 643 | WB59X105 | Case Side Rh,lh |
|
- | |||||
| 644 | WZ05X0132 | Screw Mt. Grill |
|
- | |||||
| 644 | WB7X728 | Grill |
|
- | |||||
| 645 | WB59X106 | Cover Side |
|
- | |||||
| 646 | WB2X2063 | Spacer Btm. |
|
- | |||||
| 648 | WB59X71 | Angle |
|
- | |||||
| 700 | WB56X1093 | Door Panel Avo. (04 Up) |
|
- | |||||
| 700 | WB56X1095 | Door Panel B. Chr. (04 U |
|
- | |||||
| 700 | WB56X918 | Door Panel White (02-03) |
|
- | |||||
| 700 | WB56X919 | Door Panel Harvest (02-0 |
|
- | |||||
| 700 | WB56X920 | Door Panel Avo.(02-03) |
|
- | |||||
| 700 | WB56X921 | Door Panel D.c.(02-03) |
|
- | |||||
| 700 | WB56X922 | Door Panel B. Chr.(02-03 |
|
- | |||||
| 700 | WB56X1091 | Door Panel White (04-up) |
|
- | |||||
| 700 | WB56X1092 | Door Panel Harv. (04 Up) |
|
- | |||||
| 700 | WB56X1094 | Door Panel D. C. (04 Up) |
|
- | |||||
| 701 | WB55X323 | Door Liner (03-up) |
|
- | |||||
| 701 | WB55X212 | Door Liner (02) |
|
- | |||||
| 702 | WB2X1628 | Liner Spacer (02-03) |
|
- | |||||
| 703 | WZ04X0346 | Ser. Mt. Liner (04-up) |
|
- | |||||
| 703 | WB2X2942 | Liner Spacer (04-up) |
|
- | |||||
| 703 | WZ04X0245 | Screw Mt. Liner (02-03) |
|
- | |||||
| 704 | WB1X119 | Washer |
|
- | |||||
| 705 | WB7X519 | Shield |
|
- | |||||
| 706 | WB15X121 | Handle |
|
- | |||||
| 707 | WZ04X0245 | Screw |
|
- | |||||
| 708 | WB2X2249 | Spring (04-up) |
|
- | |||||
| 708 | WB2X2412 | Spring (02-03) |
|
- | |||||
| 709 | WB2X2248 | Toggle |
|
- | |||||
| 710 | WB7X273 | Trim |
|
- | |||||
| 711 | WB36X76 | Window (02-03) |
|
- | |||||
| 711 | WB36X413 | Window (04-up) |
|
- | |||||
| 712 | WB2X1445 | Clip Window (02-03) |
|
- | |||||
| 712 | WB2X2902 | Clip Window (04-up) |
|
- | |||||
| 712 | WZ04X0256 | Screw Mt. Clip |
|
- | |||||
| 713 | WB2X2250 | Link (04-up) |
|
- | |||||
| 713 | WB2X2411 | Link (02-03) |
|
- | |||||
| 714 | WB2X2918 | Guard (04-up) |
|
- | |||||
| 900 | WB53X196 | Oven Liner (03-up) |
|
- | |||||
| 900 | WB2X1113 | Oven Liner Insul. Pkg. |
|
- | |||||
| 900 | WB53X159 | Oven Liner (02) |
|
- | |||||
| 902 | WB2X2058 | Silicone Gasket |
|
- | |||||
| 903 | WB2X1031 | Trim Clip |
|
- | |||||
| 904 | WB1X294 | Screw |
|
- | |||||
| 905 | WB8X178 | Lamp Receptacle |
|
- | |||||
| 906 | WB2X1083 | Gasket |
|
- | |||||
| 907 | WB1X350 | Screw 40w Appl. Bulb |
|
- | |||||
| 909 | WB48X73 | Shelf |
|
- | |||||
| 910 | WZ04X0231 | Screw Ext. Liner |
|
- | |||||
| 910 | WB1X119 | Washer Padded |
|
- | |||||
| 910 | WB38X71 | Vent Extension |
|
- | |||||
| 910 | WZ04X0289 | Screw Mt. Halves |
|
- | |||||
| 911 | WB4X282 | Screw Mt. Vent |
|
- | |||||
| 911 | WB38X62 | Vent |
|
- | |||||
| 912 | WG02F04576 | Lamp Cover (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 913 | WB2X2885 | Lamp Cover Clip |
|
- | |||||
| 950 | UB732 | Bake Unit 236v (Replaces: WB44X126) |
|
Immediately | $ 49.95 | ||||
| 950 | WB2X1102 | Replacement Foot |
|
- | |||||
| 950 | WB44X125 | Bake Unit 208v |
|
- | |||||
| 950 | WZ04X0231 | Scrw. Mt. Units-bake&brl |
|
- | |||||
| 951 | UT316 | Broil Unit Dual Rated ( (Replaces: WB44X180) |
|
Immediately | $ 49.95 | ||||
| 951 | WB2X1131 | Capillary Tube Spt. |
|
- | |||||
| 951 | WB2X1542 | Broil Unit Support |
|
- | |||||
| 951 | WB2X1543 | Gasket Broil Unit |
|
- | |||||
| 951 | UT316 | Broil Unit 236v(02-3-4) (Replaces: WB44X134) |
|
Immediately | $ 49.95 | ||||
| 951 | WB44X135 | Broil Unit 208v (02-3-4) |
|
- | |||||
| 951 | WZ05X0128 | Screw Mt. Support |
|
- |
