01 - Cabinet Parts

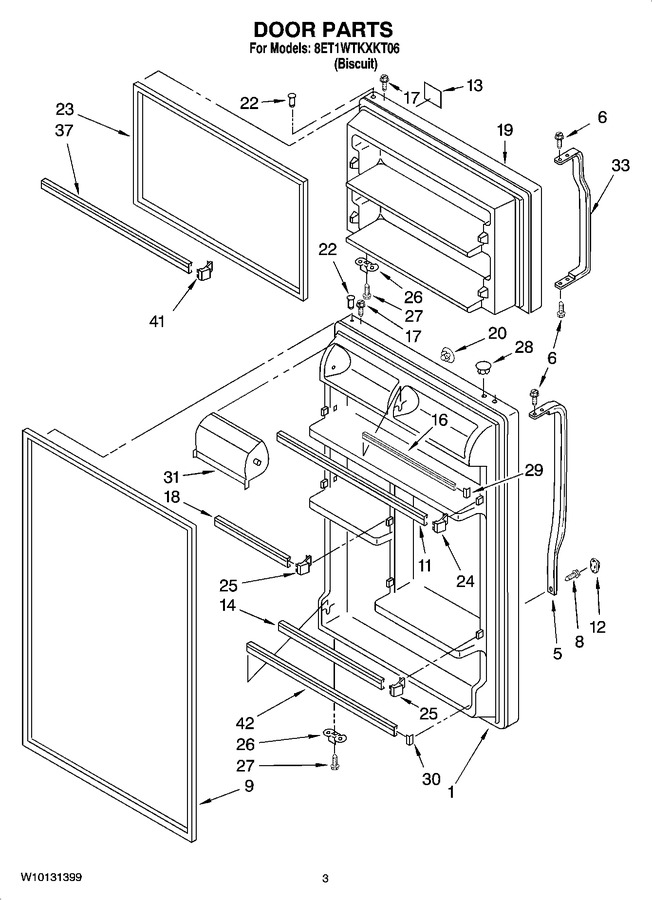

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205282 | Refrigerator Door (includes 9 & 22) (biscuit) |
|
- | |||||
| 5 | 2202807T | Handle Center (biscuit) |
|
$ 64.39 | |||||
| 6 | 8534058 | Screw |
|
$ 8.87 | |||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 8.18 | |||||
| 9 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 11 | WP2201061 | Trim, Door Shelf (Replaces: 2201061) |
|
$ 124.32 | |||||
| 12 | 2202819T | Cover, Screw (biscuit) |
|
$ 8.02 | |||||
| 13 | 2212596 | Nameplate (biscuit) |
|
- | |||||
| 14 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 91.78 | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2195378) |
|
$ 124.32 | |||||
| 17 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 18 | WP2201062 | Trim, Door Shelf (Replaces: 2201062) |
|
$ 8.42 | |||||
| 19 | W11023688 | Freezer Door (includes 22 & 23) (biscuit) (Replaces: 2204686) |
|
- | |||||
| 20 | WP2200936 | Hole Plug (biscuit) (Replaces: 2200936) |
|
$ 7.97 | |||||
| 22 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 23 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 336.01 | |||||
| 24 | WP2195915 | Endcap-trim (2) (Replaces: 2195915) |
|
$ 13.72 | |||||
| 25 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 28 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 31 | WP2218118 | Compartment Door (Replaces: 2218118) |
|
$ 81.92 | |||||
| 33 | 2202806T | Handle, F.c. (biscuit) |
|
$ 63.61 | |||||
| 37 | WP2201060 | Trim-door (2) (Replaces: 2201060) |
|
$ 120.21 | |||||
| 41 | WP2156003 | Endcap (4) (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 42 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 114.74 |
