SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts

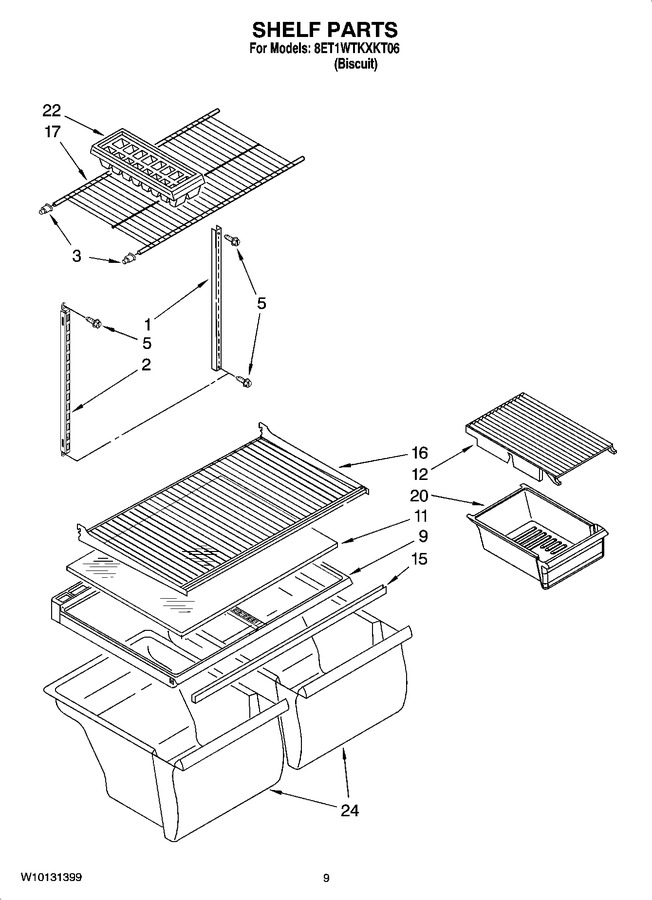

05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2300520		Shelf, Ladder Center				$ 75.36
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
9	WP2314549		Crisper Cover   (Replaces: 2314500)				$ 265.81
11	WP2176225		Insert, Crisper Cover   (Replaces: 2210573)				$ 251.82
12	2163848		Cover, Meat Pan				$ 71.41
15	WP2172748		Crisper Support   (Replaces: 2314478)				$ 97.22
16	2195398		Shelf, Full Cantilever		Appelez-nous	-
17	2189454		Shelf, Freezer		Appelez-nous	-
20	WP2218127K		Pan, Meat   (Replaces: 2218127K)				$ 139.81
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
24	W10854037		Crisper Pan   (Replaces: 2218124)			Immediately	$ 170.66
	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Insulation (14 Pcs. 3`` X 24`` X 48``))   (Replaces: 876305)				$ 231.56
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	1117510		Torx Key				$ 5.84
	799833		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Evaporator Repair (aluminum Epoxy))		Appelez-nous	-
	799832		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Porcelain Repair (white))		Appelez-nous	-
	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 26.45
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.07
	W11729596		Field Installable Ice Maker (eckmf94)   (Replaces: 2155469)			Immediately	$ 150.98
	212643		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (sealer, Gum (4 Feet))			Immediately	$ 82.13
	479502		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (tape, Vinyl (3/4`` X 108``))				$ 66.77
	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Insulation (2 Pcs. 3`` X 24 `` X 48``))				$ 231.56
	876029		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``))		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	350956		Enamel, Almond (12 Oz. Spray Can)				$ 51.44
	WP503695		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (cork Sealer (1/4 Pound))   (Replaces: 503695)				$ 117.94
	542639		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (cement, Alumilastic (1-1/4 Oz.))		Appelez-nous	-
	WP542638		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (grease, Silicone (1/2 Oz.))   (Replaces: 542638)			Immediately	$ 12.18
	WP505587		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (sealer, Mastic (1 Qt.))   (Replaces: 505587)			Immediately	$ 173.95

    View Diagram in Separate Window       Print Part List
