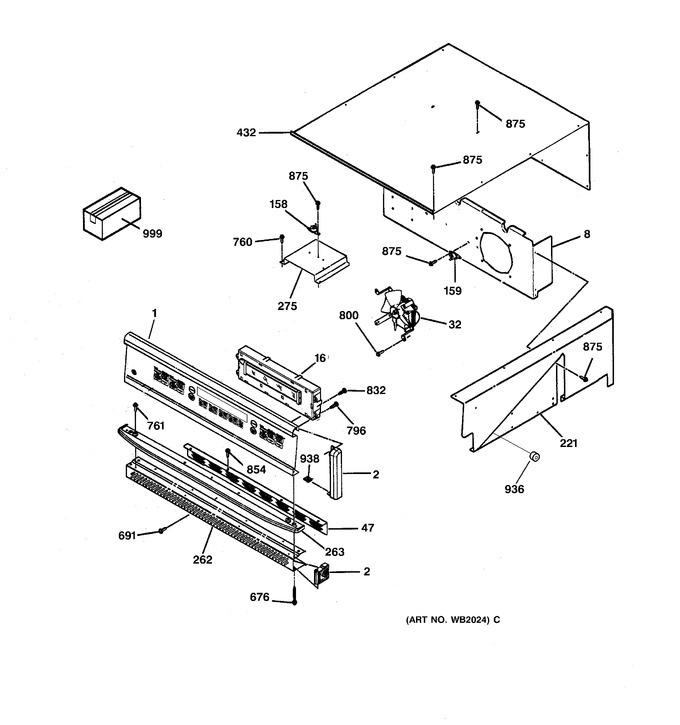

1 - Control Panel
2 - Body Parts
3 - Oven Door
4 - Door Lock
5 - Convection Fan
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5719 | Panel Cntl Asm W/oly |
|
- | |||||
| 2 | WB7K5460 | Cap End (rt-ad) |
|
- | |||||
| 2 | WB7K5461 | Cap End (lt-ad) |
|
- | |||||
| 2 | WB7K5442 | Cap Vent Trim |
|
- | |||||
| 8 | WB2K5257 | Support Fan (upper) |
|
- | |||||
| 8 | WB2K5137 | Support Fan |
|
- | |||||
| 16 | WB27K5319 | Control Ovn (erciii-dd) |
|
- | |||||
| 32 | WB26K5072 | Fan Assembly |
|
- | |||||
| 32 | WB26K5071 | Fan Assembly |
|
- | |||||
| 47 | WB38K5058 | Barrier Vent |
|
- | |||||
| 47 | NCN | Barrier Vent |
|
- | |||||
| 158 | WB24K5033 | Switch Limit |
|
- | |||||
| 159 | WG02F04523 | Switch Limit (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 210 | WB7K5463 | Btm Trim End Cap-lt-ad |
|
- | |||||
| 221 | WB63K5210 | Extension Side Rt |
|
- | |||||
| 221 | WB63K5174 | Extension Cab Sde Lwr |
|
- | |||||
| 221 | WB63K5209 | Extension Side Lt |
|
- | |||||
| 253 | WB21X5347 | Sensor Asm |
|
- | |||||
| 262 | WB7K5507 | Trim Vert Side Lt (ad) |
|
- | |||||
| 262 | WB7K5480 | Trim Vent (ad) |
|
- | |||||
| 262 | WB7K5506 | Trim Vert Side Rt (ad) |
|
- | |||||
| 263 | WB7K5508 | Trim I-brow Lwr (ad) |
|
- | |||||
| 263 | WB7K5458 | Trim I-brow Upr (ad) |
|
- | |||||
| 275 | WB34K5078 | Cover Vent Box |
|
- | |||||
| 432 | WB63K5094 | Cover Top |
|
- | |||||
| 530 | WB48X5107 | Grid Bro Pan |
|
- | |||||
| 676 | WB1K5208 | Scr 8-18 X 2.500 (ad) |
|
- | |||||
| 691 | WB1K5176 | Trim Screw-almond |
|
- | |||||
| 760 | WB1K5028 | Screw St8-18x.437hexni |
|
- | |||||
| 761 | WB1K5211 | Scr 8-18 St Trp.500 S |
|
- | |||||
| 761 | WB1K5029 | Screw St8-18x.500trp/o |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 761 | WB1K5168 | Screw St 8-18x.625 Tr Ad |
|
- | |||||
| 763 | WB1K15 | Scr 8-22 Bthw 9/16 S Hlt |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 800 | WB1K5138 | Screw St10-16x.437hxnib |
|
- | |||||
| 821 | WB1M5 | Sc Tf 6-32 X .187 Tr Ni |
|
- | |||||
| 832 | WB1X1158 | Screw-nickel |
|
- | |||||
| 854 | WB1X1164 | Screw Tc 10-32x.500 Sp |
|
- | |||||
| 854 | WB1X1328 | Screw-black |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 890 | WB1M27 | Screw St 6-20x.437 Tr |
|
- | |||||
| 911 | WB1K5124 | Rivet |
|
- | |||||
| 936 | WB1K5065 | Bushing Snap |
|
- | |||||
| 938 | WB1K5209 | Clip C Type |
|
- | |||||
| 999 | WB18K5617 | Harness Wire Lock Mtr |
|
- | |||||
| 999 | 49-8709 | Pm Manual Use & Care |
|
- | |||||
| 999 | WB18K5650 | Harness Wire Lock Mtr |
|
- | |||||
| 999 | 31-10200 | Installation Instruction |
|
- | |||||
| 999 | 31-13342 | Mini Manual W/wire Diag. |
|
- | |||||
| 999 | WB18K5647 | Harness Wire Main |
|
- |
