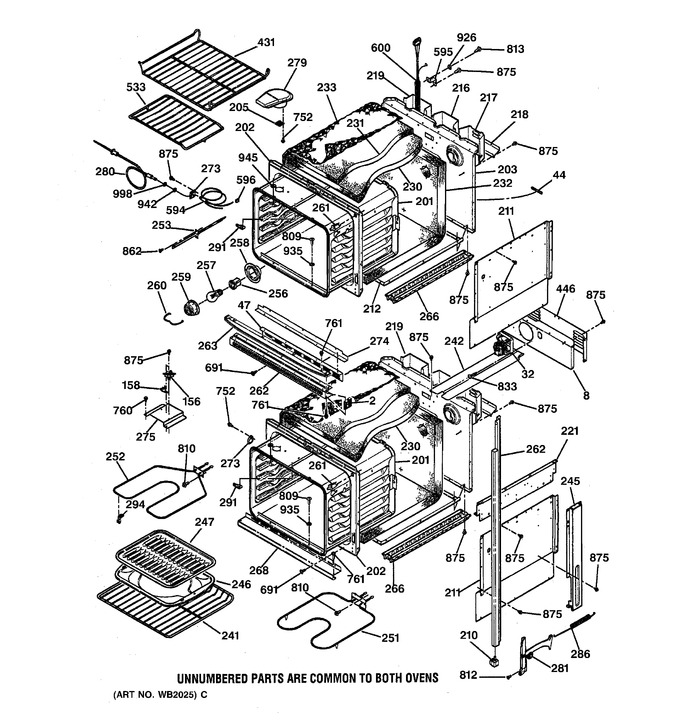

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Body Parts
3 - Oven Door
4 - Door Lock
5 - Convection Fan
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WB7K5442 | Cap Vent Trim |
|
- | |||||
| 2 | WB7K5461 | Cap End (lt-ad) |
|
- | |||||
| 2 | WB7K5460 | Cap End (rt-ad) |
|
- | |||||
| 8 | WB2K5257 | Support Fan (upper) |
|
- | |||||
| 8 | WB2K5137 | Support Fan |
|
- | |||||
| 32 | WB26K5072 | Fan Assembly |
|
- | |||||
| 32 | WB26K5071 | Fan Assembly |
|
- | |||||
| 44 | WB2K5225 | Grommet Strip (.020) |
|
- | |||||
| 47 | WB38K5058 | Barrier Vent |
|
- | |||||
| 156 | WB24K5049 | Switch Limit |
|
- | |||||
| 158 | WB24K5033 | Switch Limit |
|
- | |||||
| 201 | WB63K5166 | Wrapper Ov Cav Asm |
|
- | |||||
| 201 | WB63K5086 | Oven Body |
|
- | |||||
| 202 | WB63K5084 | Frame Frt Asm |
|
- | |||||
| 203 | WB63K5168 | Back Main Asm |
|
- | |||||
| 203 | WB63K5167 | Back Main |
|
- | |||||
| 205 | WB6K5026 | Screen Smoke Eliminator |
|
- | |||||
| 210 | WB7K5462 | Cap Btm Trim (rt-ad) |
|
- | |||||
| 211 | WB63K5173 | Side Cabinet |
|
- | |||||
| 212 | WB63K5080 | Bottom Cab |
|
- | |||||
| 216 | WB34K5069 | Wire Cover-element |
|
- | |||||
| 217 | WB34K5070 | Cover Wire Light |
|
- | |||||
| 218 | WB34K5067 | Bottom Wire Cover |
|
- | |||||
| 219 | WB34K5082 | Cover Wire Conduit |
|
- | |||||
| 221 | WB63K5174 | Extension Cab Sde Lwr |
|
- | |||||
| 221 | WB63K5209 | Extension Side Lt |
|
- | |||||
| 221 | WB63K5210 | Extension Side Rt |
|
- | |||||
| 230 | WB35K5048 | Insulation Top&sds Inner |
|
- | |||||
| 231 | WB35K5068 | Insulation Wrapper Outer |
|
- | |||||
| 232 | WB35K5089 | Insulation Back & Btm |
|
- | |||||
| 233 | WB34K5080 | Heat Reflector |
|
- | |||||
| 241 | WB48K5009 | Rack Ovn (convx Flat) |
|
- | |||||
| 241 | WG02L02645 | Rack Ovn (Replaces: WB48K5006) |
|
$ 80.53 | |||||
| 242 | WB38K5041 | Channel Air |
|
- | |||||
| 245 | WB2K5139 | Support Vertical Side |
|
- | |||||
| 246 | WB48M3 | Pan Broil (261d656p010) |
|
- | |||||
| 247 | WB48K5018 | Grid Bro Pan |
|
- | |||||
| 251 | WB44K5013 | Element Bake |
|
$ 113.30 | |||||
| 252 | WG02F05475 | Element Broil (Replaces: WB44K5009) |
|
$ 115.36 | |||||
| 253 | WB21X5318 | Sensor |
|
- | |||||
| 256 | WB8K5029 | Holder Ov Lamp |
|
- | |||||
| 257 | BUY LOCAL | Lamp Oven |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 260 | WB2X7694 | Bail |
|
- | |||||
| 261 | 318394803 | Switch Oven Light (jam) (Replaces: WB24K5061) |
|
Immediately | $ 49.14 | ||||
| 262 | WB7K5480 | Trim Vent (ad) |
|
- | |||||
| 262 | WB7K5506 | Trim Vert Side Rt (ad) |
|
- | |||||
| 262 | WB7K5507 | Trim Vert Side Lt (ad) |
|
- | |||||
| 263 | WB7K5508 | Trim I-brow Lwr (ad) |
|
- | |||||
| 263 | WB7K5458 | Trim I-brow Upr (ad) |
|
- | |||||
| 266 | WB63K5079 | Base Rail |
|
- | |||||
| 268 | WB7K5459 | Trim Frt Frm Lwr (ad) |
|
- | |||||
| 273 | WB34K5140 | Probe Cover |
|
- | |||||
| 273 | WB2K5365 | Cover Hole |
|
- | |||||
| 274 | WB7K5509 | Extension Vnt Trm Lwr(a) |
|
- | |||||
| 275 | WB34K5078 | Cover Vent Box |
|
- | |||||
| 279 | WB38K5028 | Box Vent Asm |
|
- | |||||
| 280 | WB20X5050 | Probe Thermistor |
|
- | |||||
| 281 | WB14K5006 | Hinge Ov Dr Rt |
|
- | |||||
| 281 | WB14K5007 | Hinge Ov Dr Lt |
|
- | |||||
| 286 | WB9K5022 | Spring Ovn Dr |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Support Bro Elem (Replaces: WB2X9719) |
|
$ 11.71 | |||||
| 431 | WB48K5010 | Rack Ov (convx Offset) |
|
- | |||||
| 446 | WB34K5089 | Cover Wire Center |
|
- | |||||
| 533 | WB48X5108 | Rack Roast |
|
- | |||||
| 594 | WB8K5054 | Jack Receptacle |
|
- | |||||
| 595 | WB2K5126 | Clamp Conduit (.500) |
|
- | |||||
| 596 | WB8K5013 | Receptacle Hsg Asm |
|
- | |||||
| 600 | WB18K5215 | Wire Conduit Asm-double |
|
- | |||||
| 691 | WB1K5176 | Trim Screw-almond |
|
- | |||||
| 752 | WG02A00488 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 760 | WB1K5028 | Screw St8-18x.437hexni |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 761 | WB1K5168 | Screw St 8-18x.625 Tr Ad |
|
- | |||||
| 761 | WB1K5211 | Scr 8-18 St Trp.500 S |
|
- | |||||
| 761 | WB1K5029 | Screw St8-18x.500trp/o |
|
- | |||||
| 809 | WG02A00781 | Screw St 10abx.500 Tr Ni (Replaces: WB1X1137) |
|
$ 15.88 | |||||
| 810 | WB1X1253 | Screw 10-32 X 17/32 |
|
- | |||||
| 812 | WB1K5191 | Screw Tc 10-32x.625(zn) |
|
- | |||||
| 813 | WS01A00445 | Sc Tf 10-32x.437 Hex Gr (Replaces: WB1X1261) |
|
$ 13.90 | |||||
| 833 | WB1X1131 | Sc Tc 6-32x.875 Pan Zn |
|
- | |||||
| 862 | WB1X1178 | Screw Tc6-32x.250hexni |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 926 | WB1X1260 | Washer Ground |
|
- | |||||
| 935 | WB1K5174 | Washer Alum Shaped |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 945 | WB1K5046 | Lock Washer |
|
- | |||||
| 998 | WG02A00927 | Nut (Replaces: WB1X5572) |
|
$ 67.26 |
