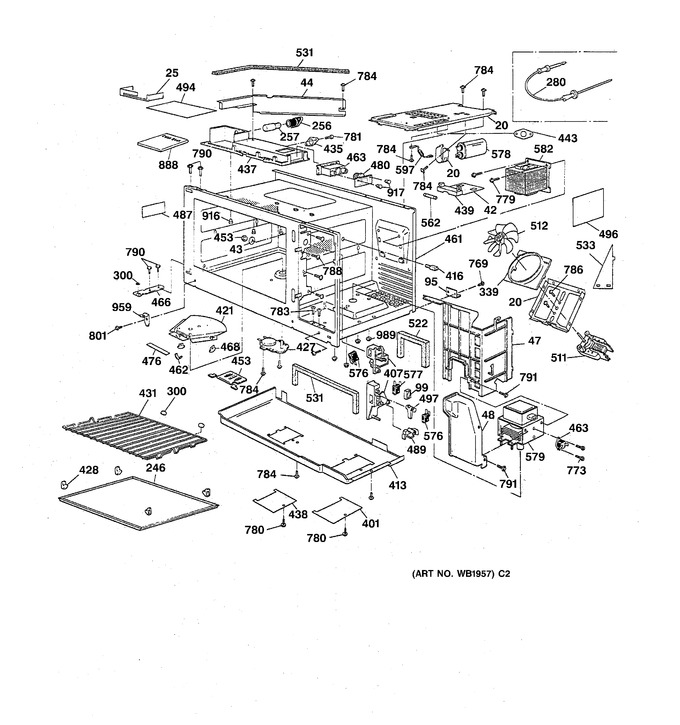

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Microwave Control Panel
2 - Microwave Door
3 - Microwave Body
4 - Oven Body
5 - Oven Door
6 - Door Lock
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 20 | WB2X7733 | Fan Motor Bracket |
|
- | |||||
| 20 | WB2X7731 | Hv Capacitor Bracket |
|
- | |||||
| 20 | WB2K5382 | Bracket-transformer |
|
- | |||||
| 20 | WB2K5383 | Bracket-instrument |
|
- | |||||
| 20 | WB2K5295 | Upper Panel Bracket |
|
- | |||||
| 25 | WB34K5110 | Lamp Cover |
|
- | |||||
| 42 | WB35K5070 | Fuse Insulator |
|
- | |||||
| 43 | WB2X7552 | Spacer |
|
- | |||||
| 44 | WB2K5296 | Air Guide E |
|
- | |||||
| 47 | WB2X7724 | Air Guide |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 48 | WB2X7635 | Air Guide |
|
- | |||||
| 95 | WB2K5194 | Rear Stop Bracket |
|
- | |||||
| 99 | WB2K5188 | Spacer |
|
- | |||||
| 246 | WB48X5084 | Ceramic Tray |
|
- | |||||
| 246 | WB48M3 | Broiler Pan |
|
- | |||||
| 256 | WB8K5096 | Oven Lamp Socket-m/w |
|
- | |||||
| 256 | WB8K5029 | Receptacle |
|
- | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 257 | WB8K5032 | Oven Lamp-m/w |
|
- | |||||
| 280 | WB20X5050 | Thermistor Probe |
|
- | |||||
| 300 | WB2X7103 | Spacer-hinge |
|
- | |||||
| 300 | WB2K5190 | Rack Spacer |
|
- | |||||
| 339 | WB2X7728 | Orifice |
|
- | |||||
| 401 | WB49X5387 | Bottom Window |
|
- | |||||
| 407 | WB10X5174 | Door Hook Lower |
|
- | |||||
| 407 | WB10X5165 | Door Hook Upper |
|
- | |||||
| 413 | WB63K5124 | Bottom Plate |
|
- | |||||
| 413 | WB36K5118 | Center End Cap-lt-wht |
|
- | |||||
| 413 | WB36K5119 | Center End Cap-rt-wht |
|
- | |||||
| 416 | WB8K5043 | Sensor Jack |
|
- | |||||
| 421 | WB2X7626 | Antenna Ass Y |
|
- | |||||
| 421 | WB7K5090 | Vent Trim-upper-wht |
|
- | |||||
| 427 | WB26X5080 | Motor, Stirrer |
|
- | |||||
| 428 | WB2X7640 | Support Rack |
|
- | |||||
| 431 | WB48K5008 | Wire Rack |
|
- | |||||
| 435 | WB27K5132 | Thermal Cut Out |
|
- | |||||
| 437 | WB38K5038 | Exhaust Guide |
|
- | |||||
| 438 | WB1K5063 | Lo Trim Spring Clip |
|
- | |||||
| 438 | WB2X7723 | Bottom Window |
|
- | |||||
| 439 | WB2X7787 | Fuse Holder |
|
- | |||||
| 443 | WB24K5099 | Thermal Switch |
|
- | |||||
| 453 | WB2X7729 | Escut Slide Ass Y |
|
- | |||||
| 453 | WB1K5154 | Jack Nut |
|
- | |||||
| 461 | WB63K5125 | Cavity |
|
- | |||||
| 462 | WB2K5298 | Antenna Stopper |
|
- | |||||
| 463 | WB27X5371 | Thermostat |
|
- | |||||
| 463 | WB2X7649 | Bracket Sensor |
|
- | |||||
| 466 | WB10K5014 | Hinge Lower |
|
- | |||||
| 466 | WB10K5013 | Upper Hinge |
|
- | |||||
| 468 | WB2K5297 | Antenna Support |
|
- | |||||
| 476 | WB7K5139 | Service Caution Label |
|
- | |||||
| 480 | WB27X5406 | Sensor Asm |
|
- | |||||
| 487 | WB7K5138 | Name Plate |
|
- | |||||
| 489 | WB15K5039 | Door Key Lever |
|
- | |||||
| 489 | WB10X5186 | Key Spacer Package |
|
- | |||||
| 494 | WB6K5021 | Oven Lamp Sheet |
|
- | |||||
| 496 | WB9K5015 | Door Key Spring |
|
- | |||||
| 496 | WB6K5039 | Fuse Label |
|
- | |||||
| 497 | WB38K5047 | Vent Trim Barrier |
|
- | |||||
| 497 | WB2X7628 | Hook Spacer |
|
- | |||||
| 511 | WB26K5035 | Fan Motor |
|
- | |||||
| 512 | WB2X4114 | Fan Blade |
|
- | |||||
| 522 | WB35K5069 | Cushion 15t 10w 450l |
|
- | |||||
| 531 | WB35K5072 | Cushion 5t 10w 550l |
|
- | |||||
| 531 | WB35K5071 | Cushion 5t 10w 450l |
|
- | |||||
| 533 | WB38K5039 | Air Separation |
|
- | |||||
| 562 | WB8K5033 | Fuse #ss6-15a |
|
- | |||||
| 576 | WG02F01561 | Switch (Replaces: WB24X352) |
|
Immediately | $ 25.41 | ||||
| 577 | WB24X353 | Switch |
|
- | |||||
| 578 | WB27K5130 | Hi Volt Capacitor |
|
- | |||||
| 579 | WB27K5129 | Magnetron |
|
- | |||||
| 582 | WB27X5447 | Transformer, Hi-voltage |
|
- | |||||
| 597 | WB8K5044 | Diode |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 773 | WB1K5088 | Screw |
|
- | |||||
| 779 | WB1K5093 | Screw |
|
- | |||||
| 780 | WB1K5094 | Screw |
|
- | |||||
| 781 | WB1K5095 | Screw |
|
- | |||||
| 783 | WB1K5097 | Screw |
|
- | |||||
| 784 | WB1K5098 | Screw |
|
- | |||||
| 786 | WB1K5100 | Screw |
|
- | |||||
| 788 | WB1K5101 | Screw |
|
- | |||||
| 790 | WB1X5742 | Screw |
|
- | |||||
| 791 | WB1K5103 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 888 | WB6K5022 | Cook Book |
|
- | |||||
| 916 | WB1K5153 | Plastic Rivet |
|
- | |||||
| 917 | WB2X7650 | Clip Mtg Sensor |
|
- | |||||
| 959 | WB1K5085 | Lower Trim Clip |
|
- | |||||
| 989 | WB1K5087 | Nut |
|
- |
