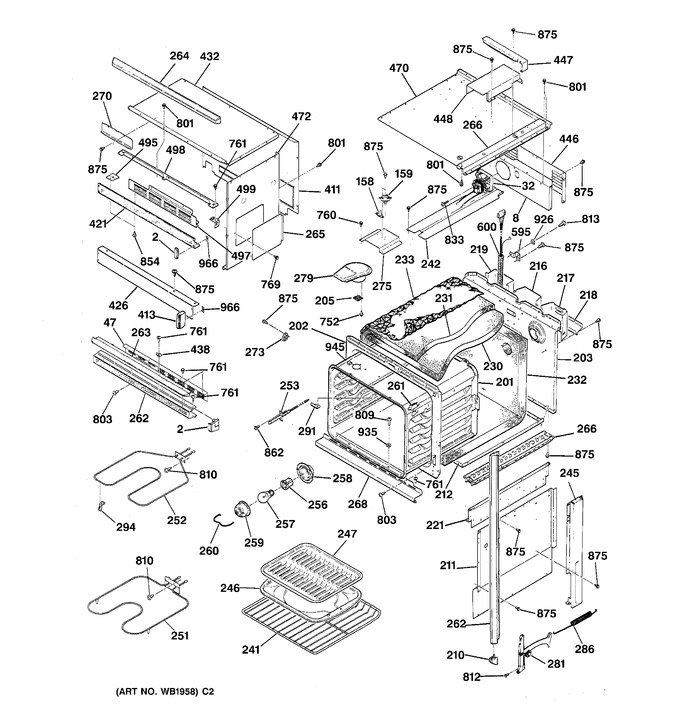

4 - Oven Body


5 - Oven Door


6 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WB36K5277		End Cap-lt		Appelez-nous	-
2	WB36K5107		Vent Trim End Cap-lt-wht		Appelez-nous	-
2	WB36K5108		Vent Trim End Cap-rt-wht		Appelez-nous	-
2	WB36K5117		End Cap-rt		Appelez-nous	-
8	WB2K5137		Fan Support-lower		Appelez-nous	-
32	WB26K5072		Fan Assembly		Appelez-nous	-
47	WB2X7724		Air Guide		Appelez-nous	-
47	WB38K5029		Vent Barrier		Appelez-nous	-
158	WB24K5033		Limit Switch		Appelez-nous	-
159	WB24K5049		Limit Switch		Appelez-nous	-
201	WB63K5086		Oven Body		Appelez-nous	-
202	WB63K5084		Front Frame Asm		Appelez-nous	-
203	WB63K5167		Main Back		Appelez-nous	-
205	WB6K5026		Smoke Elim Screen		Appelez-nous	-
210	WB7K5161		Trim End Cap-btm Lt-wht		Appelez-nous	-
210	WB7K5160		Trim End Cap-btm Rt-wht		Appelez-nous	-
211	WB63K5173		Body Side		Appelez-nous	-
212	WB63K5080		Cabinet Bottom		Appelez-nous	-
216	WB34K5069		Wire Cover-element		Appelez-nous	-
217	WB34K5070		Wire Cover-light		Appelez-nous	-
218	WB34K5067		Wire Cover Bottom		Appelez-nous	-
219	WB34K5082		Wire Cover-conduit		Appelez-nous	-
221	WB63K5174		Body Side Extension-lowr		Appelez-nous	-
230	WB35K5048		Insulation-top Sides-in		Appelez-nous	-
231	WB35K5068		Insulation Wrapper-outer		Appelez-nous	-
232	WB35K5089		Insulation Back Bttm		Appelez-nous	-
233	WB34K5080		Heat Reflector		Appelez-nous	-
241	WG02L02645		Oven Rack   (Replaces: WB48K5006)				$ 80.53
242	WB38K5041		Air Channel		Appelez-nous	-
245	WB2K5139		Vertical Side Supt		Appelez-nous	-
246	WB48X5084		Ceramic Tray		Appelez-nous	-
246	WB48M3		Broiler Pan		Appelez-nous	-
247	WB48K5018		Broiler Pan Grid		Appelez-nous	-
251	WB44K5013		Bake Element				$ 113.30
252	WG02F05475		Broil Element   (Replaces: WB44K5009)				$ 115.36
253	WB21X5310		Sensor Asm Oven		Appelez-nous	-
256	WB8K5029		Receptacle		Appelez-nous	-
256	WB8K5096		Oven Lamp Socket-m/w		Appelez-nous	-
257	WB8K5032		Oven Lamp-m/w		Appelez-nous	-
257	BUY LOCAL		Oven Lamp		Appelez-nous	-
258	WB2X7693		Oven Light Cup		Appelez-nous	-
259	WG02F04576		Ov Lamp Lens   (Replaces: WB36X389)				$ 20.65
260	WB2X7694		Light Lens Bail		Appelez-nous	-
261	318394803		Jamb Switch   (Replaces: WB24K5061)			Immediately	$ 49.14
262	WB7K5236		Vent Trim-gray		Appelez-nous	-
262	WB7K5224		Vert Side Trim-lt-wht		Appelez-nous	-
262	WB7K5223		Vert Side Trim-rt-wht		Appelez-nous	-
263	WB7K5379		I-brow Trim-wht		Appelez-nous	-
264	WB7K5199		Cont Pnl Top Trm-wht		Appelez-nous	-
265	WB2X7255		Access Cover		Appelez-nous	-
266	WB63K5079		Rail Base		Appelez-nous	-
266	WB63K5088		Base Rail Microwave		Appelez-nous	-
268	WB7K5183		Lower Frt Frame Trim		Appelez-nous	-
270	WB34K5085		Light Cover		Appelez-nous	-
273	WB2K5365		Cover		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
279	WB38K5028		Vent Box Asm-black		Appelez-nous	-
281	WB14K5007		Ov Dr Hinge-lt		Appelez-nous	-
281	WB14K5006		Ov Dr Hinge-rt		Appelez-nous	-
286	WB9K5022		Oven Door Spring		Appelez-nous	-
291	WB2X9152		Cover		Appelez-nous	-
294	WS01A01413		Broil Element Support   (Replaces: WB2X9719)				$ 11.71
411	WB63K5087		Cabinet Back		Appelez-nous	-
413	WB36K5118		Center End Cap-lt-wht		Appelez-nous	-
413	WB63K5124		Bottom Plate		Appelez-nous	-
413	WB36K5119		Center End Cap-rt-wht		Appelez-nous	-
421	WB7K5090		Vent Trim-upper-wht		Appelez-nous	-
421	WB2X7626		Antenna Ass Y		Appelez-nous	-
426	WB7K5089		Lower Trim-m/w-white		Appelez-nous	-
432	WB63K5092		Cabinet Top		Appelez-nous	-
438	WB1K5063		Lo Trim Spring Clip		Appelez-nous	-
438	WB2X7723		Bottom Window		Appelez-nous	-
446	WB34K5089		Wire Cover-center		Appelez-nous	-
447	WB34K5086		Wire Cover-micro Side		Appelez-nous	-
448	WB34K5185		Wire Cover		Appelez-nous	-
470	WB55K5022		Compartment Bottom		Appelez-nous	-
472	WB63K5091		Cabinet Side-lt		Appelez-nous	-
472	WB63K5090		Cabinet Side-rt		Appelez-nous	-
495	WB2K5204		Vent Trim Bracket		Appelez-nous	-
497	WB2X7628		Hook Spacer		Appelez-nous	-
497	WB38K5047		Vent Trim Barrier		Appelez-nous	-
498	WB2K5136		Cabinet Brace		Appelez-nous	-
499	WB2K5205		Cabinet Brace Bracket		Appelez-nous	-
595	WB2K5126		Conduit Clamp		Appelez-nous	-
600	WB18K5215		Wire Conduit Asm-double		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5185		Screw-white		Appelez-nous	-
761	WB1K5134		Screw-gray		Appelez-nous	-
769	WB1X500		Screw		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
803	WB1K5163		Screw-wht		Appelez-nous	-
803	WB1X1149		Screw-bright Nickel		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 15.88
810	WB1X1253		Screw		Appelez-nous	-
812	WB1K5191		Screw Flat Zinc		Appelez-nous	-
813	WS01A00445		Screw   (Replaces: WB1X1261)				$ 13.90
833	WB1X1131		Screw		Appelez-nous	-
854	WB1X1164		Screw-brt. Ni.		Appelez-nous	-
862	WB1X1178		Screw		Appelez-nous	-
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
926	WB1X1260		Ground Washer		Appelez-nous	-
935	WB1K5174		Washer		Appelez-nous	-
945	WB1K5046		Lock Washer		Appelez-nous	-
966	WB1K5189		Nut		Appelez-nous	-
