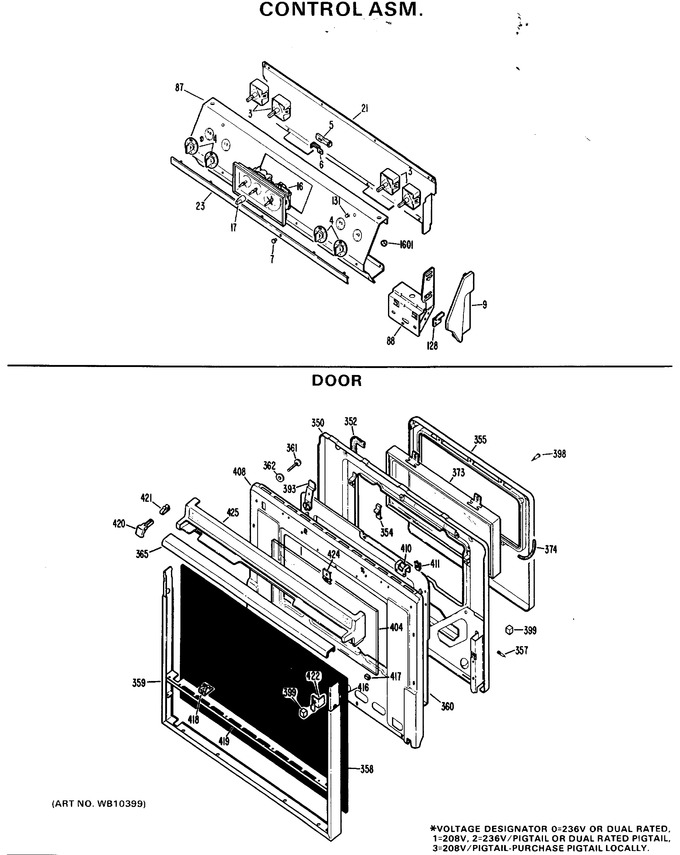

1 - Control Asm
2 - Cooktop & Case Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5677 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 6 | WB2X1185 | Clip Mtg Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB7X1130 | End Cap Rh |
|
- | |||||
| 9 | WB7X1131 | End Cap Lh |
|
- | |||||
| 11 | WB2X3434 | Barrier Switch Oven |
|
- | |||||
| 11 | WB22X5108 | Switch, Oven |
|
- | |||||
| 12 | WB3X284 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X5545 | Bracket Thermostat |
|
- | |||||
| 16 | WB19X147 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB2X3232 | Pad Crystal |
|
- | |||||
| 21 | WB59X171 | Cover Back |
|
- | |||||
| 23 | WB7X1138 | Trim Signature |
|
- | |||||
| 87 | WB61X6036 | Control Panel Ha |
|
- | |||||
| 87 | WB61X6035 | Control Panel Wh |
|
- | |||||
| 87 | WB61X6037 | Control Panel Ad |
|
- | |||||
| 88 | WB2X3327 | Post Lh |
|
- | |||||
| 88 | WB2X3326 | Post Rh |
|
- | |||||
| 128 | WB7X626 | Trim |
|
- | |||||
| 131 | WB2X1563 | Plug Button |
|
- | |||||
| 265 | WB2X3303 | Guide Hinge Lever |
|
- | |||||
| 267 | WB9X156 | Spring Door |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 350 | WB55X5298 | Door Liner |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 355 | WB55X5299 | Panel Inner |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X557 | Glass Black |
|
- | |||||
| 359 | WB7X1150 | Trim Frame-lower Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 365 | WB15X154 | Grip Asm Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 393 | WB9X153 | Spring Toggle |
|
- | |||||
| 397 | WB1X5754 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 404 | WB36X540 | Crystal Window |
|
- | |||||
| 408 | WB2X7208 | Reflector Panel |
|
- | |||||
| 408 | WB55X419 | Panel Middle Door |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 416 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 416 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 419 | WB2X3336 | Brace Bottom |
|
- | |||||
| 420 | WB2X3337 | Plunger Door Light |
|
- | |||||
| 421 | WB9X157 | Spring Plunger |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X1151 | Trim Top Door |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1201 | WB1X575 | Screw Mtg Case Top |
|
- | |||||
| 1601 | WB1X5371 | Speednut Mtg Trim |
|
- | |||||
| 2016 | WB2X3289 | Link Door Spring |
|
- | |||||
| 2017 | WB2X2861 | Gusset |
|
- | |||||
| 2022 | WB59X163 | Channel Bottom |
|
- | |||||
| 2067 | WB1X524 | Screw |
|
- | |||||
| 2094 | WB1X420 | Speednut |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 B Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WB2X3152 | Pad |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | 49-4717 | Manual Users |
|
- | |||||
| 32767 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 32767 | WB62X5312 | Cooktop Ds |
|
- | |||||
| 32767 | WB38X65 | Body Vent Asm Weld |
|
- | |||||
| 32767 | WB62X5313 | Cooktop Sl |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WZ10X0016 | Washer |
|
- | |||||
| 32767 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 32767 | 31-0431 | Install Instructions |
|
- | |||||
| 32767 | WB7X1139 | Deflector |
|
- | |||||
| 32767 | WB2X3191 | Gasket |
|
- | |||||
| 32767 | WB9X88 | Lockwasher |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 32767 | WB1X549 | Scr 10-12 A Ihw 3/8 S |
|
- | |||||
| 32767 | WZ04X0394 | Screw |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WB2X2116 | Insulation |
|
- | |||||
| 32767 | WZ07X0035 | Nut Hex |
|
- | |||||
| 32767 | 31-0351 | Pm Manual Mini |
|
- | |||||
| 32767 | WB2X2115 | Insulation |
|
- | |||||
| 32767 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- |
