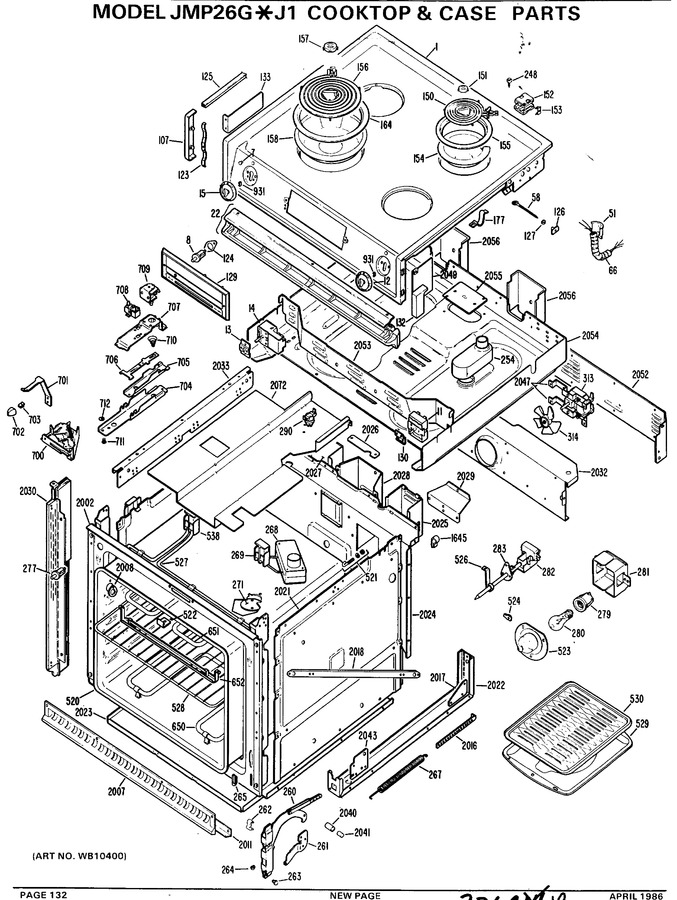

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Asm
2 - Cooktop & Case Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1454 | Cooktop Wh |
|
- | |||||
| 1 | WB62X1457 | Cooktop Ha |
|
- | |||||
| 1 | WB62X1458 | Cooktop Ad |
|
- | |||||
| 8 | WB24X108 | Switch, Latch Release |
|
- | |||||
| 14 | WB2X3179 | Sleeve (long) |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6937 | Sleeve |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 15 | WB3X400 | Knob Thermostat |
|
- | |||||
| 22 | WB7X1139 | Trim & Deflector |
|
- | |||||
| 51 | WB2X1409 | Sleeve Conduit |
|
- | |||||
| 51 | WB2X3061 | Clamp Conduit |
|
- | |||||
| 58 | WB1X194 | Thumb Screw |
|
- | |||||
| 107 | WB7X558 | End Cap |
|
- | |||||
| 123 | WB2X2100 | Pad End Cap |
|
- | |||||
| 124 | WB2X2051 | Bracket Latch Switch |
|
- | |||||
| 125 | WB7X559 | Trim Top |
|
- | |||||
| 126 | WB1X186 | Nut Tee |
|
- | |||||
| 127 | WB1X187 | Speednut |
|
- | |||||
| 129 | WB7X6785 | Trim & Insert Asm |
|
- | |||||
| 130 | WB2X2092 | Bracket Switch Oven |
|
- | |||||
| 132 | WB2X3344 | Gasket |
|
- | |||||
| 133 | WB2X3345 | Barrier |
|
- | |||||
| 150 | WB30X359 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 152 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 153 | WB2X574 | Clip Insulator |
|
- | |||||
| 154 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 155 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 164 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 177 | WB2X995 | Clip Lead |
|
- | |||||
| 248 | WB1X500 | Terminal Screw |
|
- | |||||
| 254 | WB38X76 | Vent Asm |
|
- | |||||
| 260 | WB10X158 | Hinge Lever Rh & Lh |
|
- | |||||
| 261 | WB10X154 | Support Hinge Rh |
|
- | |||||
| 261 | WB10X155 | Support Hinge Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 268 | WB29X54 | Smoke Eliminator Asm |
|
- | |||||
| 269 | WB2X3388 | Insulator Terminal |
|
- | |||||
| 271 | WB2X818 | Cover Vent |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 281 | WB2X3466 | Guard Lamp |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 290 | WB24X199 | Switch Thermal Fan |
|
- | |||||
| 313 | WB26X5052 | Motor, Fan |
|
- | |||||
| 314 | WB2X2285 | Blade Fan |
|
- | |||||
| 520 | WB2X1125 | Plug Button Cap Tube |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tubeoven |
|
- | |||||
| 520 | WB2X2116 | Insulation |
|
- | |||||
| 520 | WB53X5104 | Oven Liner |
|
- | |||||
| 520 | WB2X1132 | Clip Cap Tube Upper Oven |
|
- | |||||
| 521 | WB9X88 | Hook Package |
|
- | |||||
| 522 | WB2X7656 | Clip Trim |
|
- | |||||
| 523 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 527 | WB44X207 | Mullion Unit |
|
- | |||||
| 528 | WB48X82 | Rack Oven |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 538 | WB2X3452 | Terminal Insulator |
|
- | |||||
| 650 | UB323 | Bake Unit 208/240v (Replaces: WB44X200) |
|
Immediately | $ 41.80 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5035 | Latch |
|
- | |||||
| 700 | WB2X6912 | Barrier Latch Sw Low Ov |
|
- | |||||
| 701 | WB15X97 | Handle Latch |
|
- | |||||
| 702 | WB3X5681 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X3157 | Channel Latch |
|
- | |||||
| 705 | WB2X3158 | Channel Locking |
|
- | |||||
| 706 | WB2X3159 | Locking Pawl Asm |
|
- | |||||
| 707 | WB2X7301 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 708 | WB2X3147 | Barrier |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 829 | WB2X190 | Clip Spring |
|
- | |||||
| 1645 | WB2X7006 | Clamp Harness |
|
- | |||||
| 2002 | WB56X1327 | Frame |
|
- | |||||
| 2007 | WB7X636 | Trim Bottom |
|
- | |||||
| 2008 | WB2X3230 | Cover Roto & Meat Meter |
|
- | |||||
| 2011 | WB2X3425 | Support Trim |
|
- | |||||
| 2011 | WB2X2082 | Bracket Trim |
|
- | |||||
| 2018 | WB2X2401 | Channel Side |
|
- | |||||
| 2021 | WB59X164 | Side Inner |
|
- | |||||
| 2023 | WB55X302 | Guard Bottom |
|
- | |||||
| 2024 | WB49X327 | Back Asm |
|
- | |||||
| 2025 | WB2X2845 | Cover Light |
|
- | |||||
| 2026 | WB2X2842 | Plate Adapter |
|
- | |||||
| 2027 | WB2X3156 | Guard Asm |
|
- | |||||
| 2028 | WB49X268 | Guard Terminal |
|
- | |||||
| 2029 | WB49X223 | Cap Terminal Guard |
|
- | |||||
| 2030 | WB7X1136 | Cap Bottom Lh |
|
- | |||||
| 2030 | WB7X1135 | Trim Side Lh |
|
- | |||||
| 2030 | WB7X1134 | Trim Side Rh |
|
- | |||||
| 2030 | WB7X1137 | Cap Top |
|
- | |||||
| 2030 | WB7X1156 | Cap Bottom Rh |
|
- | |||||
| 2032 | WB49X267 | Partition Fan |
|
- | |||||
| 2033 | WB49X382 | Extension Side |
|
- | |||||
| 2040 | WB2X3305 | Sleeve Roller |
|
- | |||||
| 2041 | WB2X3304 | Roller |
|
- | |||||
| 2043 | WB2X3423 | Gusset |
|
- | |||||
| 2047 | WB2X2846 | Bracket Fan |
|
- | |||||
| 2049 | WB7X1132 | Trim Filler Rh |
|
- | |||||
| 2049 | WB7X1133 | Trim Filler Lh |
|
- | |||||
| 2052 | WB49X269 | Guard Fan |
|
- | |||||
| 2053 | WB2X3267 | Barrier Instrument |
|
- | |||||
| 2054 | WB55X409 | Insulation Guard Top |
|
- | |||||
| 2055 | WB2X1448 | Cover |
|
- | |||||
| 2056 | WB49X360 | Guard Wire |
|
- | |||||
| 2072 | WB49X356 | Channel Air |
|
- | |||||
| 32767 | WB2X1659 | Speednut |
|
- |
