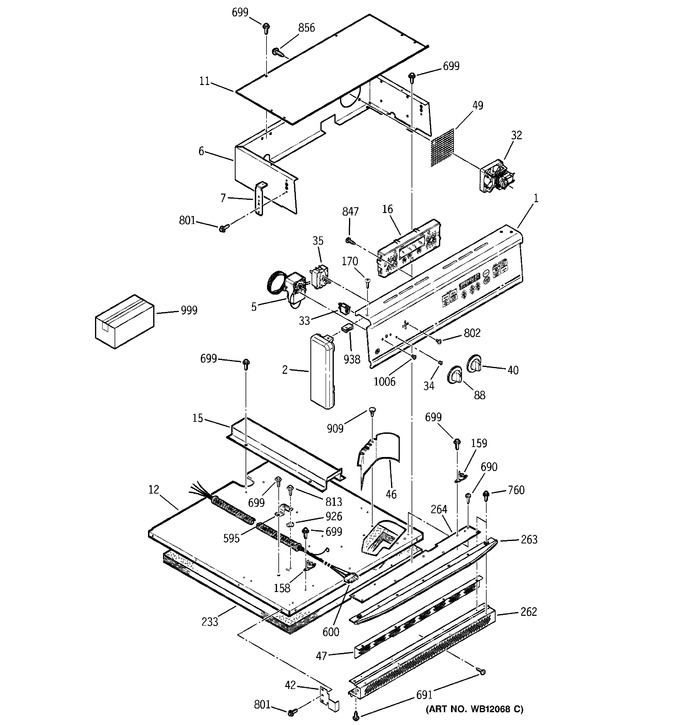

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Body Parts
3 - Upper Door
4 - Door
5 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36T10077 | Control Panel W/oly |
|
- | |||||
| 2 | WB36T10065 | End Cap Lt-blk |
|
- | |||||
| 2 | WB36T10064 | End Cap Rt-blk |
|
- | |||||
| 5 | WB20K5011 | Thermostat |
|
- | |||||
| 6 | WB37K5041 | Control Housing |
|
- | |||||
| 7 | WB2K5406 | Control Panel Bracket |
|
- | |||||
| 11 | WB37K5040 | Control Housing Top |
|
- | |||||
| 12 | WB63K5120 | Cabinet Top |
|
- | |||||
| 15 | WB2X9665 | Wire Cover |
|
- | |||||
| 16 | WB27T10270 | Oven Control |
|
- | |||||
| 32 | WB26K5072 | Fan |
|
- | |||||
| 33 | WB25X92 | Indicator Light-top Elem |
|
- | |||||
| 34 | WD1X1444 | Lens (red) |
|
- | |||||
| 35 | WB24K5040 | Selector Switch |
|
- | |||||
| 40 | WB3K5254 | Selector Switch Knob-blk |
|
- | |||||
| 42 | WB34K5249 | Heat Shield |
|
- | |||||
| 46 | WB34K5099 | Wire Shield |
|
- | |||||
| 47 | WB38K5058 | Vent Barrier |
|
- | |||||
| 49 | WB7X5016 | Cont Housing Screen |
|
- | |||||
| 88 | WB3K5253 | Thermostat Knob-blk |
|
- | |||||
| 158 | WB24K5045 | Limit Switch-to Cab Top |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 170 | WB1K60 | Screw 8-18 (bk) 1/2 S |
|
- | |||||
| 262 | WB7K5496 | I-brow Trim-white |
|
- | |||||
| 262 | WB7K5263 | Trim Side (rt Or Lt)blk |
|
- | |||||
| 263 | WB7K5123 | Trim-i-brow Blk-center |
|
- | |||||
| 263 | WB7K5478 | I-brow Trim-blk |
|
- | |||||
| 264 | WB7K5121 | Extension Vent Trim |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 600 | WB18K5225 | Conduit Wire Asm |
|
- | |||||
| 690 | WB1K5167 | Screw |
|
- | |||||
| 691 | WB1K5162 | Screw-black |
|
- | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 802 | WB1K5123 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 847 | WB1X1180 | Screw-black |
|
- | |||||
| 856 | WG02F04011 | Screw Tc10-32x.250hexni (Replaces: WB1X1293) |
|
$ 3.57 | |||||
| 909 | WB1X1173 | Rivet |
|
- | |||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 938 | WB1K5209 | Clip |
|
- | |||||
| 999 | 31-10118 | Installation Instruction |
|
- | |||||
| 999 | 31-13910 | Manual Mini & Wd Asm |
|
- | |||||
| 999 | WB18T10032 | Dr Sw Wire Harness |
|
- | |||||
| 999 | WB18K5645 | Lock Motor Wire Harness |
|
- | |||||
| 999 | WB18K5646 | Main Wire Harness |
|
- | |||||
| 999 | 49-80057 | Manual Use & Care |
|
- | |||||
| 1006 | WB1X521 | Scr 8/32 Tf Flr 5/16 S |
|
- |
