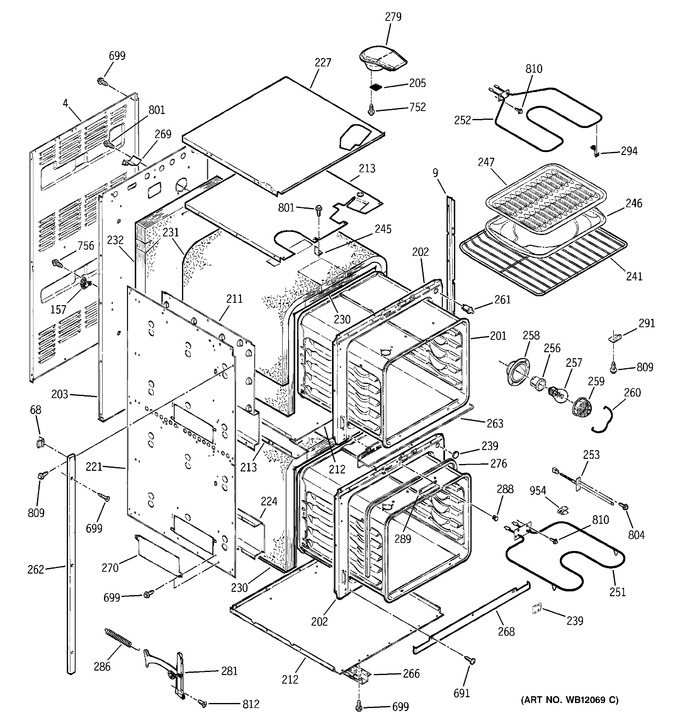

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Body Parts
3 - Upper Door
4 - Door
5 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WB37K5017 | Cabinet Back |
|
- | |||||
| 9 | WB63M7 | Raceway |
|
- | |||||
| 68 | WB2M40 | Frt Trim Spacer |
|
- | |||||
| 157 | WB24K5046 | Limit Switch |
|
- | |||||
| 201 | WB63T10012 | Oven Body |
|
- | |||||
| 202 | WB63T10013 | Front Frame |
|
- | |||||
| 203 | WB63K5113 | Main Back |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 211 | WB2K5180 | Ins Ov Side Retainer |
|
- | |||||
| 212 | WB63K5116 | Cabinet Bottom-lower |
|
- | |||||
| 212 | WB2K5171 | Ov Btm Ins Retainer-upp |
|
- | |||||
| 213 | WB2K5174 | Ov Top Ins Retainer-lo |
|
- | |||||
| 213 | WB2K5256 | Top Insulation Retnr-upp |
|
- | |||||
| 221 | WB63K5112 | Cabinet Side |
|
- | |||||
| 224 | WB2K5172 | Ins Dr Spring Retainer |
|
- | |||||
| 227 | WB2K5173 | Ins Cabinet Top Retainer |
|
- | |||||
| 230 | WB35K5041 | Insulation Wrpr Inr |
|
- | |||||
| 230 | WB35K5066 | Cabinet Top Insulation |
|
- | |||||
| 230 | WB35K5048 | Oven Insulation Inner |
|
- | |||||
| 231 | WB35K5068 | Oven Insulation Outer |
|
- | |||||
| 232 | WB35K5067 | Insulation-back Btm-lowr |
|
- | |||||
| 232 | WB35K5057 | Insulation-back Btm |
|
- | |||||
| 239 | WB2X9189 | Plug Button-rectangular |
|
- | |||||
| 239 | WB2X9587 | Plug Button-round |
|
- | |||||
| 241 | WB48X218 | Oven Rack |
|
- | |||||
| 245 | WB2M30 | Scroll Bracket |
|
- | |||||
| 246 | WB48T10006 | Broiler Pan |
|
- | |||||
| 247 | WB48T10005 | Broiler Pan Grid |
|
- | |||||
| 251 | WB44K5013 | Bake Element |
|
$ 113.30 | |||||
| 251 | WB44T10007 | Element Bake (2650w) |
|
- | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 103.82 | |||||
| 253 | WB21X5347 | Sensor Asm |
|
- | |||||
| 256 | WB8X303 | Ov Lamp Holder |
|
- | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | 318394803 | Jamb Switch (Replaces: WB24K5061) |
|
Immediately | $ 44.23 | ||||
| 262 | WB7K5263 | Trim Side (rt Or Lt)blk |
|
- | |||||
| 262 | WB7K5496 | I-brow Trim-white |
|
- | |||||
| 263 | WB7K5123 | Trim-i-brow Blk-center |
|
- | |||||
| 263 | WB7K5478 | I-brow Trim-blk |
|
- | |||||
| 266 | WB2X9634 | Bottom Channel |
|
- | |||||
| 268 | WB7M12 | Lo Frt Frame Trim- Blk |
|
- | |||||
| 269 | WB2K5164 | Cup Light Support |
|
- | |||||
| 270 | WB2X9642 | Cover Plate |
|
- | |||||
| 276 | WB32K5050 | Door Seal |
|
- | |||||
| 279 | WB38K5028 | Box Vent Asm |
|
- | |||||
| 281 | WB14K5007 | Ov Dr Hinge-lt |
|
- | |||||
| 281 | WB14K5006 | Ov Dr Hinge-rt |
|
- | |||||
| 286 | WB9K5017 | Oven Door Spring |
|
- | |||||
| 286 | WB9K5018 | Oven Door Spring |
|
- | |||||
| 288 | WB3K5043 | Plug Button |
|
- | |||||
| 289 | WB34K5068 | Latch Opening Cover |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 691 | WB1K5162 | Screw-black |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 752 | WG02A00488 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 756 | WB1K5073 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 812 | WB1K5191 | Screw Flat Zinc |
|
- | |||||
| 954 | WB1K5133 | Tstat Bulb Ret Clip |
|
- |
