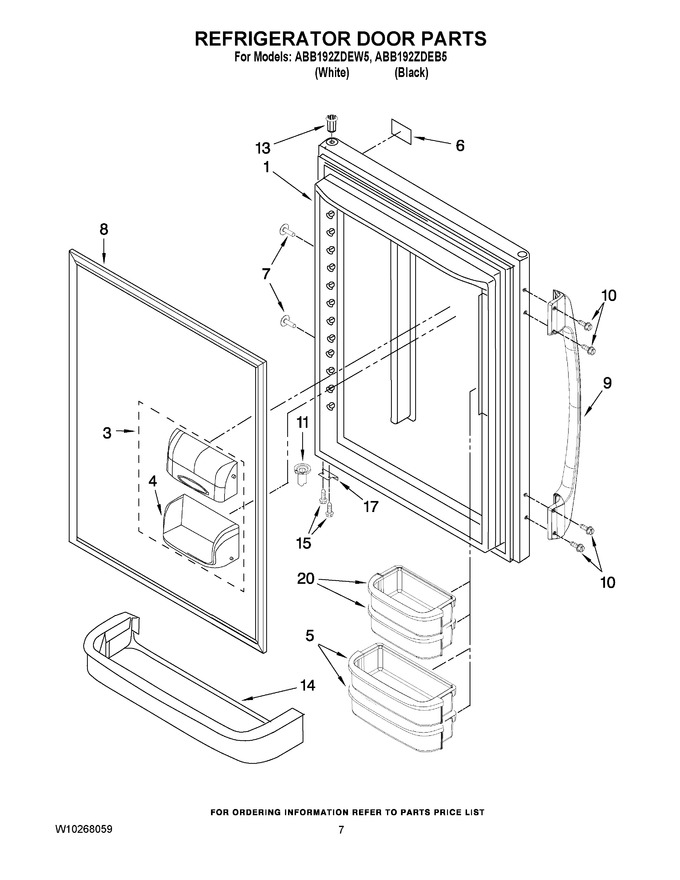

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658529WQ		Refrigerator Door (w/ Insulation) (white)				$ 439.53
1	12658529BQ		Refrigerator Door (w/ Insulation) (black)				$ 443.92
3	WP12744905		Door, Compartment   (Replaces: 12744905)				$ 108.56
4	WP67001279		Tray, Dairy   (Replaces: 12369502)			Immediately	$ 83.82
5	WP67001021		Bucket (medium)   (Replaces: 12557204V)				$ 80.90
6	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
7	12991105		Screw, Handle (black)		Appelez-nous	-
7	12991103		Screw, Handle (white)				$ 12.03
8	WPW10436245		Gasket, Door Magnetic (black)   (Replaces: W10164031)				$ 345.10
8	WPW10443309		Gasket, Door Magnetic (white)   (Replaces: W10164030)			Immediately	$ 347.85
9	12845806B		Handle, Door (black)		Appelez-nous	-
9	12845806W		Handle, Door (white)		Appelez-nous	-
10	12992802		Screw		Appelez-nous	-
11	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
11	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.76
13	WP67004977		Bushing (white)   (Replaces: 10961006W)				$ 7.81
13	67004978		Bushing (black)   (Replaces: 10961006B)				$ 21.05
14	67001139		Retainer, Door   (Replaces: 12557904)			Immediately	$ 99.80
15	WP98165		Screw   (Replaces: 12990504)				$ 8.00
17	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.05
17	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 65.99
20	67001141		Bucket (2) Small   (Replaces: 12557202)			Immediately	$ 75.15
