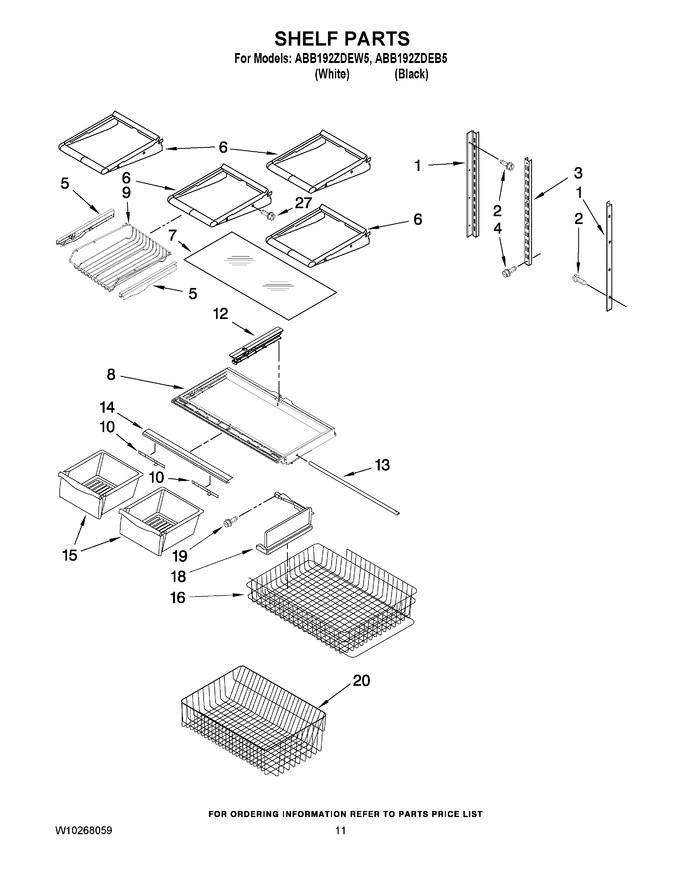

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12710606		Ladder, Side		Appelez-nous	-
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
3	67001073		Ladder, Center   (Replaces: 12435807)				$ 56.89
4	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.79
5	WP67001054		Glide, Rack (left)   (Replaces: 12656601)			Immediately	$ 8.82
5	WP67001053		Glide, Rack (right)   (Replaces: 12656602)			Immediately	$ 9.24
6	W11402522		Shelf, Sta (4)   (Replaces: 12463608)				$ 203.51
7	WP67006877		Glass, Crisper (2)   (Replaces: 12204823)			Immediately	$ 209.75
8	WPW10671240		Frame-crisper (2)   (Replaces: 12530901)			Immediately	$ 138.10
9	12503804		Rack, Can		Appelez-nous	-
10	WP67005864		Slide-crisper   (Replaces: 12530805)			Immediately	$ 8.20
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 118.46
13	WP12227302WD		Brace, (2) Crisper Frame   (Replaces: 12227302WD)				$ 111.60
14	W10231337		Trim, Crisper				$ 47.70
15	W10833528		Pan, Crisper (2)   (Replaces: 12531305)			Immediately	$ 139.95
16	12694606		Shelf, Glide (upper)		Appelez-nous	-
18	12693802		Divider, Upper Basket		Appelez-nous	-
19	12990601		Screw		Appelez-nous	-
20	WP12754803		Basket, Freezer (lower)   (Replaces: W10143565)				$ 267.02
27	W10854958		Screw   (Replaces: 12990302)				$ 7.90
