SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

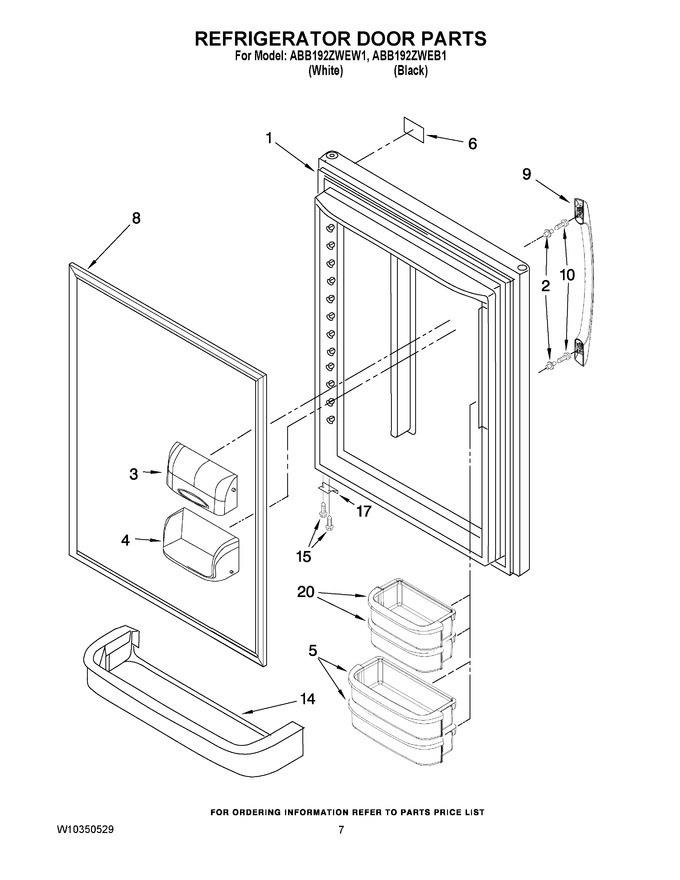

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658581WQ		Refrigerator Door (w/ Insulation) (white)		Appelez-nous	-
1	12658581BQ		Refrigerator Door (w/ Insulation) (black)		Appelez-nous	-
2	WP67006113		Mount-handle   (Replaces: 13001201)			Immediately	$ 11.96
3	WP67003637		Door, Compartment   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WP67001021		Bucket (2) (medium)   (Replaces: 12557204V)				$ 80.90
6	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
8	WPW10436245		Gasket, Door Magnetic (black)   (Replaces: W10164031)				$ 345.10
8	WPW10443309		Gasket, Door Magnetic (white)   (Replaces: W10164030)			Immediately	$ 347.85
9	13004801B		Handle, Door (black)				$ 83.66
9	13004801W		Handle, Door (white)				$ 85.34
10	W10290759		Screw				$ 5.83
14	67001139		Retainer, Door   (Replaces: 12557904)			Immediately	$ 99.80
15	WP98165		Screw   (Replaces: 12990504)				$ 8.00
17	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.05
17	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 65.99
20	67001141		Bucket (2) (small)   (Replaces: 12557202)			Immediately	$ 75.15

    View Diagram in Separate Window       Print Part List
