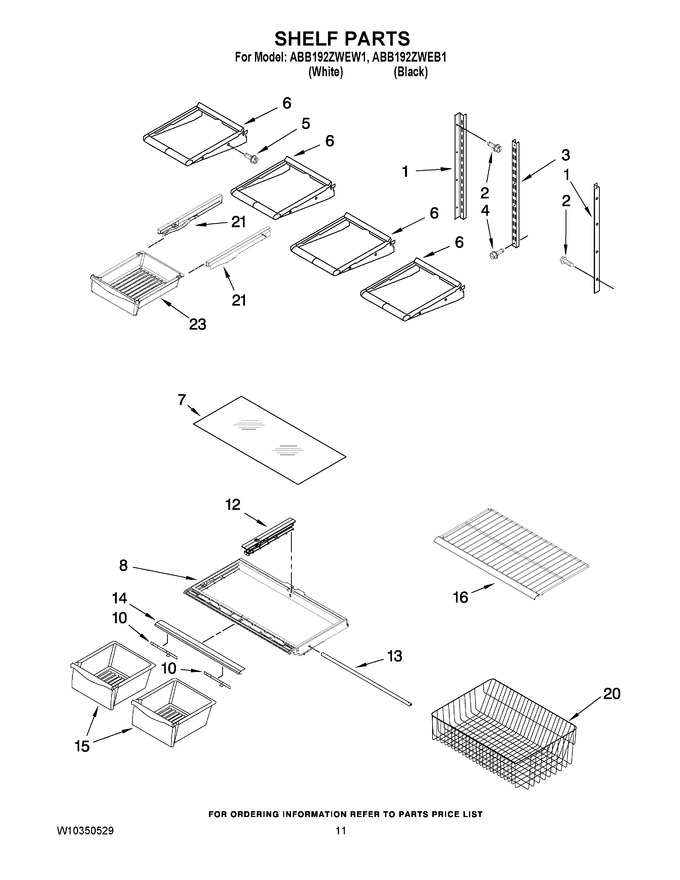

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251970 | Ladder, Side |
|
$ 28.47 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 4 | W10215666 | Screw (2) |
|
$ 9.08 | |||||
| 5 | W11233072 | Screw (Replaces: 12990302V) |
|
Immediately | $ 14.02 | ||||
| 6 | W11402522 | Shelf, Stationary (Replaces: 12463608) |
|
$ 203.51 | |||||
| 7 | WP67006877 | Glass, Crisper (Replaces: 12204823N) |
|
Immediately | $ 209.75 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: 12530901SP) |
|
Immediately | $ 138.10 | ||||
| 10 | WP67005864 | Slide, Humidity (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 12 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701N) |
|
Immediately | $ 112.82 | ||||
| 13 | WP12227302WD | Brace, Crisper Frame (Replaces: 12227302WD) |
|
$ 106.29 | |||||
| 14 | W10231337 | Trim, Crisper |
|
$ 47.70 | |||||
| 15 | W10833528 | Pan, Crisper (2) (Replaces: 12531305) |
|
Immediately | $ 139.95 | ||||
| 16 | 12476801 | Shelf, Freezer (upper) |
|
$ 136.27 | |||||
| 20 | WP12754803 | Basket, Freezer (lower) (Replaces: 12754803) |
|
$ 254.30 | |||||
| 21 | WP67001053 | Glide (right) (Replaces: 12656602V) |
|
Immediately | $ 9.24 | ||||
| 21 | WP67001054 | Glide (left) (Replaces: 12656601V) |
|
Immediately | $ 8.40 | ||||
| 23 | WP67001308 | Pan, Deli (Replaces: 12656504V) |
|
Immediately | $ 138.10 |
